All CORBIN RUSSWIN Products

Corbin Russwin CLX3310-102D Cylindrical Lock, Passage Function, Decorative Lever, Non-Keyed

  • SKU: CLX3310102D626
$348.33/ea
Available (2 Weeks)
2 Weeks Lead Time

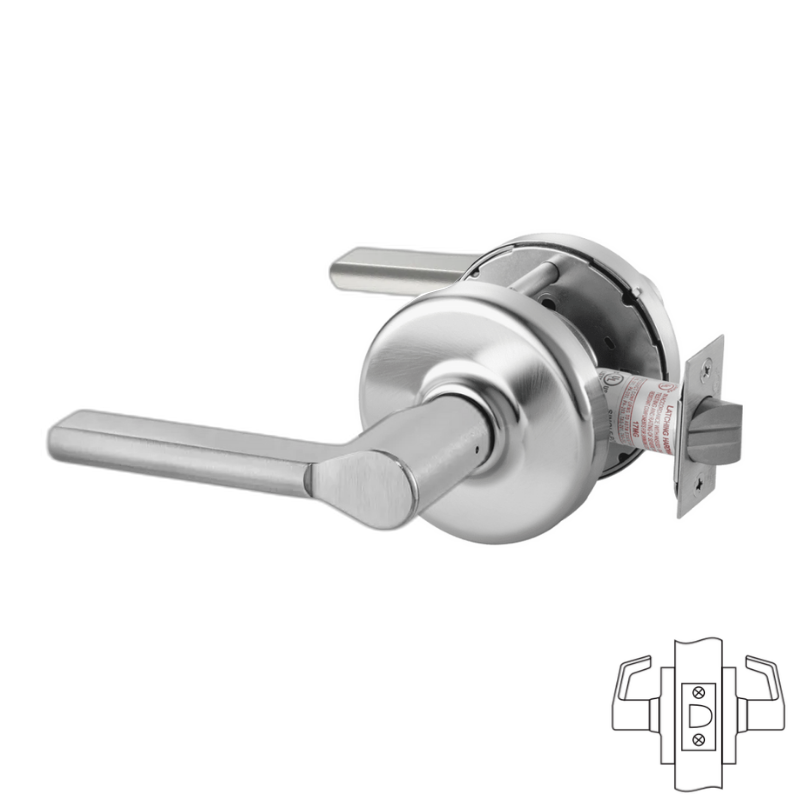

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3310-102D Passage Function Cylindrical Lever Lockset, Georgia 102D Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

Corbin Russwin's CLX3310-102D Cylindrical Lock offers a non-keyed passage function with a Georgia 102D decorative lever. This Grade 1, non-handed lockset features a 2-3/4" backset and a 4-7/8" strike, making it a durable and reliable choice for any commercial setting.

Function Passage or Closet:

  • Latchbolt by a lever on either side
  • Both levers are always free
Manufacturer Corbin Russwin
SKU CLX3310-102D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 10 - Passage or Closet
Function Family Passage
ANSI Function F75 - Passage
Lever/Knob Design 102 - Georgia Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
