All CORBIN RUSSWIN Products

Corbin Russwin CLX3310-AZD Cylindrical Lock, Passage Function, Non-Keyed

  • SKU: CLX3310AZD626
$365.75/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

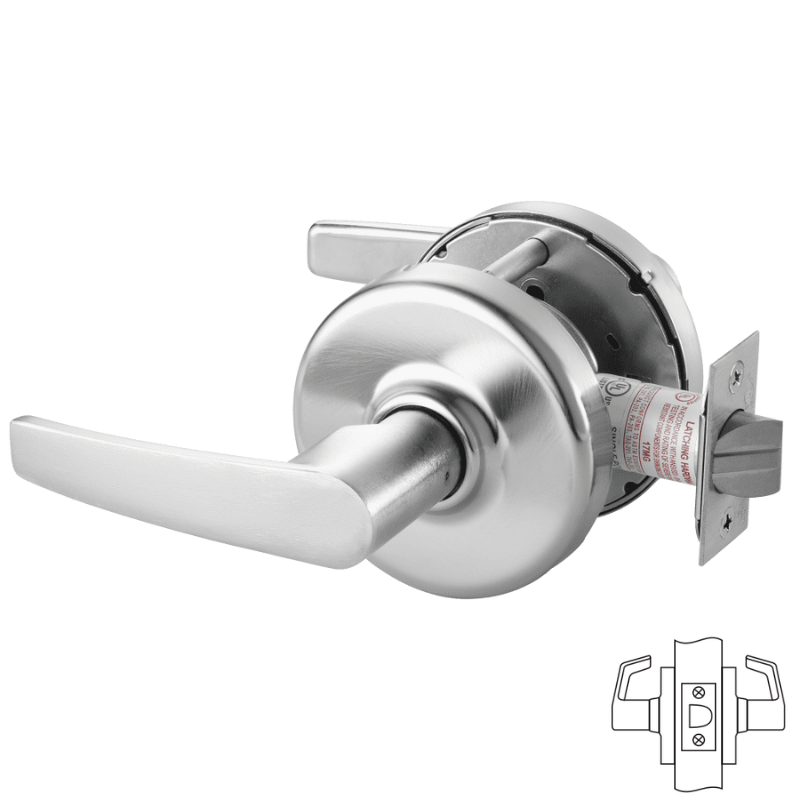

Corbin Russwin CLX3310-AZD Passage Function Cylindrical Lever Lockset, Armstrong Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3310-AZD is a Grade 1, non-handed cylindrical lock with a passage function. It features an Armstrong lever and a 2-3/4" backset. The lock is equipped with a 4-7/8" strike and is non-keyed for added convenience.

Function Passage or Closet:

  • Latchbolt by a lever on either side
  • Both levers are always free
Manufacturer Corbin Russwin
SKU CLX3310-AZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 10 - Passage or Closet
Function Family Passage
ANSI Function F75 - Passage
Lever/Knob Design AZ - Armstrong Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
