Corbin Russwin CLX3310-NZD Cylindrical Lock, Passage Function, Non-Keyed

  • SKU: CLX3310NZD626
$348.33/ea
In Stock (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

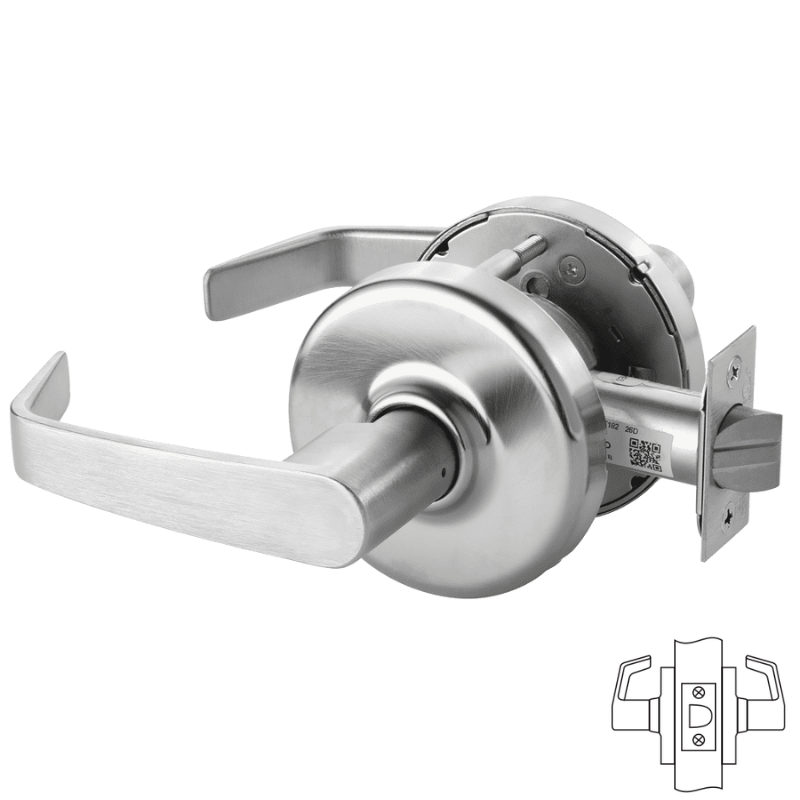

Corbin Russwin CLX3310-NZD Passage Function Cylindrical Lever Lockset, Newport Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3310-NZD Cylindrical Lock features a passage function and a non-keyed design, making it ideal for use in both commercial and residential settings. With a Newport lever and a 2-3/4" backset, this grade 1 lock offers secure and durable performance. It also has a 4-7/8" strike and is non-handed for versatile installation options.

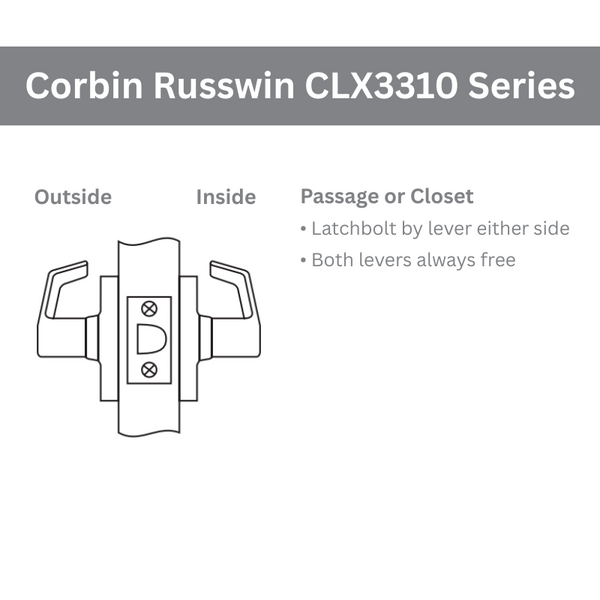

Function Passage or Closet:

  • Latchbolt by a lever on either side
  • Both levers are always free
    Manufacturer Corbin Russwin
    SKU CLX3310-NZD
    Grade Grade 1
    Installation Commercial
    Origin United States
    Unit of Measure Each
    Base Material Brass, Bronze
    UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
    ANSI Number F75
    Limited Warranty 10 Year Limited Warranty
    Fire Rated 3 Hours {A}
    Burglar Rated No
    Function 10 - Passage or Closet
    Function Family Passage
    ANSI Function F75 - Passage
    Lever/Knob Design NZ - Newport Lever
    Lever/Knob Design Family Straight Return Lever
    Rose/Escutcheon Design D Rose
    Rose/Escutcheon Dimensions 3-1/2"
    Cylinder Type Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/4" to 2"
    Std. Latch Number 867F20
    Std. Latch Type Springlatch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 1"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number SA114
    Std. Strike Type ANSI Curved Lip Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock
