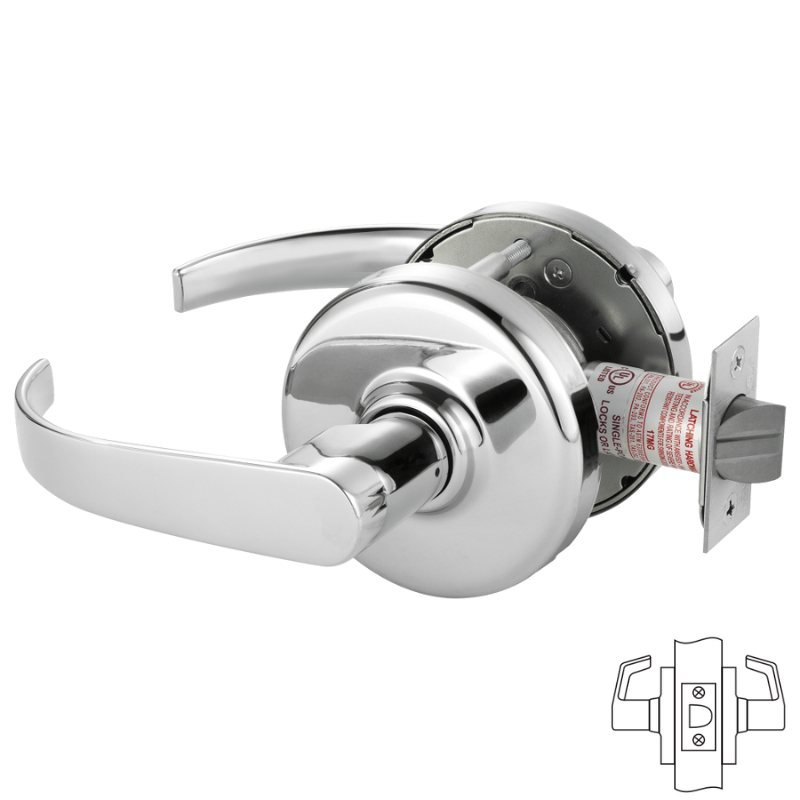

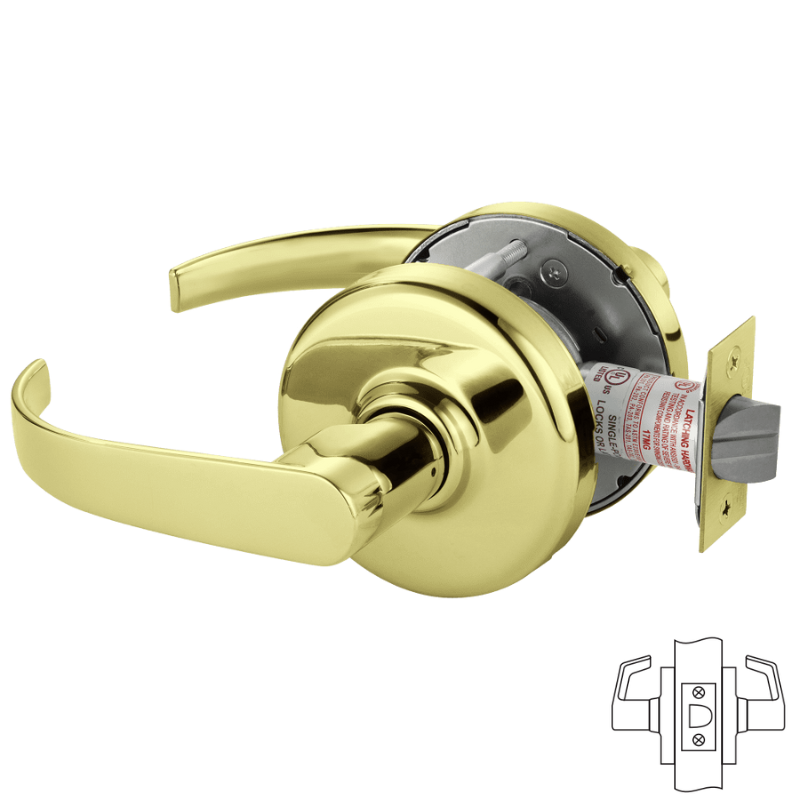

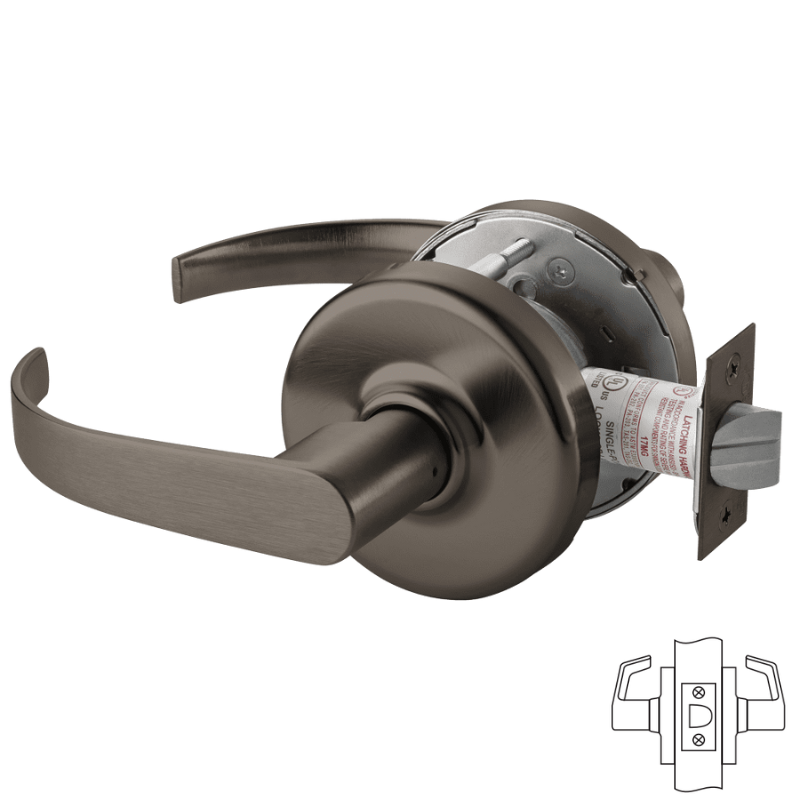

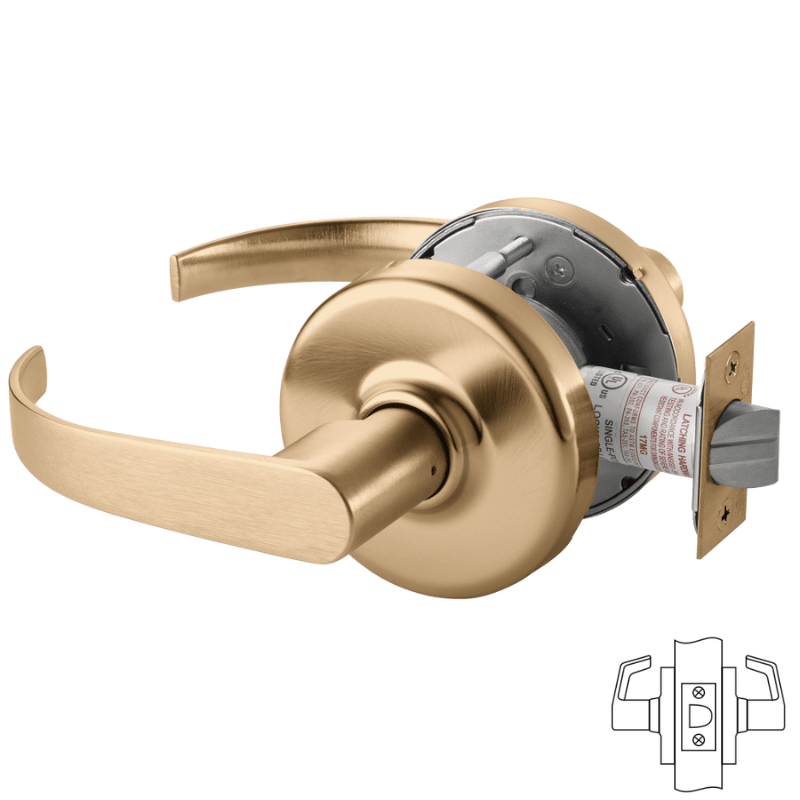

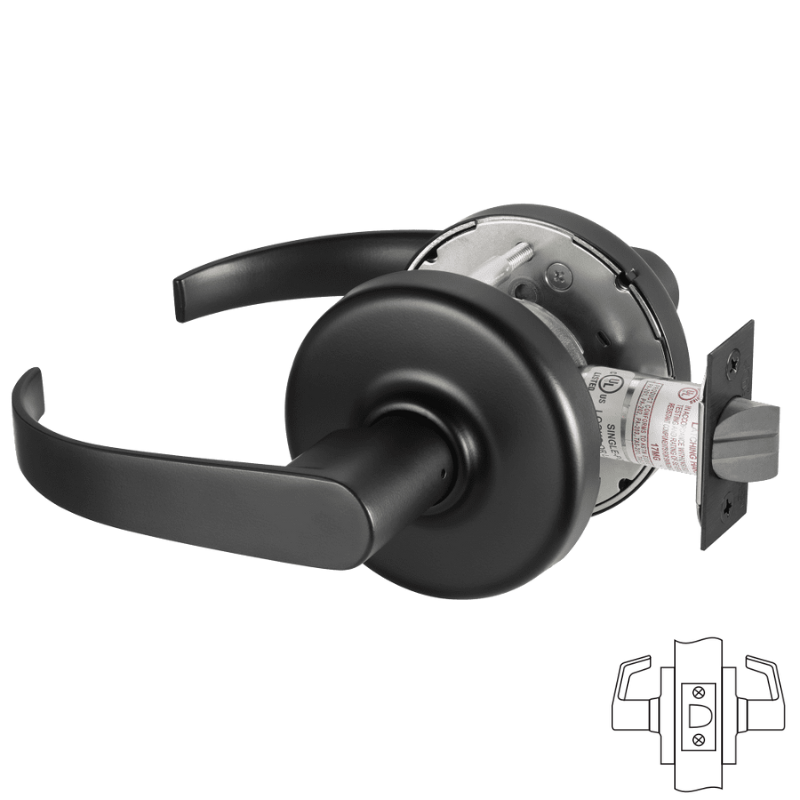

Corbin Russwin CLX3310-PZD Cylindrical Lock, Passage Function, Non-Keyed

  • SKU: CLX3310PZD626
Corbin_Russwin_CLX3310-PZD-626
CLX3310Series
Corbin_Russwin_CLX3310-PZD-605
Corbin_Russwin_CLX3310-PZD-606
Corbin_Russwin_CLX3310-PZD-612
Corbin_Russwin_CLX3310-PZD-613
Corbin_Russwin_CLX3310-PZD-613E
Corbin_Russwin_CLX3310-PZD-619
Corbin_Russwin_CLX3310-PZD-625
Corbin_Russwin_CLX3310-PZD-BSP
Corbin_Russwin_CLX3310-PZD-626
CLX3310Series
Corbin_Russwin_CLX3310-PZD-605
Corbin_Russwin_CLX3310-PZD-606
Corbin_Russwin_CLX3310-PZD-612
Corbin_Russwin_CLX3310-PZD-613
Corbin_Russwin_CLX3310-PZD-613E
Corbin_Russwin_CLX3310-PZD-619
Corbin_Russwin_CLX3310-PZD-625
Corbin_Russwin_CLX3310-PZD-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3310-PZD Cylindrical Lock, Passage Function, Non-Keyed

  • SKU: CLX3310PZD626
$348.33/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3310-PZD Passage Function Cylindrical Lever Lockset, Princeton Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3310-PZD Cylindrical Lock, with a Passage Function and a Non-Keyed design, features a Princeton Lever and a Grade 1 rating, making it suitable for both commercial and residential settings. With a 2-3/4" backset and a 4-7/8" strike, this lock is both secure and convenient to use.

Function Passage or Closet:

  • Latchbolt by a lever on either side
  • Both levers are always free
Manufacturer Corbin Russwin
SKU CLX3310 PZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
ANSI Number F75
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 10 Passage or Closet
Function Family Passage
ANSI Function F75 - Passage
Lever/Knob Design PZ - Priceton Lever
Lever/Knob Design Family Curved Return Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
    Product Cut Sheet
