All CORBIN RUSSWIN Products

Corbin Russwin CLX3320-106D Cylindrical Lock, Privacy Function, Decorative Lever, Non-Keyed

  • SKU: CLX3320106D626
Corbin_Russwin_CLX3320-106D-626
CLX3320Series
Corbin_Russwin_CLX3320-106D-605
Corbin_Russwin_CLX3320-106D-606
Corbin_Russwin_CLX3320-106D-612
Corbin_Russwin_CLX3320-106D-613
Corbin_Russwin_CLX3320-106D-613E
Corbin_Russwin_CLX3320-106D-619
Corbin_Russwin_CLX3320-106D-625
Corbin_Russwin_CLX3320-106D-BSP
Corbin_Russwin_CLX3320-106D-626
CLX3320Series
Corbin_Russwin_CLX3320-106D-605
Corbin_Russwin_CLX3320-106D-606
Corbin_Russwin_CLX3320-106D-612
Corbin_Russwin_CLX3320-106D-613
Corbin_Russwin_CLX3320-106D-613E
Corbin_Russwin_CLX3320-106D-619
Corbin_Russwin_CLX3320-106D-625
Corbin_Russwin_CLX3320-106D-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3320-106D Cylindrical Lock, Privacy Function, Decorative Lever, Non-Keyed

  • SKU: CLX3320106D626
$423.44/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

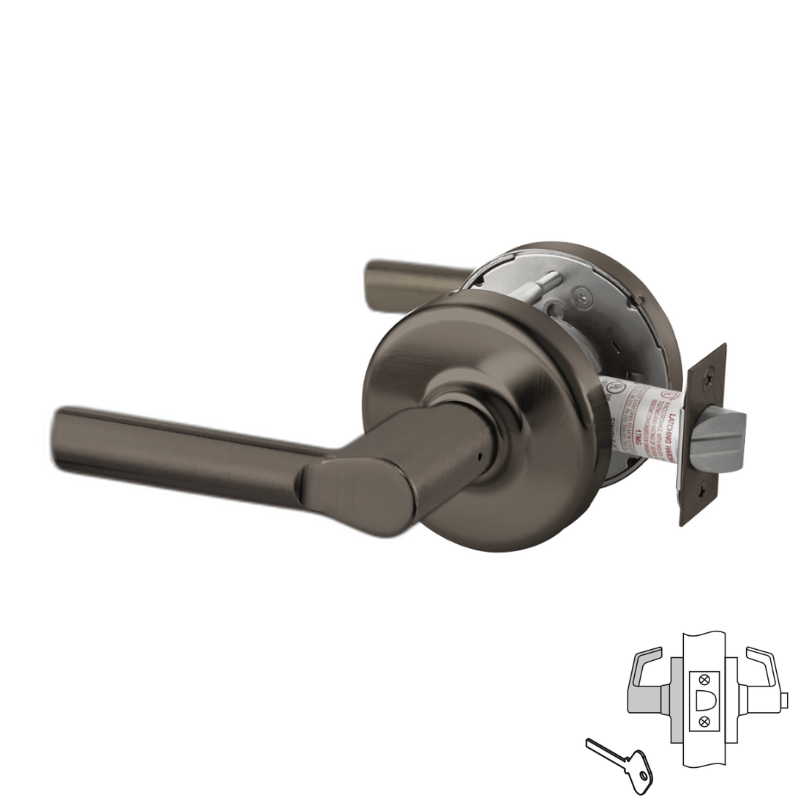

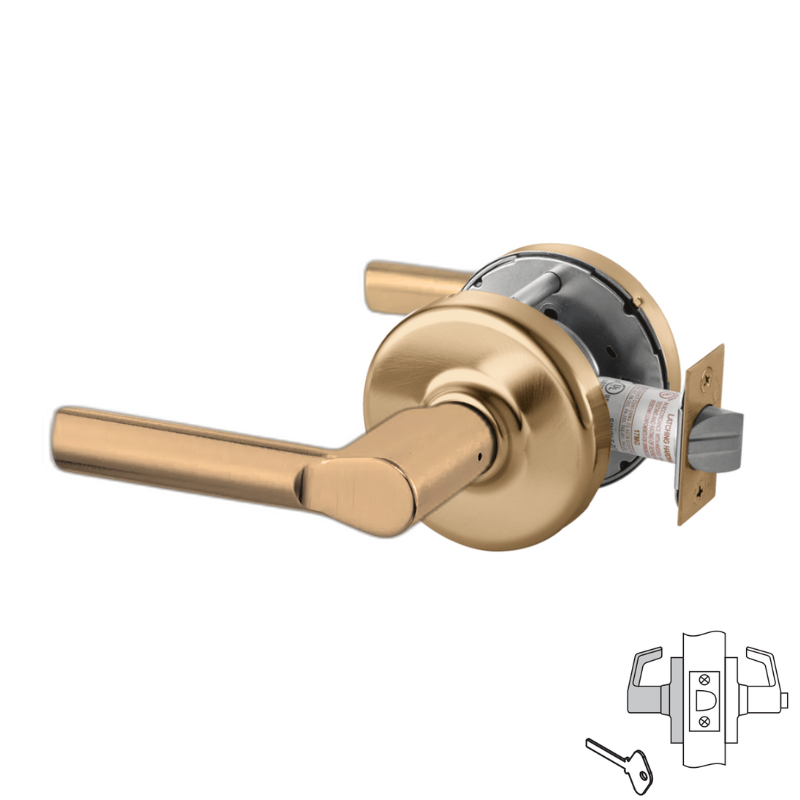

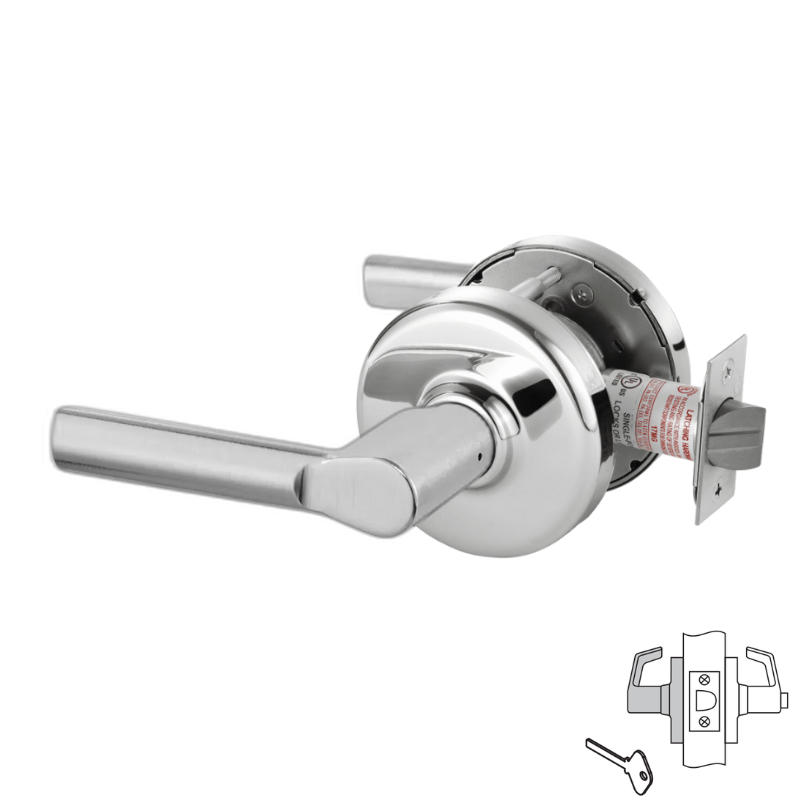

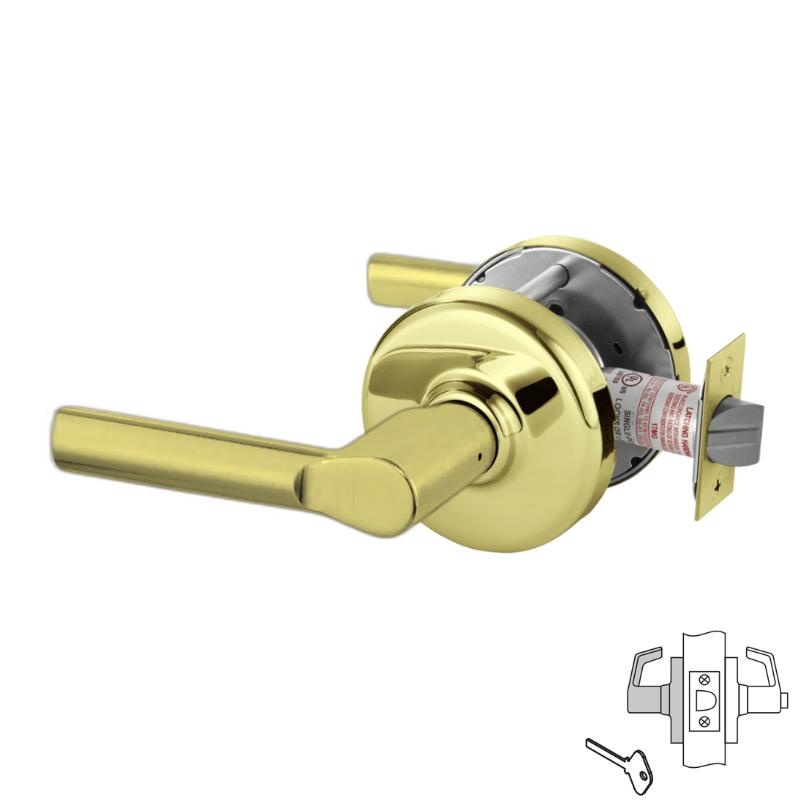

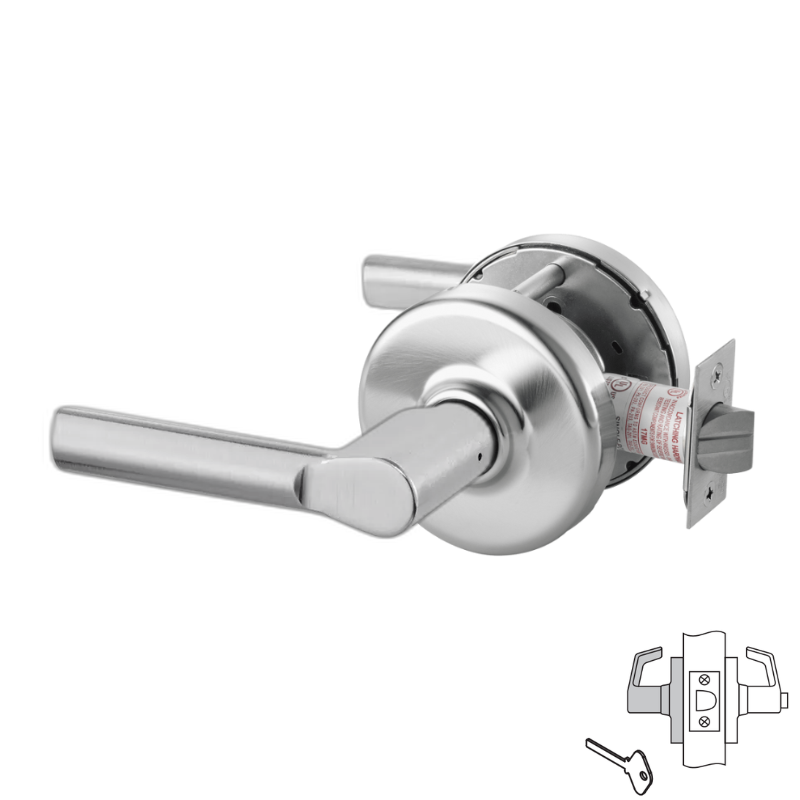

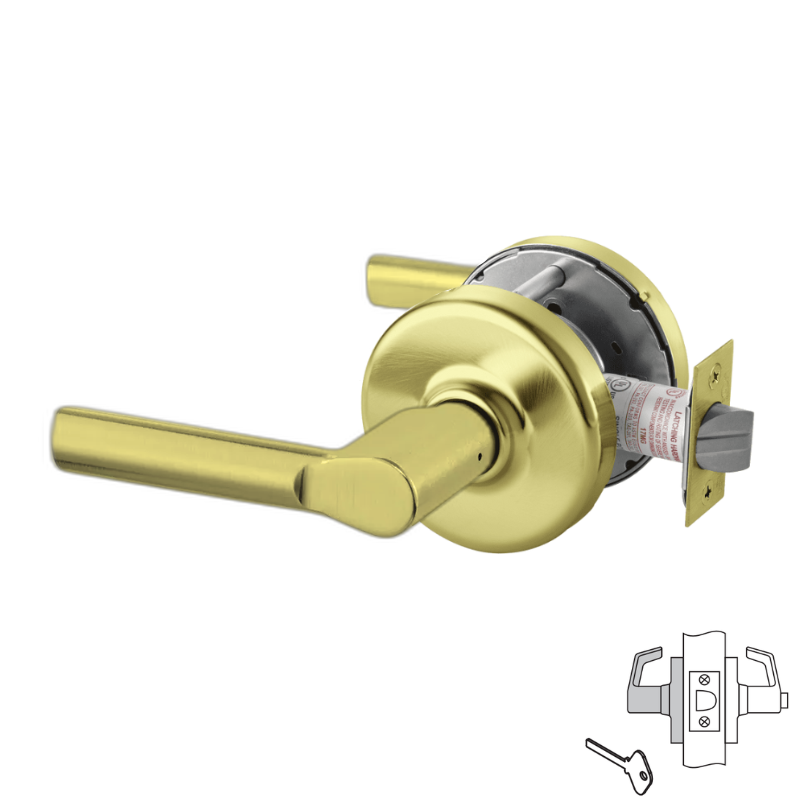

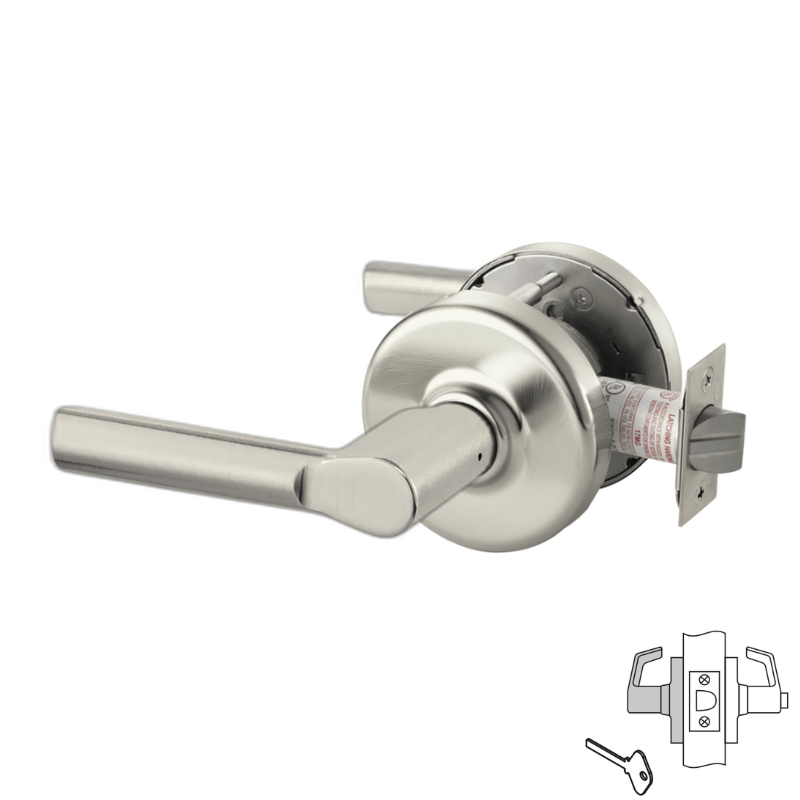

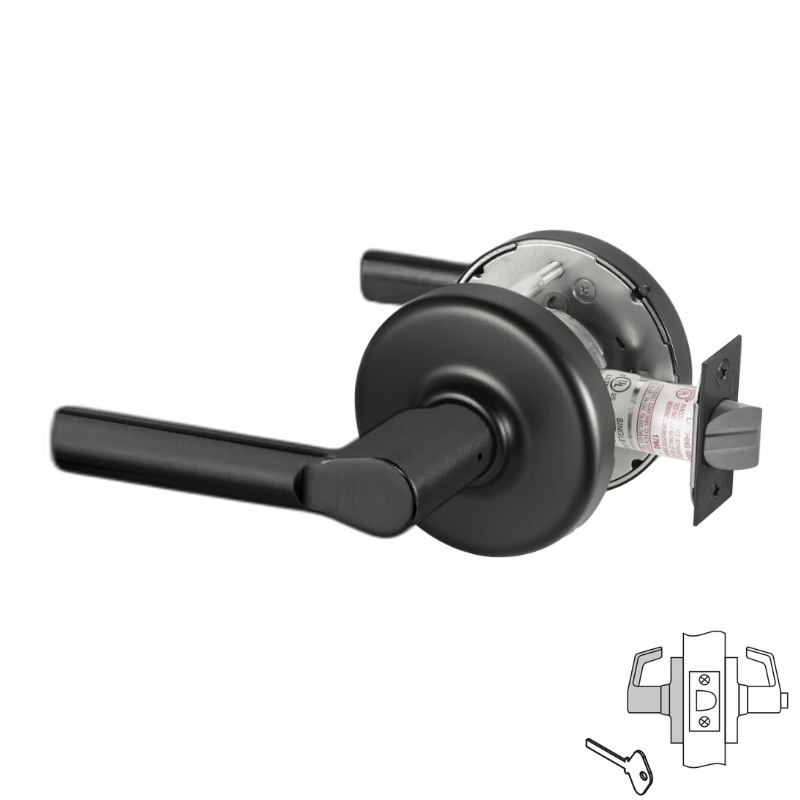

Corbin Russwin CLX3320-106D Privacy Function Cylindrical Lever Lockset, Salvador 106D Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3320-106D is a cylindrical lockset with a privacy function, featuring a decorative Salvador 106D lever. It has a 2-3/4" backset and a 4-7/8" strike, making it a grade 1 lock that is non-keyed and non-handed.

Function Privacy Bedroom or Bathroom:

  • Outside lever locked by push button (lever handle is freewheeling in locked position)
  • Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door
  • Inside lever always free
    Manufacturer Corbin Russwin
    SKU CLX3320-106D
    Grade Grade 1
    Installation Commercial
    Origin United States
    Unit of Measure Each
    Base Material Brass, Bronze
    UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
    Limited Warranty 20 Year Limited Warranty
    Fire Rated 3 Hours {A}
    Burglar Rated No
    Function 20-Privacy Bedroom or Bathroom
    Function Family Privacy
    ANSI Function F76A - Privacy
    Lever/Knob Design 106 - Salvador Lever
    Lever/Knob Design Family Straight Lever
    Rose/Escutcheon Design
    D Rose
    Rose/Escutcheon Dimensions 3-1/2"
    Cylinder Type Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/4" to 2"
    Std. Latch Number 867F20
    Std. Latch Type Springlatch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 1"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number SA114
    Std. Strike Type ANSI Curved Lip Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock

      Product Cut Sheet
