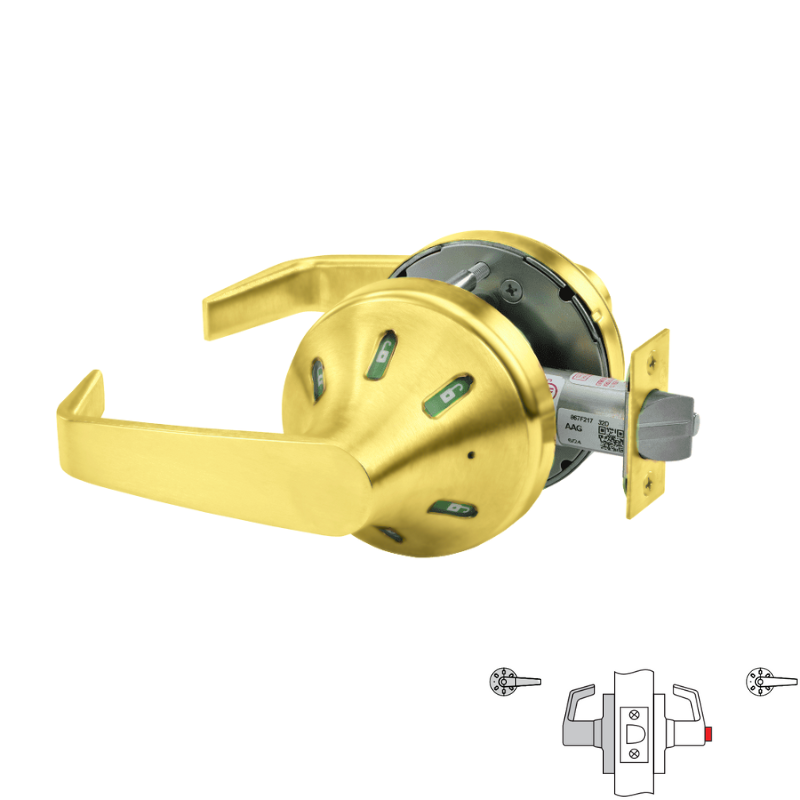

Corbin_Russwin_CLX3320-NVSL-605-V33

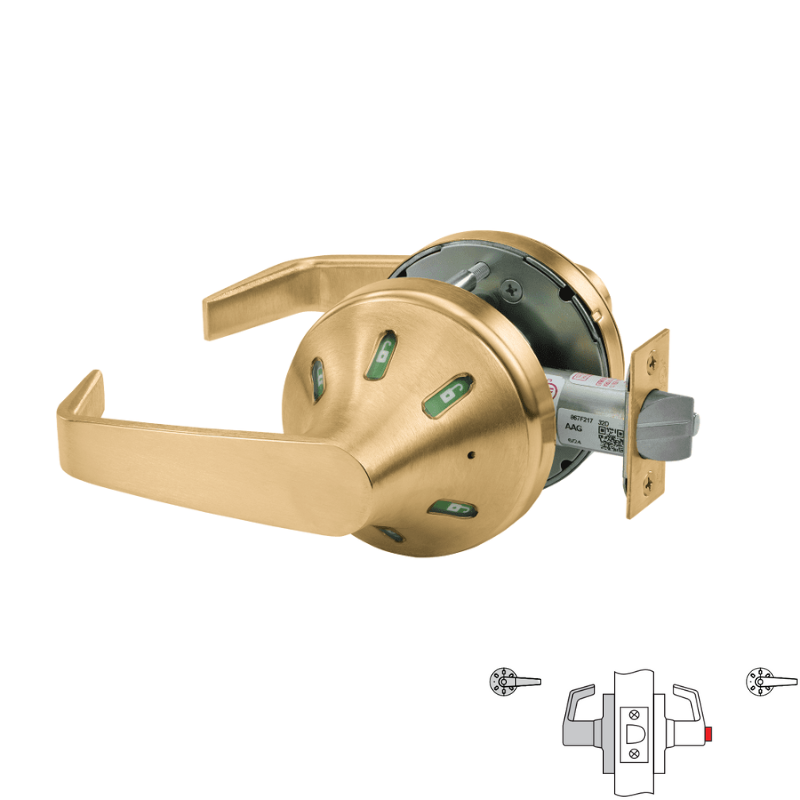

Corbin_Russwin_CLX3320-NVSL-606-V33

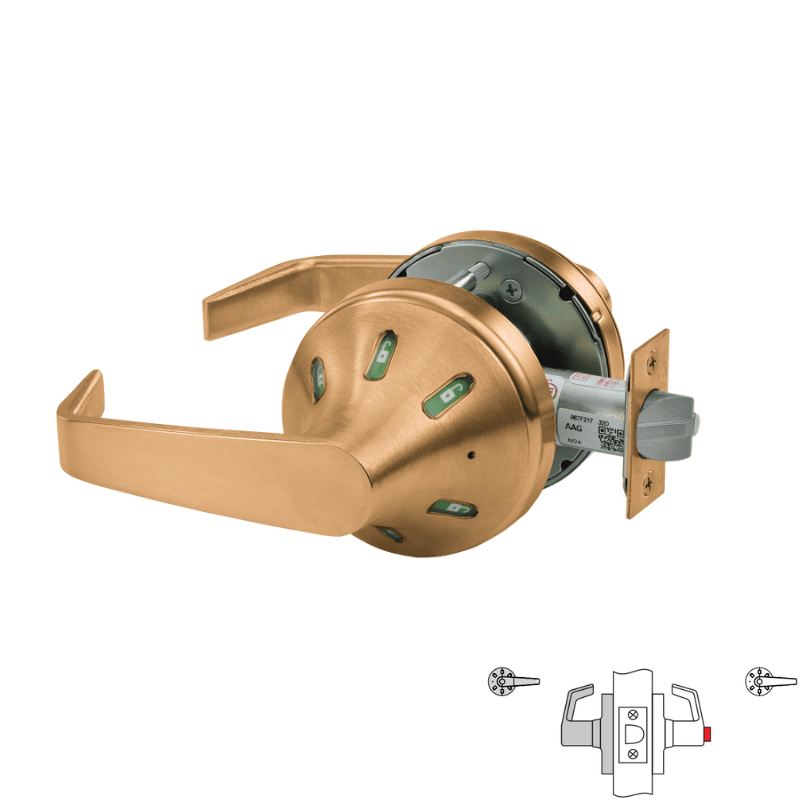

Corbin_Russwin_CLX3320-NVSL-612-V33

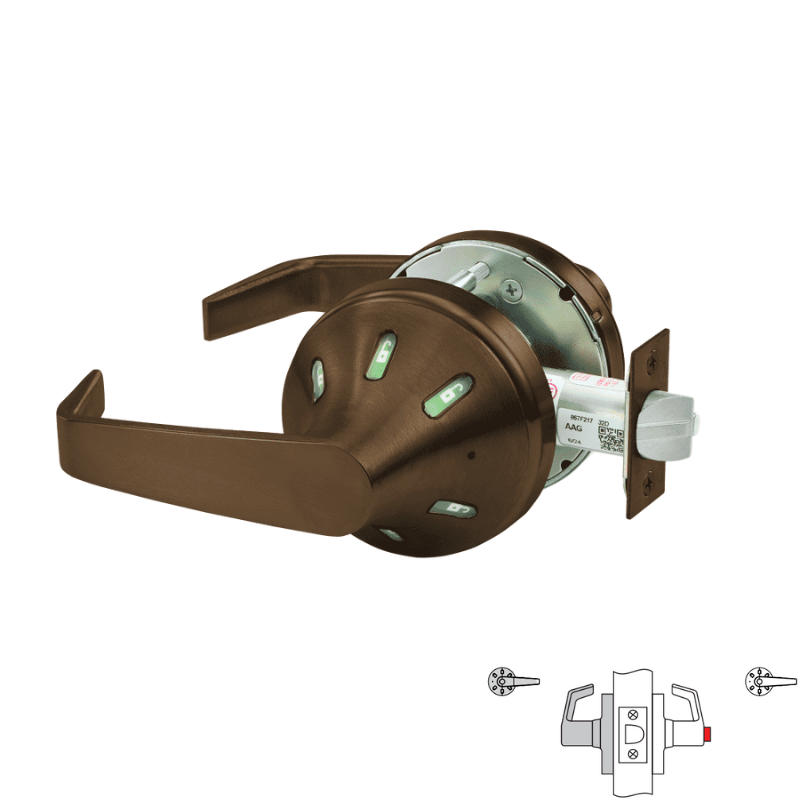

Corbin_Russwin_CLX3320-NVSL-613-V33
Corbin_Russwin_CLX3320-NVSL-613E-V33

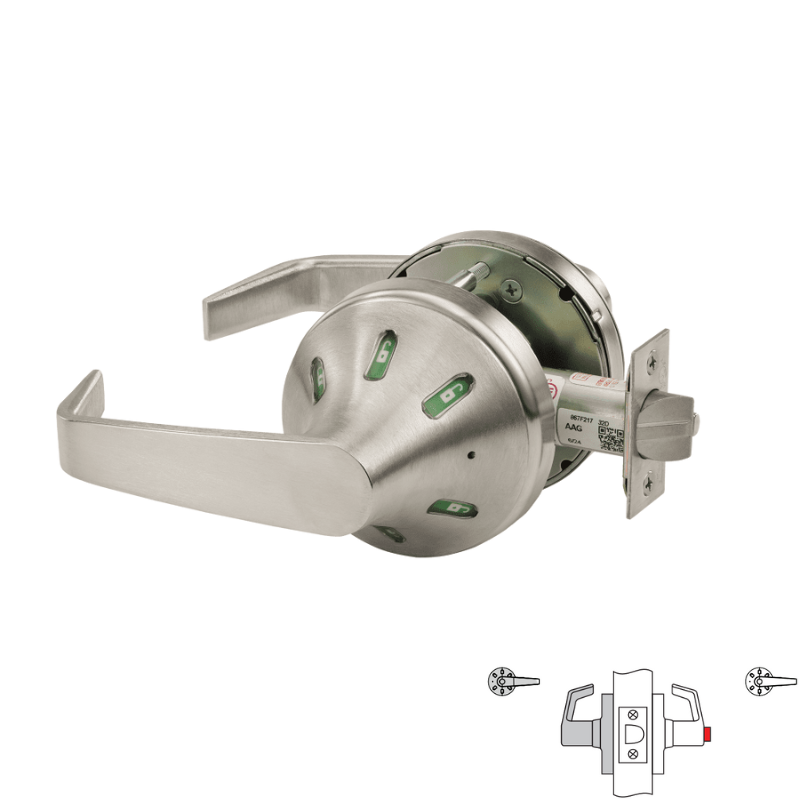

Corbin_Russwin_CLX3320-NVSL-619-V33

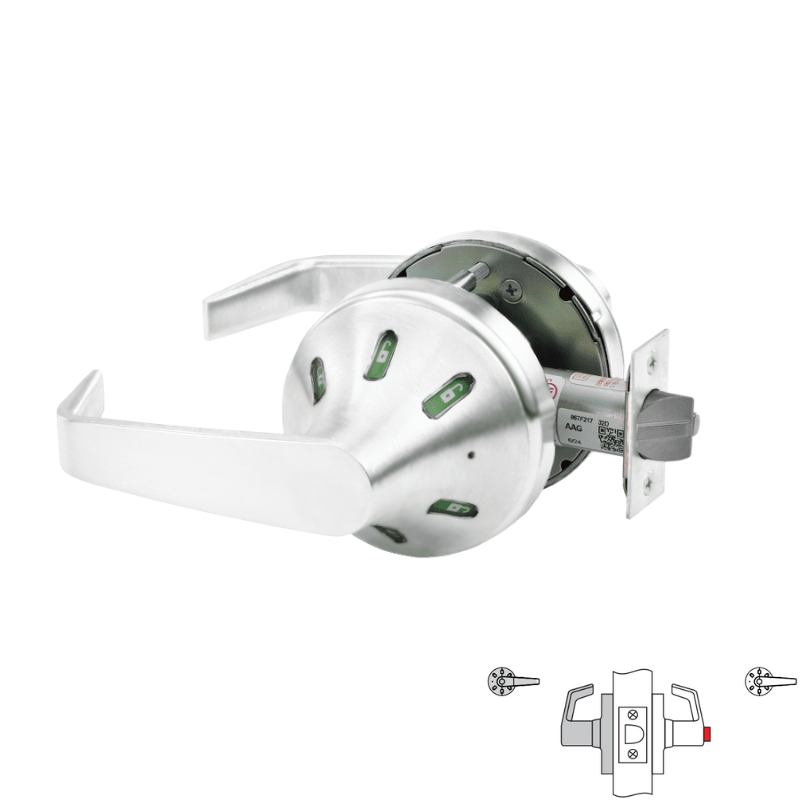

Corbin_Russwin_CLX3320-NVSL-625-V33
Corbin_Russwin_CLX3320-NVSL-722-V33

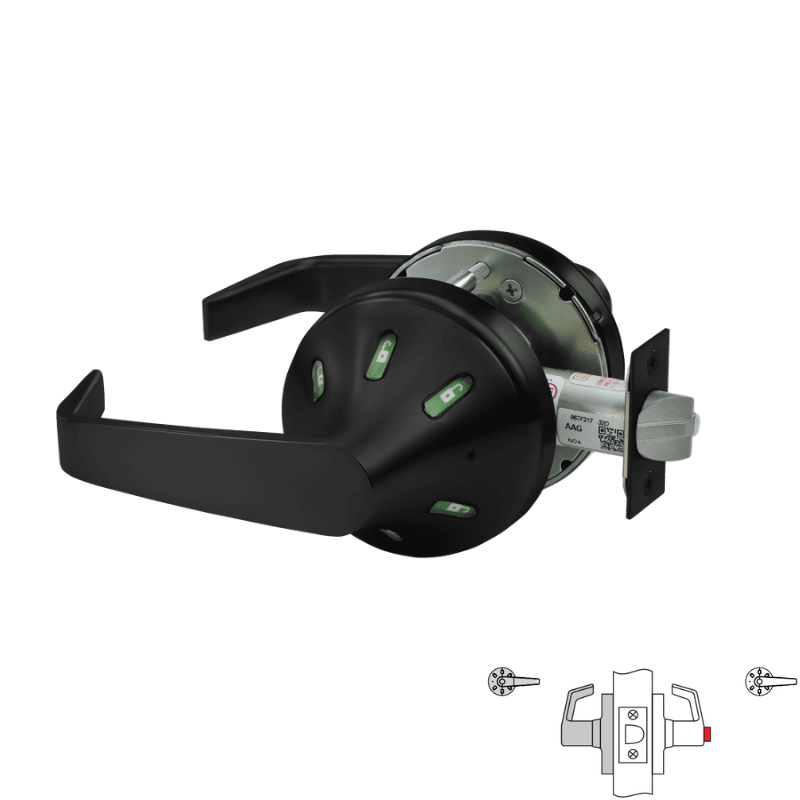

Corbin_Russwin_CLX3320-NVSL-BSP-V33

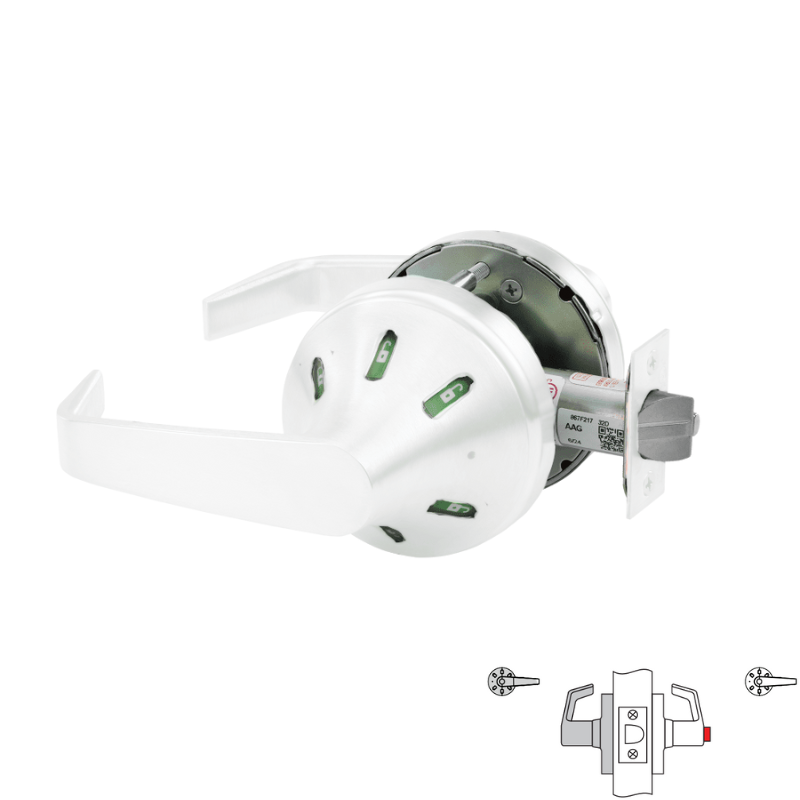

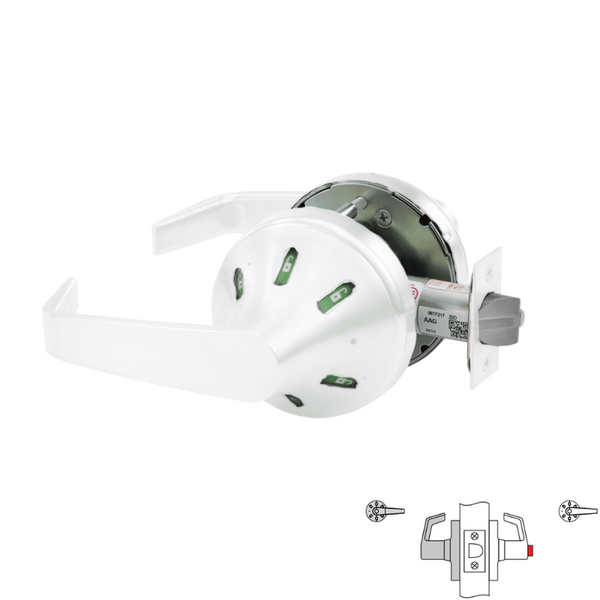

Corbin_Russwin_CLX3320-NVSL-WSP-V33
All CORBIN RUSSWIN Products

Corbin Russwin CLX3320-NVSL-V33 Privacy Cylindrical Lock With Status Indicator, Indicator Both Sides, Green/Red Icons, Non-Keyed

  • SKU: CLX3320NVSL626V33
  • ✓
    Available (4 Weeks)
    4 Weeks Lead Time
Your Price
$553.49 /ea
Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3320-NVSL-V33 Privacy Bedroom or Bathroom Cylindrical Lock With Status Indicator, Newport Lever, VSL Rose, Non-Keyed, Indicator Both Sides with Green/Red Icons, Grade 1, Non Handed

Corbin Russwin CLX3320-NVSL-V33 Grade 1 Privacy Cylindrical Lock features dual-sided status indicators with green/red icons for clear occupancy visibility. Equipped with Newport lever and VSL rose design, this non-keyed, non-handed lock provides professional-grade security for bedroom and bathroom applications, meeting the highest commercial standards.

The CLX3300 Series cylindrical lock with status indicators represents the perfect balance between security and privacy needs. Designed for straightforward installation across various applications, it provides immediate visual confirmation of lock status. With six configurable indicator windows maximizing visibility, this system offers dual-side indicators, single-motion exit capability, reversible installation, and keyed functionality options. Constructed on the premium CLX3300 Series platform, it surpasses Grade 1 requirements—making it the superior choice for high-usage restrooms, educational settings, and spaces demanding enhanced privacy protection.

Function Privacy Bedroom or Bathroom:

  • Outside lever locked by push button (lever handle is freewheeling in locked position)
  • Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door
  • Inside lever always free
Manufacturer Corbin Russwin
SKU CLX3320 NVSL V33
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 20 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 20- Privacy Bedroom or Bathroom
Function Family Privacy
ANSI Function F76A - Privacy
Lever/Knob Design NZ - Newport Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design VSL Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
