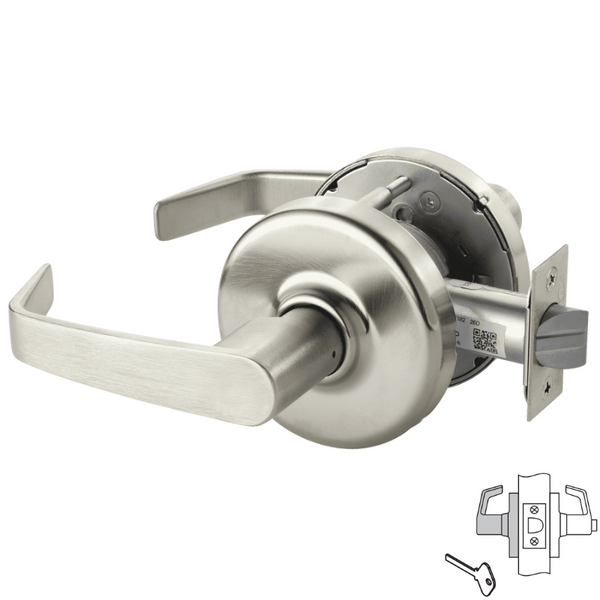

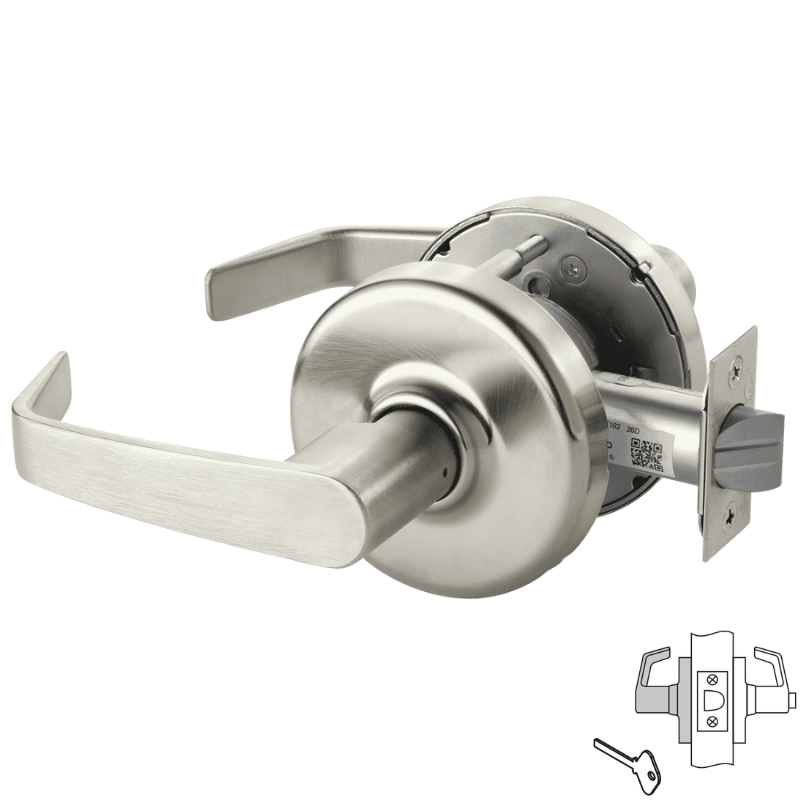

Corbin_Russwin_CLX3320-NZD-619

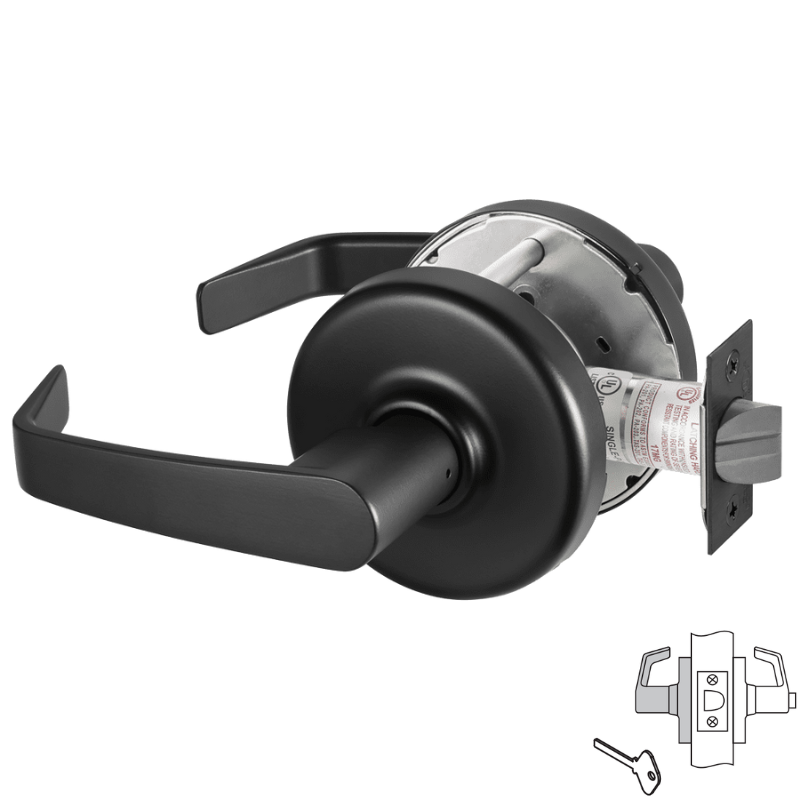

Corbin_Russwin_CLX3320-NZD-BSP

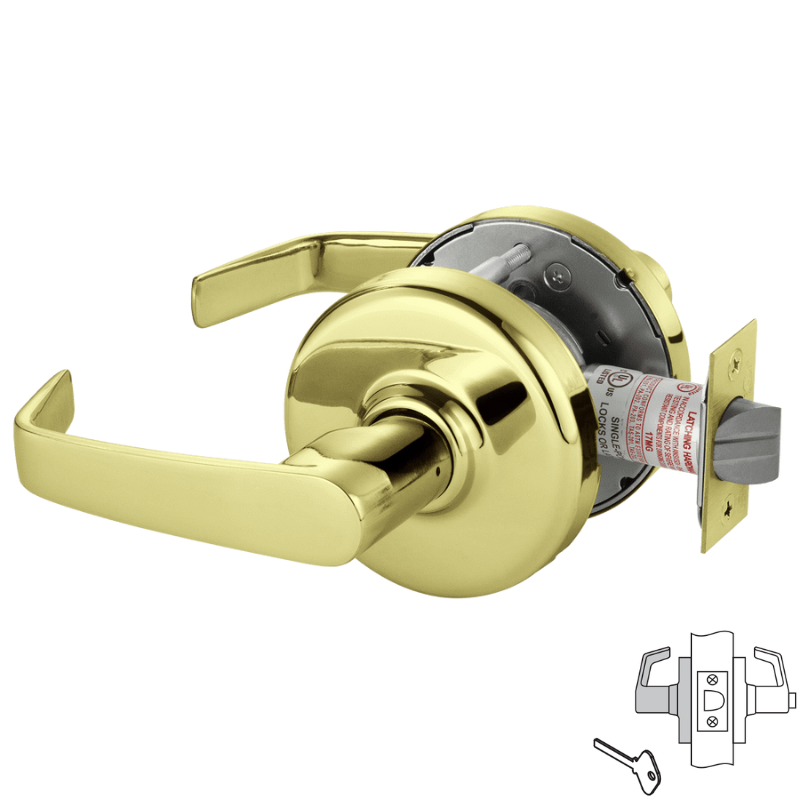

Corbin_Russwin_CLX3320-NZD-605

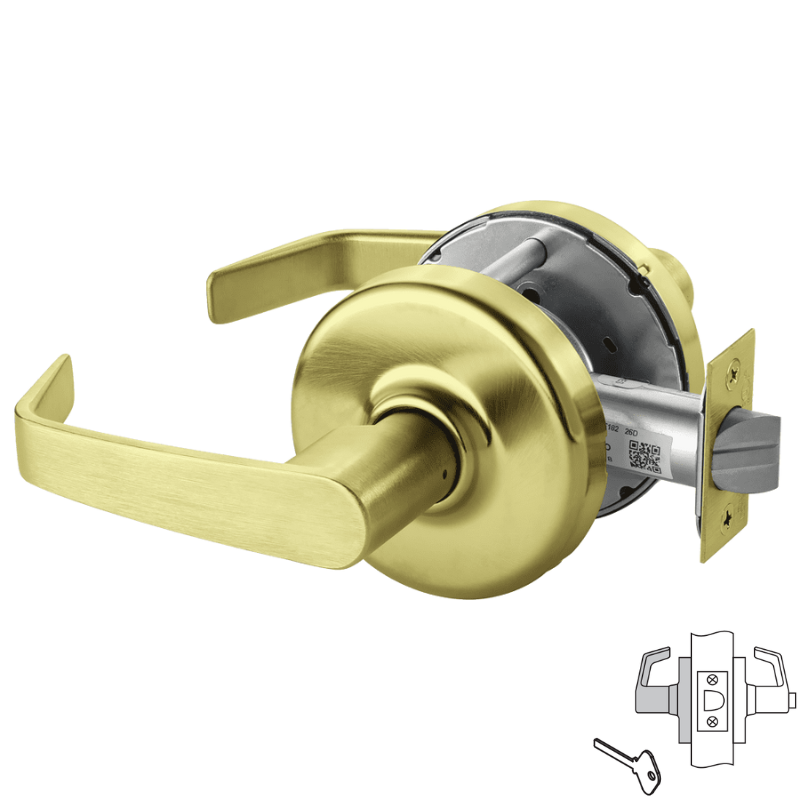

Corbin_Russwin_CLX3320-NZD-606

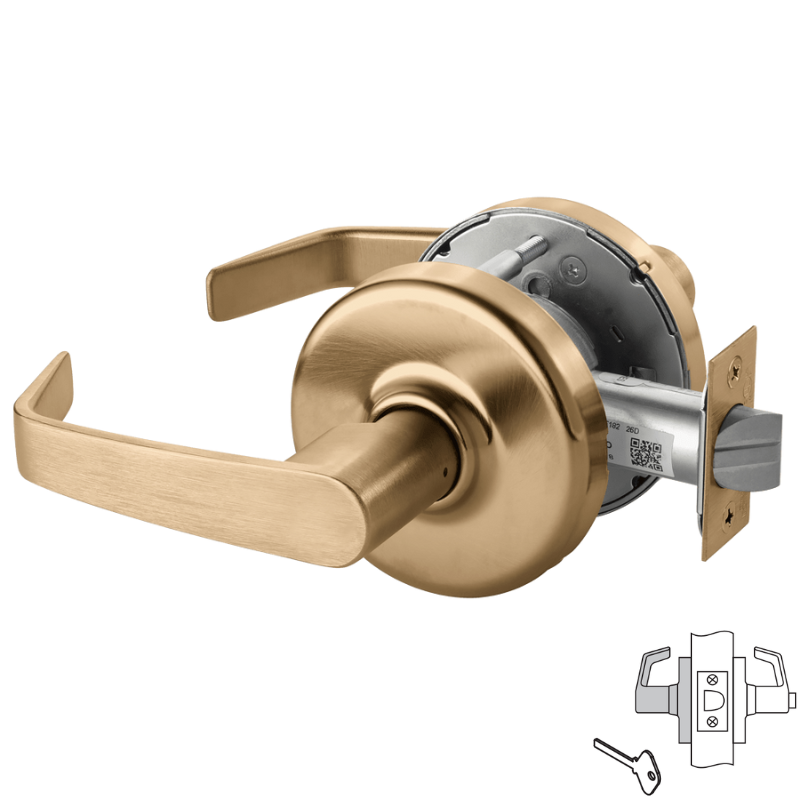

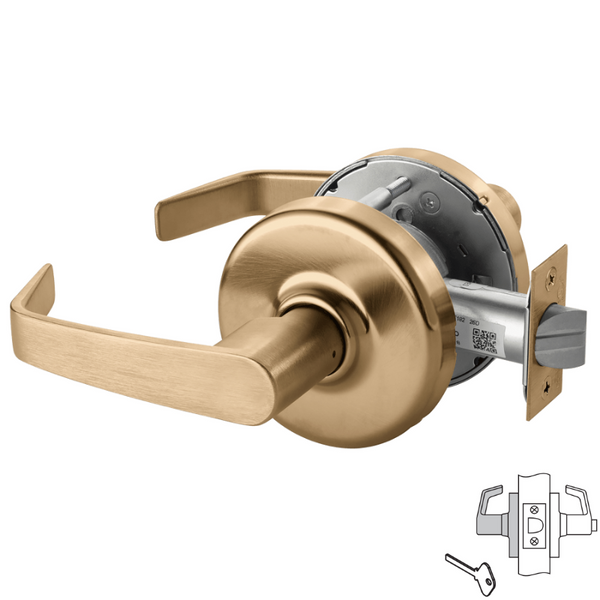

Corbin_Russwin_CLX3320-NZD-612

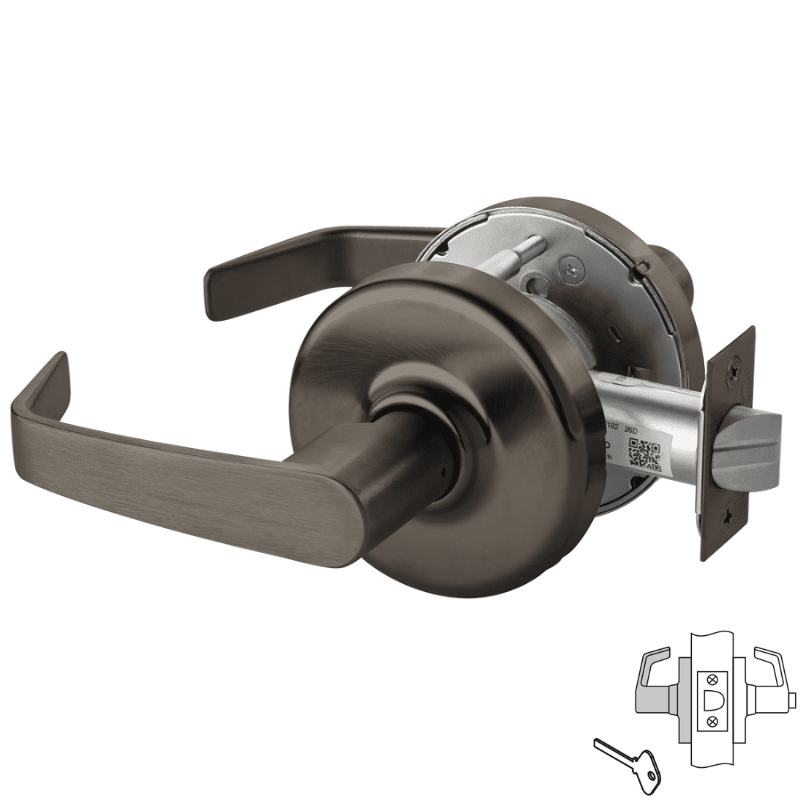

Corbin_Russwin_CLX3320-NZD-625

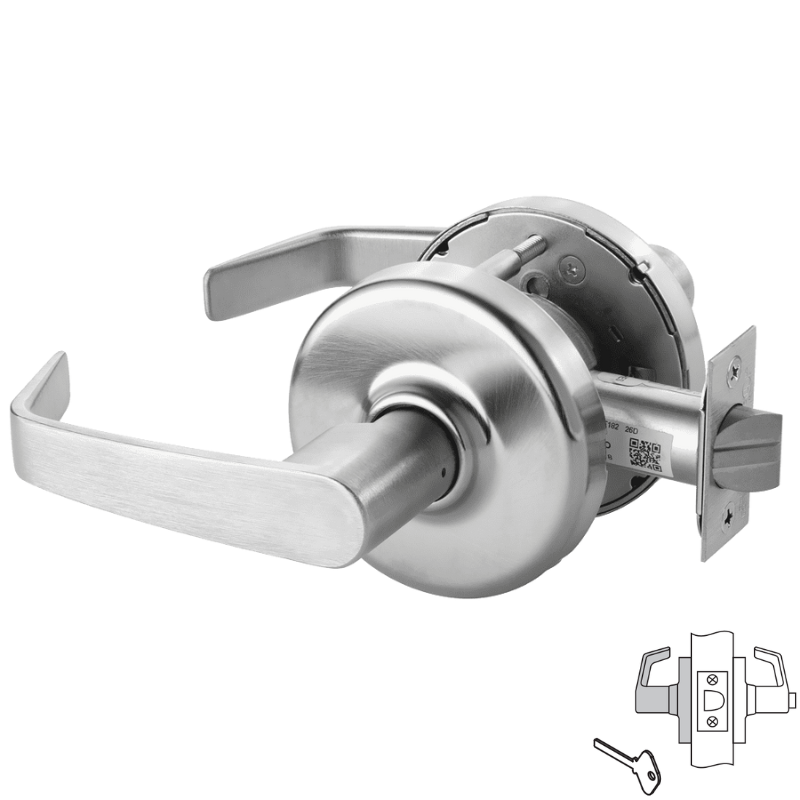

Corbin_Russwin_CLX3320-NZD-626
CLX3320Series
Corbin_Russwin_CLX3320-NZD-613
Corbin_Russwin_CLX3320-NZD-613E
Corbin_Russwin_CLX3320-NZD-619
Corbin_Russwin_CLX3320-NZD-BSP
Corbin_Russwin_CLX3320-NZD-605
Corbin_Russwin_CLX3320-NZD-606
Corbin_Russwin_CLX3320-NZD-612
Corbin_Russwin_CLX3320-NZD-625
All CORBIN RUSSWIN Products

Corbin Russwin CLX3320-NZD Cylindrical Lock, Privacy Function, Non-Keyed

  • SKU: CLX3320NZD626
$390.23/ea
In Stock (2 Weeks)
2 Weeks Lead Time

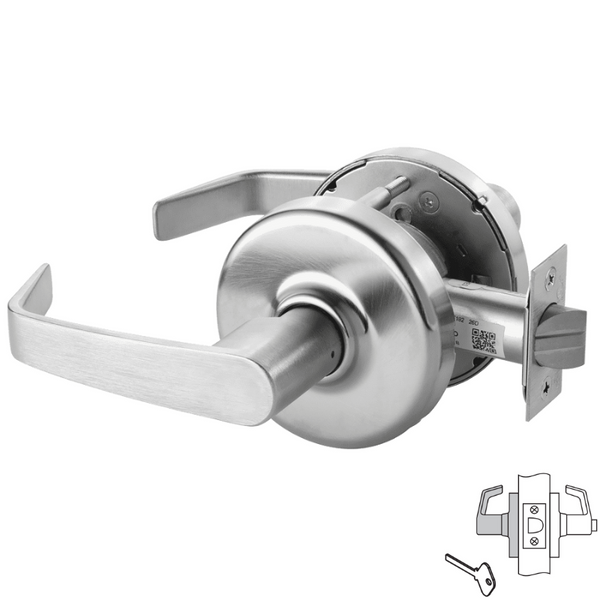

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3320-NZD Privacy Function Cylindrical Lever Lockset, Newport Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3320-NZD is a cylindrical lever lockset designed for privacy function. It features a Newport lever and a 2-3/4" backset, with a 4-7/8" strike for added security. This Grade 1 non-keyed lock is non-handed, making it suitable for a variety of applications.

Function Privacy Bedroom or Bathroom:

  • Outside lever locked by push button (lever handle is freewheeling in locked position)
  • Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door
  • Inside lever always free
Manufacturer Corbin Russwin
SKU CLX3320-NZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 20 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 20- Privacy Bedroom or Bathroom
Function Family Privacy
ANSI Function F76A - Privacy
Lever/Knob Design NZ - Newport Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
