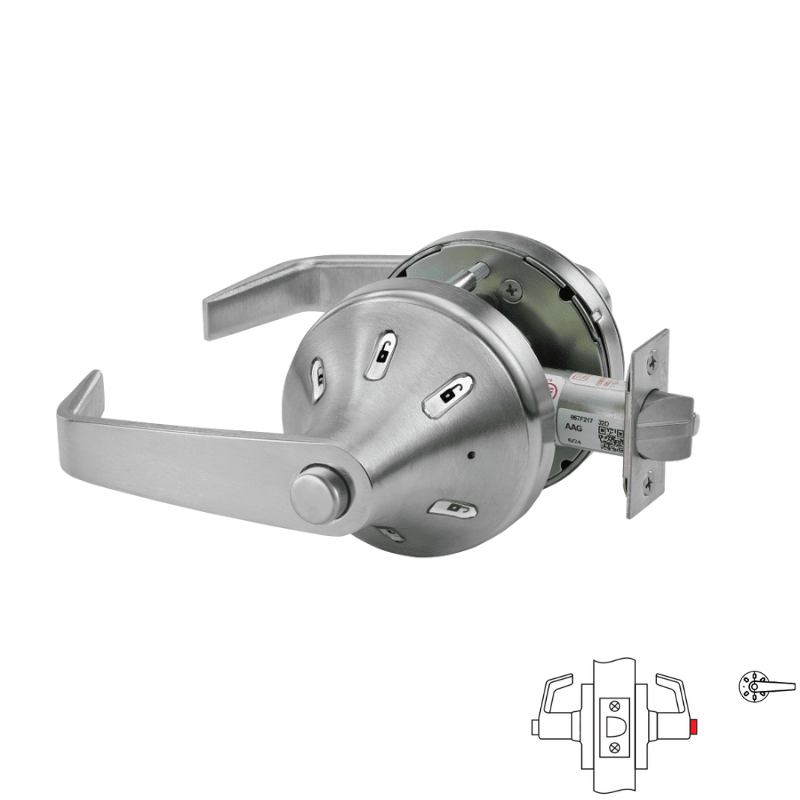

Corbin Russwin CLX3320H-NVSL-V06 Hospital Privacy Cylindrical Lock With Status Indicator, Indicator Inside Only, White/Red Icons, Non-Keyed

  • SKU: CLX3320HNVSL626V06

Corbin Russwin CLX3320H-NVSL-V06 Hospital Privacy Cylindrical Lock With Status Indicator, Indicator Inside Only, White/Red Icons, Non-Keyed

  • SKU: CLX3320HNVSL626V06
Sale price$488.47/ea
Available (4 Weeks)
4 Weeks Lead Time
Finish: US26D-626 Satin Chrome

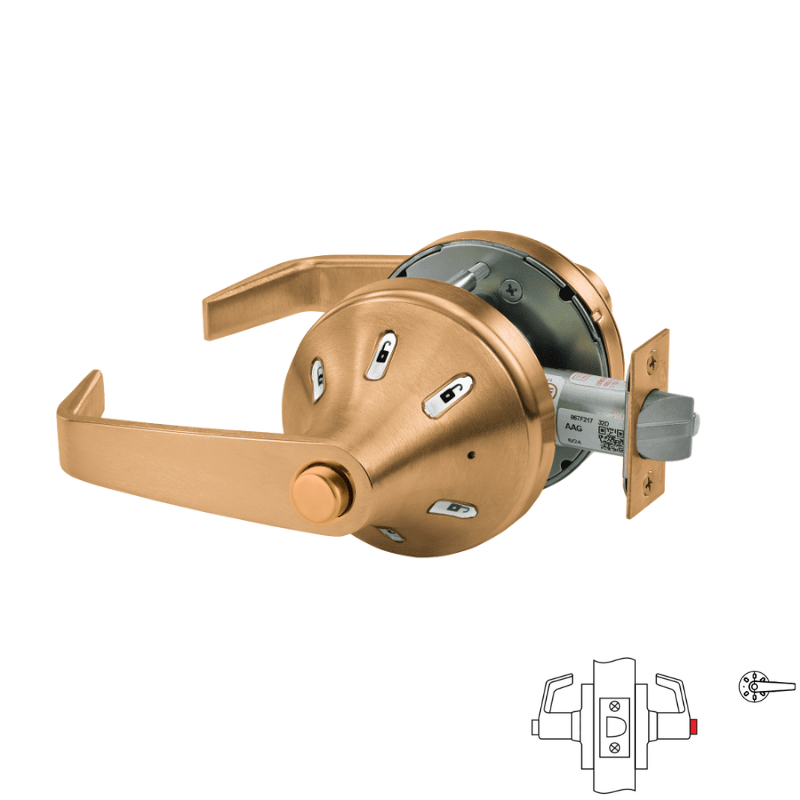

Corbin Russwin CLX3320H-NVSL-V06 Hospital Privacy Cylindrical Lock With Status Indicator, Newport Lever, VSL Rose, Non-Keyed, Indicator Inside Only with White/Red Icons, Grade 1, Non Handed

Corbin Russwin CLX3320H-NVSL-V06 Hospital Privacy Cylindrical Lock features a status indicator with white/red icons visible from inside only. Equipped with Newport Lever and VSL Rose design, this non-keyed Grade 1 lock offers superior security for healthcare facilities. The non-handed configuration ensures versatile installation options for any door orientation.

The CLX3300 Series cylindrical lock with status indicators represents the perfect balance between security and privacy needs. Designed for straightforward installation across various applications, it provides immediate visual confirmation of lock status. With six configurable indicator windows maximizing visibility, this system offers dual-side indicators, single-motion exit capability, reversible installation, and keyed functionality options. Constructed on the premium CLX3300 Series platform, it surpasses Grade 1 requirements—making it the superior choice for high-usage restrooms, educational settings, and spaces demanding enhanced privacy protection.

Function Privacy Bedroom or Bathroom:

  • Outside lever locked by inside push button (lever handle is freewheeling in locked position)
  • Outside lever unlocked by simultaneously depressing outside pushbutton while rotating lever
  • Rotating inside lever or closing door also unlocks outside lever
  • Outside lever handle is freewheeling when locked
Manufacturer Corbin Russwin
SKU CLX3320H NVSL V06
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 20 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 20H- Hospital Privacy
Function Family Privacy
Lever/Knob Design NZ - Newport Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design VSL Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
