Corbin Russwin CLX3320TO-123D Cylindrical Lock, Time Out Lock Function, Decorative Lever, Non-Keyed

  • SKU: CLX3320TO123D626
$423.44/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

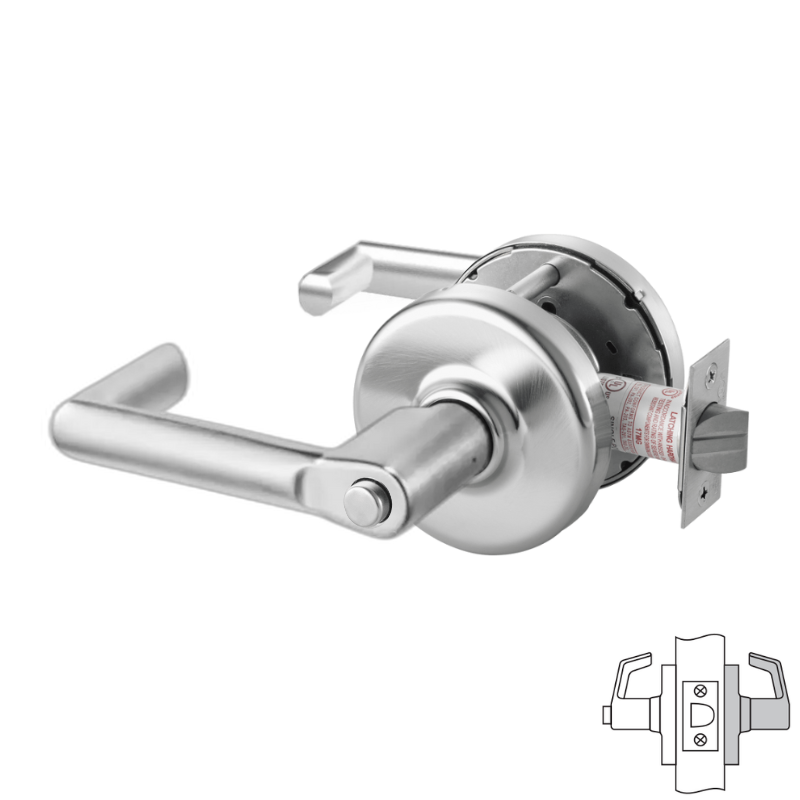

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3320TO-123D Time Out Lock Function Cylindrical Lever Lockset, Salvador 123D Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3320TO-123D Cylindrical Lock features a convenient Time Out Lock Function and a decorative lever, along with a non-keyed design. It is a Grade 1 lock, suitable for commercial use, with a 2-3/4" backset and 4-7/8" strike. Additionally, it is non-handed for easy installation.

Function: Time Out Lock

  • Latchbolt by lever either side (passage) unless push button depressed and held by caretaker (detention side becomes freewheeling). Lock returns to passage mode upon release of push button.
  • Push button automatically releases when caretaker releases push button
  • Both levers always free
    Manufacturer Corbin Russwin
    SKU CLX3320TO-123D
    Grade Grade 1
    Installation Commercial
    Origin United States
    Unit of Measure Each
    Base Material Brass, Bronze
    UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
    Limited Warranty 20 Year Limited Warranty
    Fire Rated 3 Hours {A}
    Burglar Rated No
    Function 20TO-Time Out Lock
    Lever/Knob Design 123 - Salvador Lever
    Lever/Knob Design Family Straight Lever
    Rose/Escutcheon Design
    D Rose
    Rose/Escutcheon Dimensions 3-1/2"
    Cylinder Type Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/4" to 2"
    Std. Latch Number 867F20
    Std. Latch Type Springlatch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 1"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number SA114
    Std. Strike Type ANSI Curved Lip Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock
