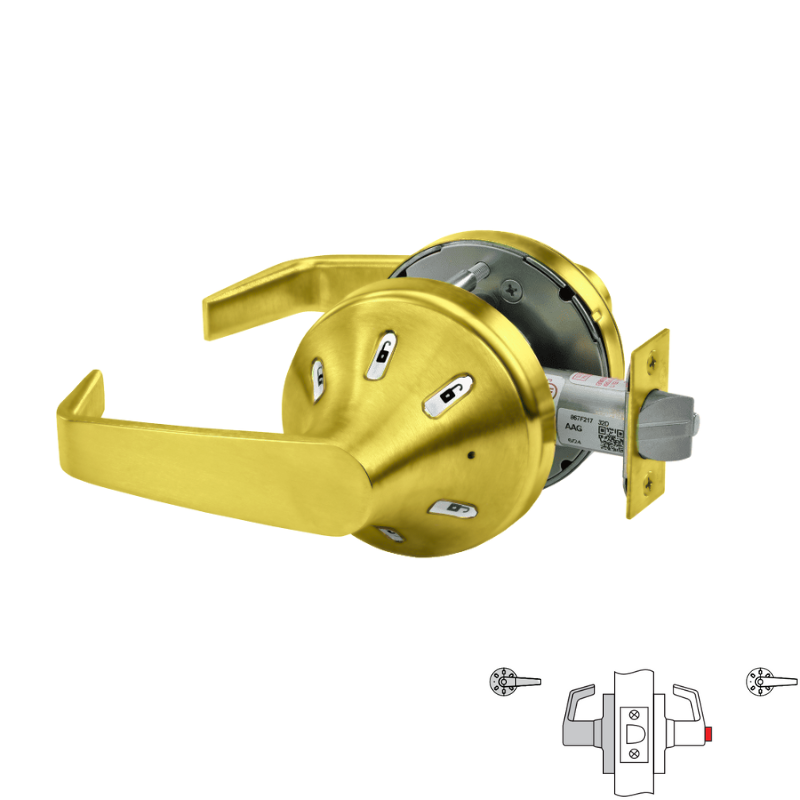

Corbin_Russwin_CLX3330-NVSL-605-V66

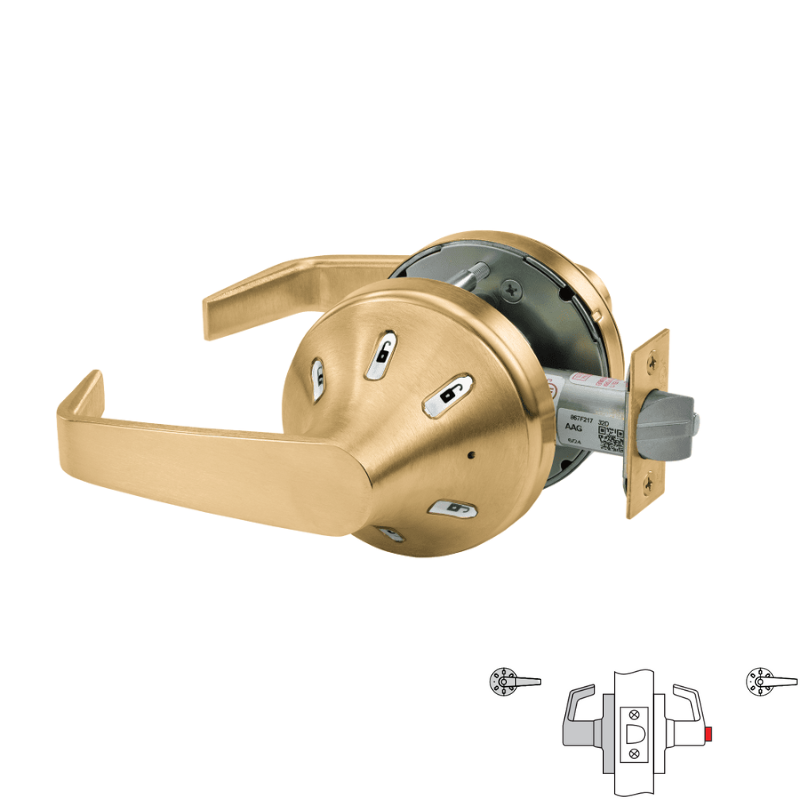

Corbin_Russwin_CLX3330-NVSL-606-V66

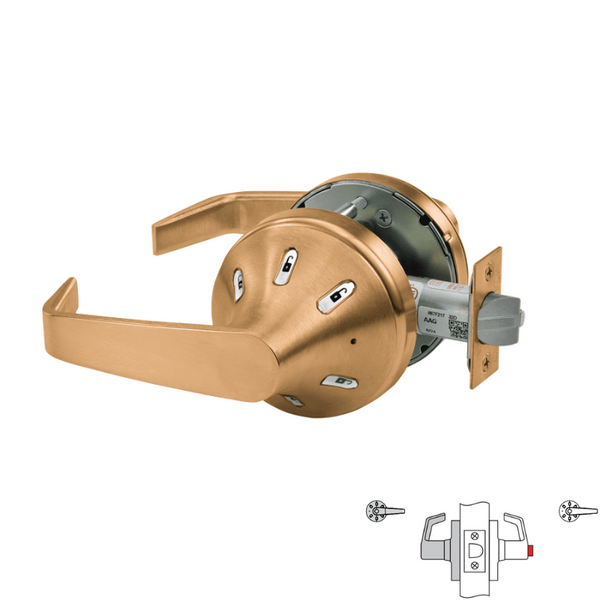

Corbin_Russwin_CLX3330-NVSL-612-V66

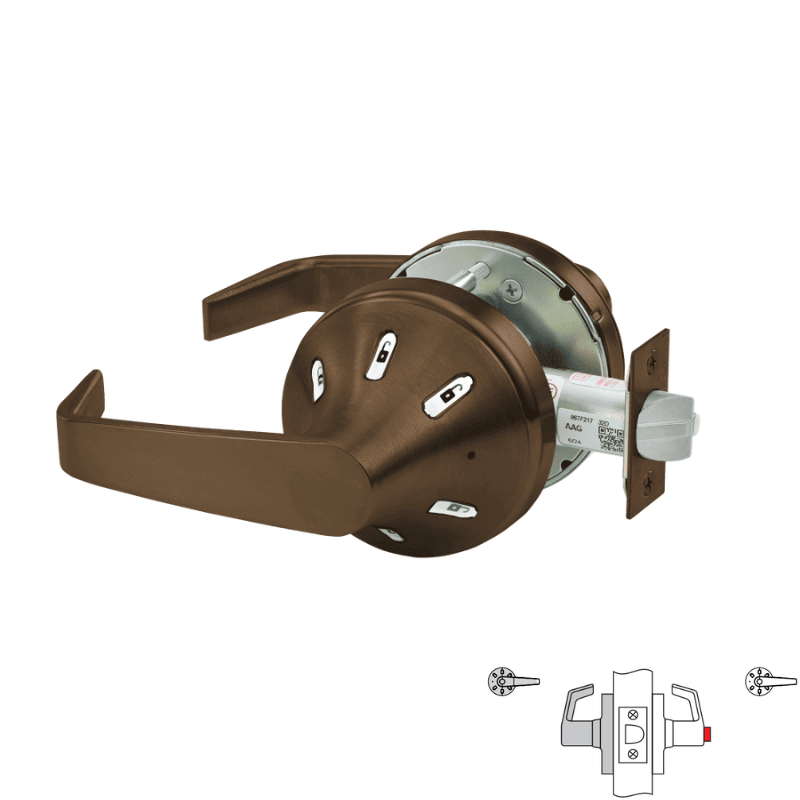

Corbin_Russwin_CLX3330-NVSL-613-V66
Corbin_Russwin_CLX3330-NVSL-613E-V66
Corbin_Russwin_CLX3330-NVSL-619-V66

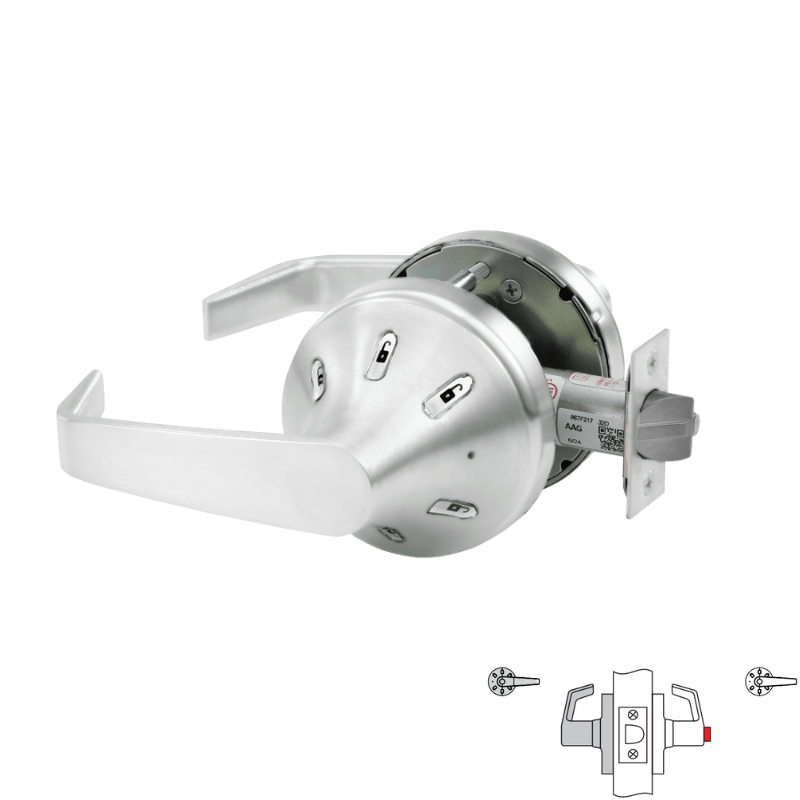

Corbin_Russwin_CLX3330-NVSL-625-V66

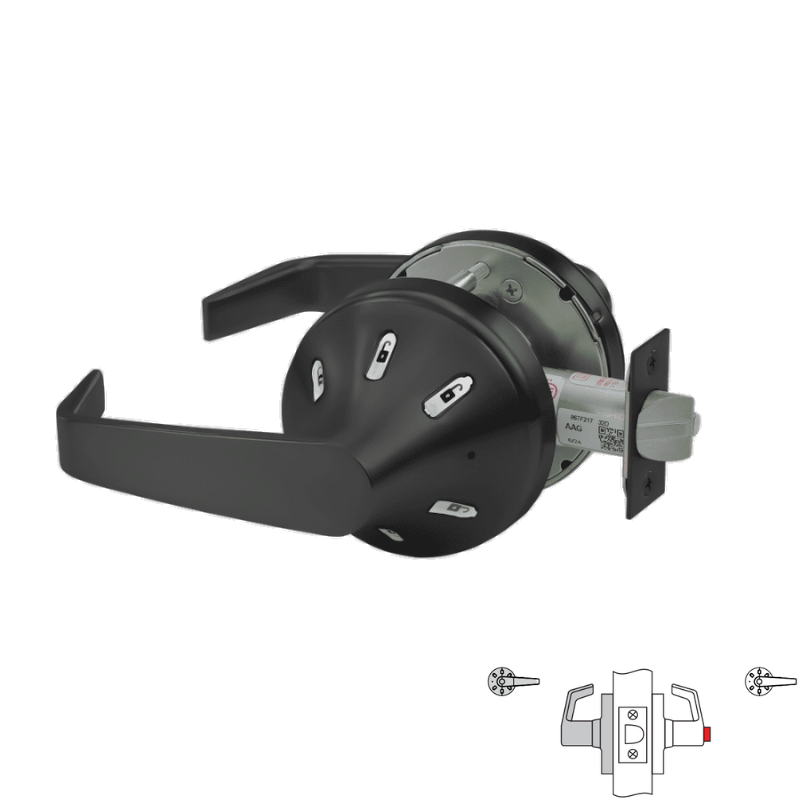

Corbin_Russwin_CLX3330-NVSL-722-V66

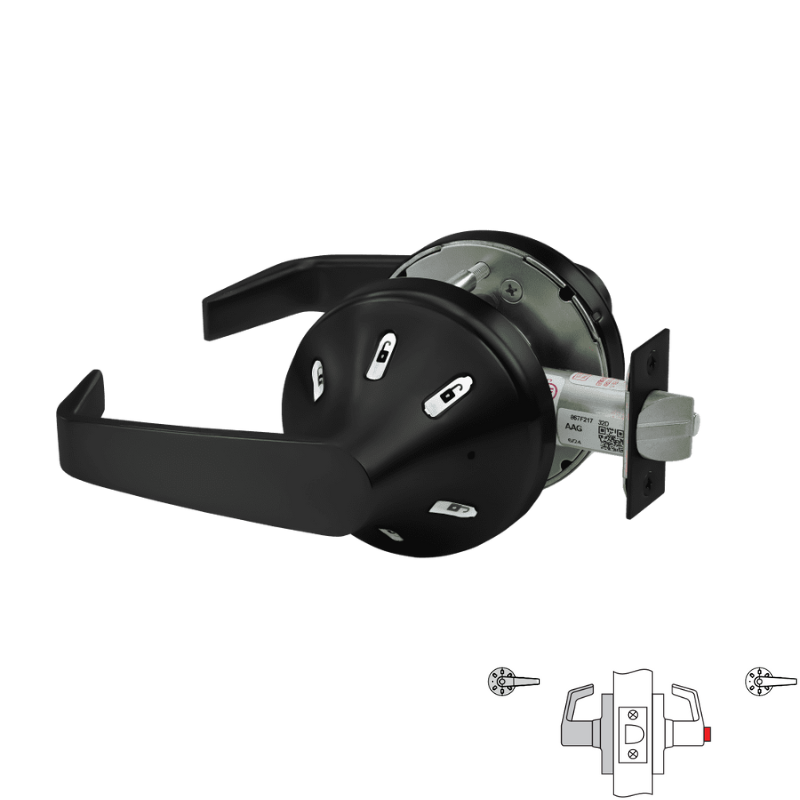

Corbin_Russwin_CLX3330-NVSL-BSP-V66

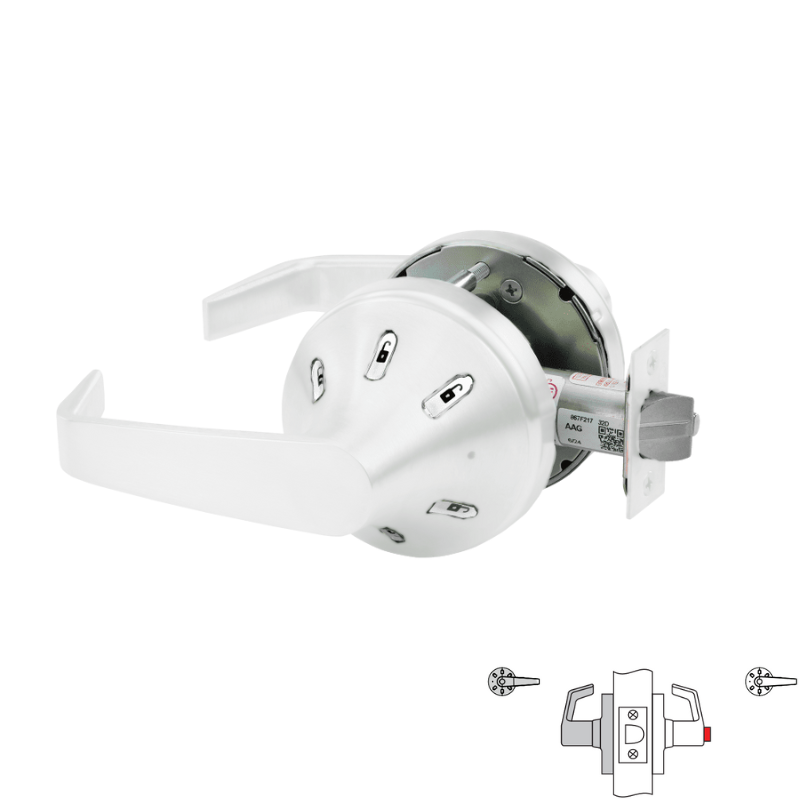

Corbin_Russwin_CLX3330-NVSL-WSP-V66
All CORBIN RUSSWIN Products

Corbin Russwin CLX3330-NVSL-V66 Privacy x Cointurn Cylindrical Lock With Status Indicator, Indicator Both Side, White/Red Icons, Non-Keyed

  • SKU: CLX3330NVSL626V66
  • ✓
    Available (4 Weeks)
    4 Weeks Lead Time
Your Price
$537.21 /ea
Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3330-NVSL-V66 Privacy x Cointurn release Cylindrical Lock With Status Indicator, Newport Lever, VSL Rose, Non-Keyed, Indicator Both Side with White/Red Icons, Grade 1, Non Handed

Corbin Russwin CLX3330-NVSL-V66 delivers professional-grade privacy functionality with convenient cointurn release mechanism. This Grade 1 cylindrical lock features dual-sided status indicators with white/red icons, Newport lever design, and VSL rose. The non-keyed, non-handed construction ensures versatile installation while maintaining the highest commercial security standards.

The CLX3300 Series cylindrical lock with status indicators represents the perfect balance between security and privacy needs. Designed for straightforward installation across various applications, it provides immediate visual confirmation of lock status. With six configurable indicator windows maximizing visibility, this system offers dual-side indicators, single-motion exit capability, reversible installation, and keyed functionality options. Constructed on the premium CLX3300 Series platform, it surpasses Grade 1 requirements—making it the superior choice for high-usage restrooms, educational settings, and spaces demanding enhanced privacy protection.

Function Privacy Bedroom or Bathroom:

  • Outside lever locked by push button (lever handle is freewheeling in locked position)
  • Outside lever unlocked by emergency cointurn outside, by rotating inside lever or by closing door
  • Inside lever always free
Manufacturer Corbin Russwin
SKU CLX3330 NVSL V66
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 20 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 30- Privacy Bedroom or Bathroom
Function Family Privacy
ANSI Function F76A - Privacy
Lever/Knob Design NZ - Newport Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design VSL Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
