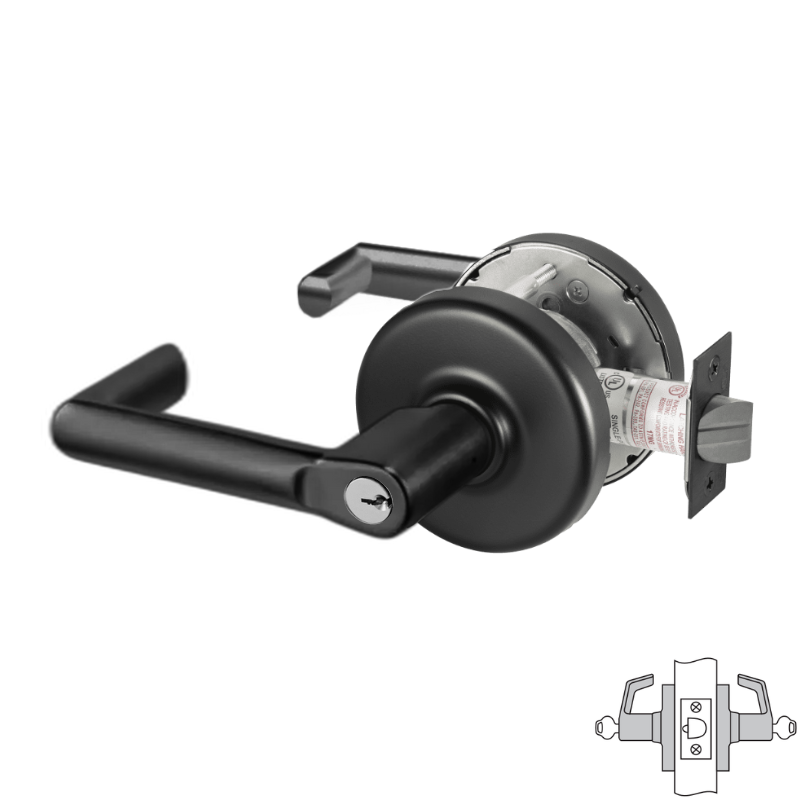

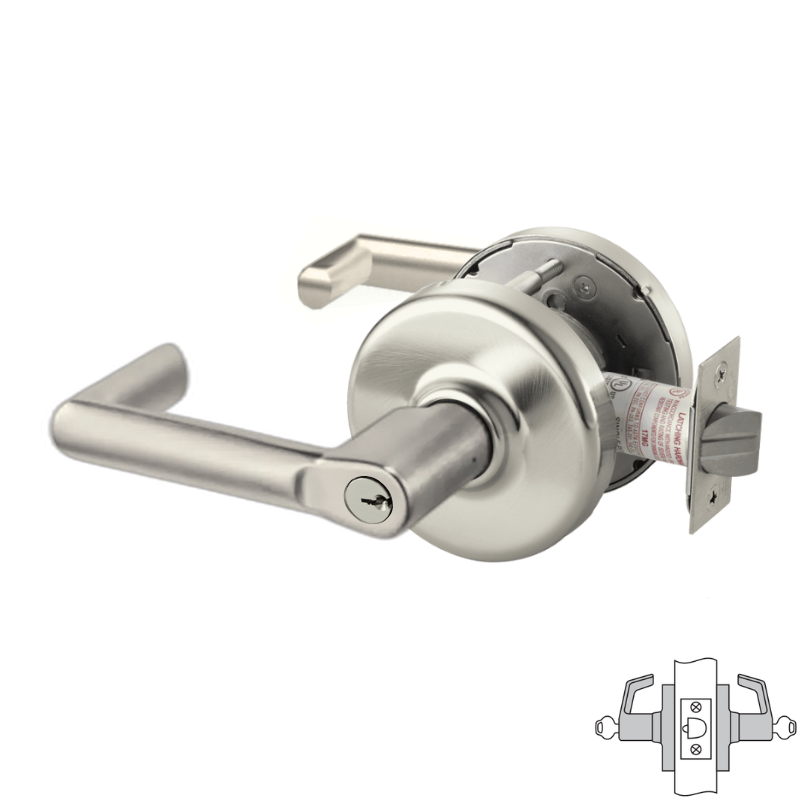

Corbin Russwin CLX3332-123D Cylindrical Lock, Institution Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3332123D626

Corbin Russwin CLX3332-123D Cylindrical Lock, Institution Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3332123D626
Sale price$572.41/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

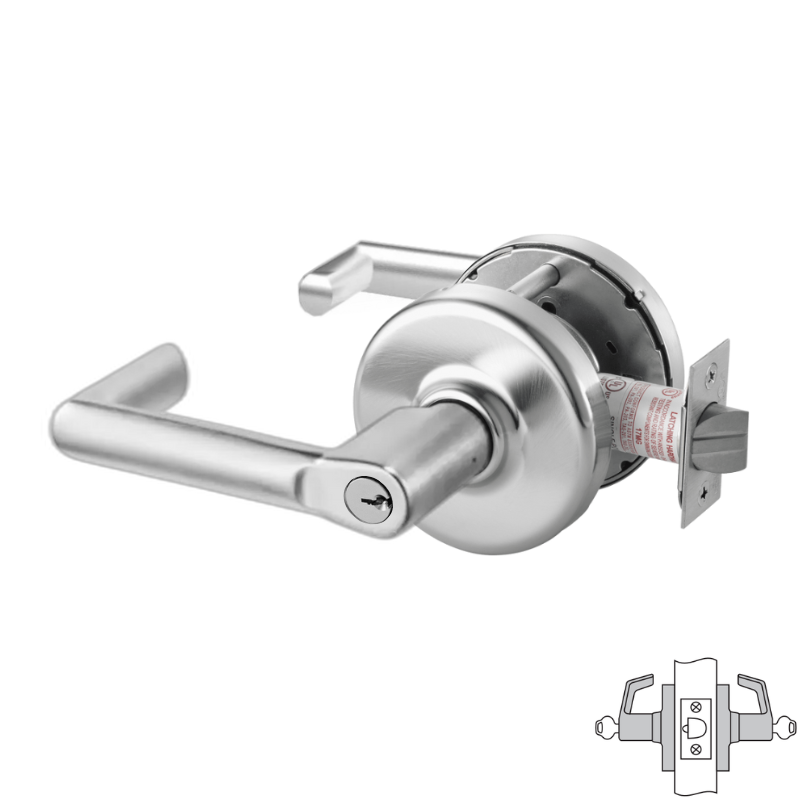

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

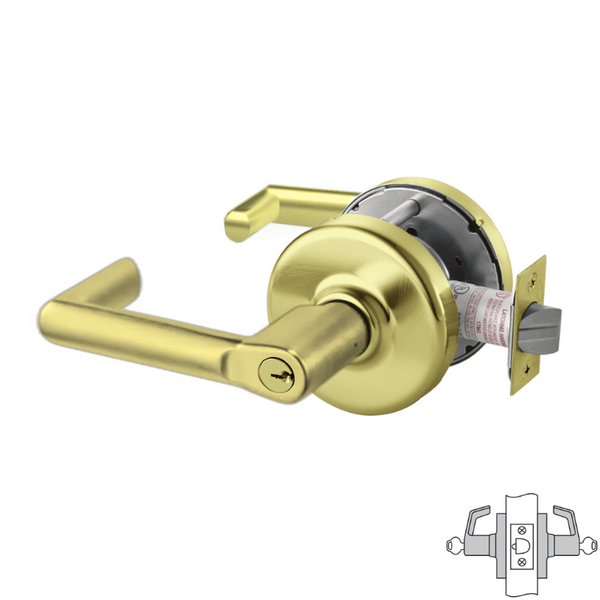

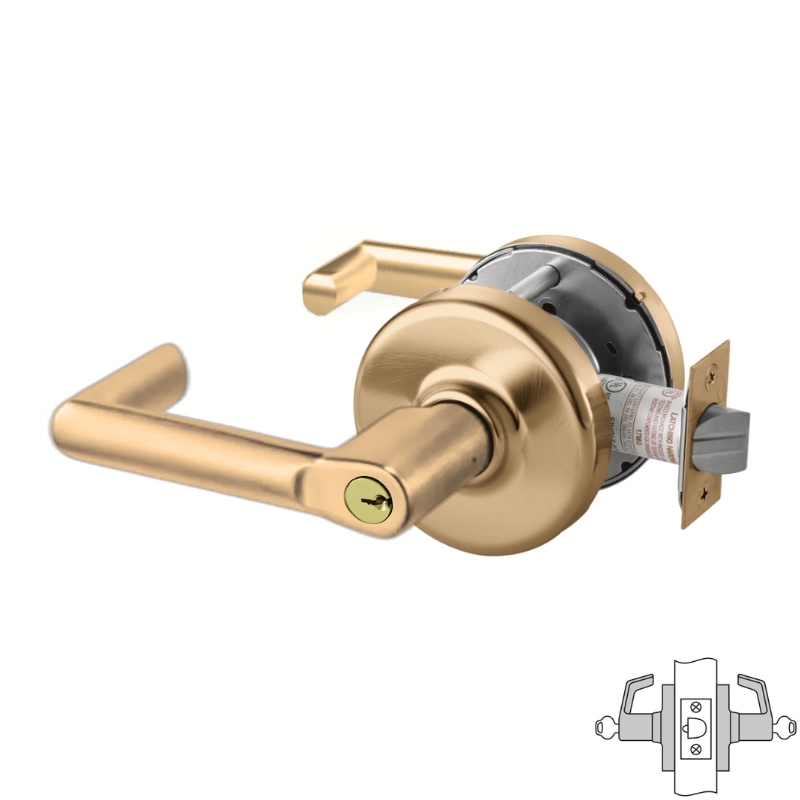

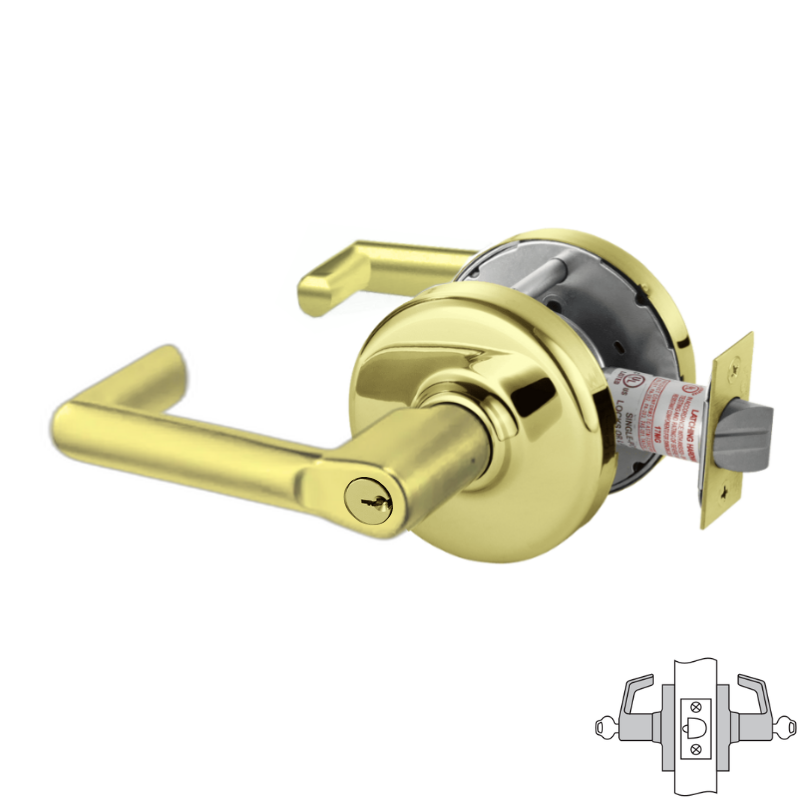

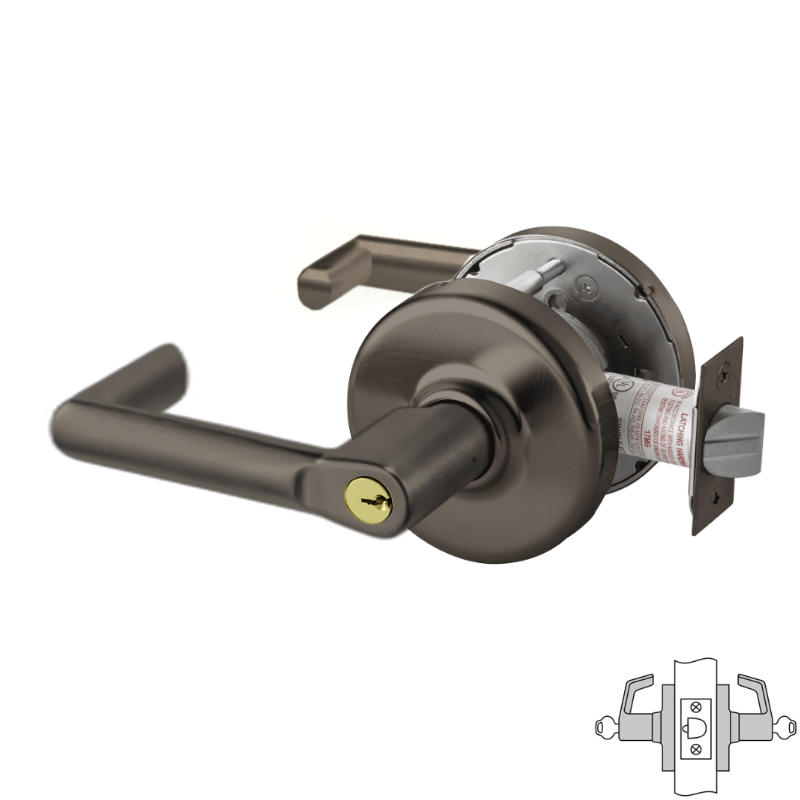

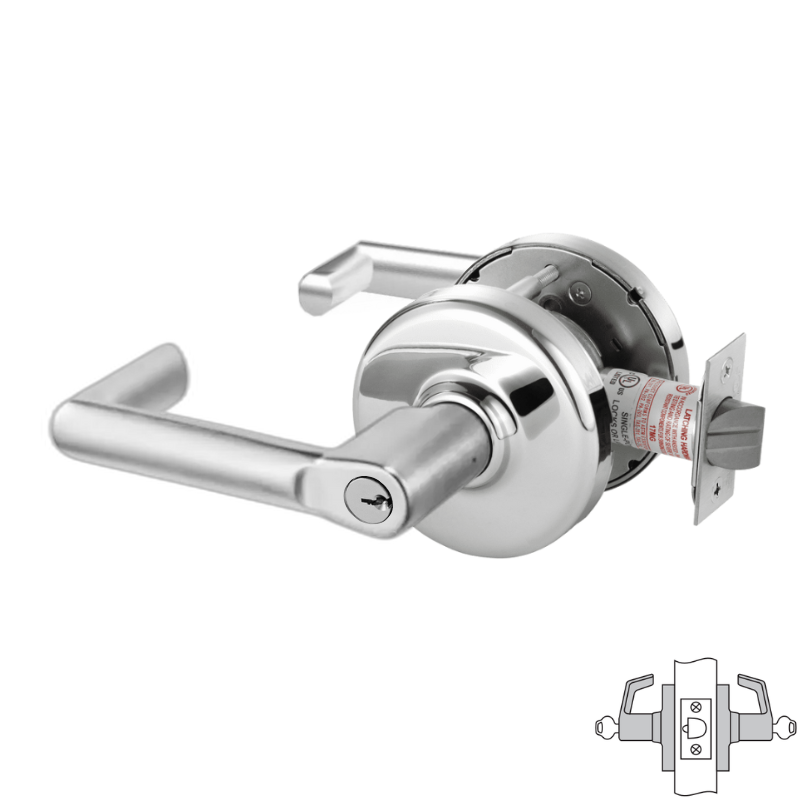

Corbin Russwin CLX3332-123D Institution Function Cylindrical Lever Lockset, Salvador 123D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

Corbin Russwin CLX3332-123D Institution Function Cylindrical Lever Lockset featuring the Salvador 123D Lever design. This Grade 1 non-handed lockset includes a 2-3/4" backset and 4-7/8" strike plate. Engineered for institutional applications with multiple core compatibility.

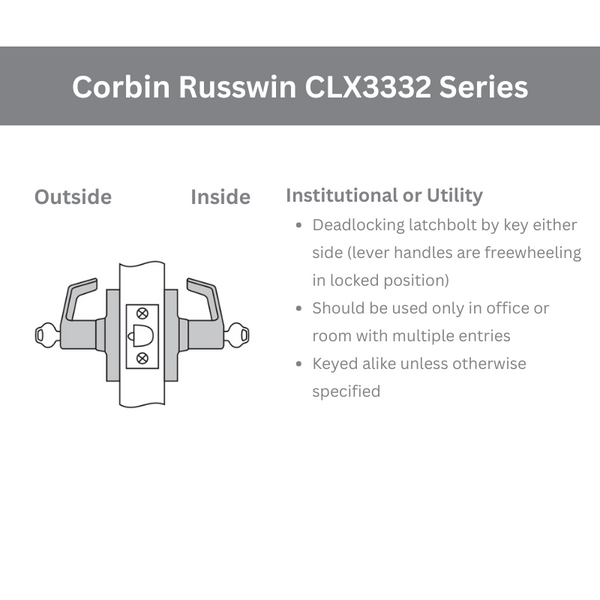

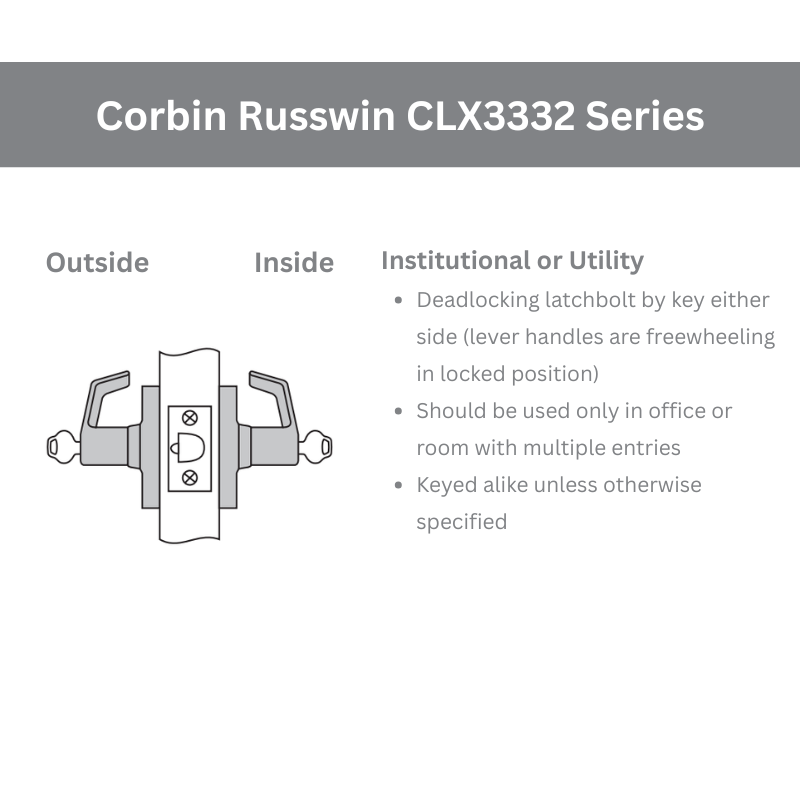

Function: Institutional or Utility

  • Deadlocking latchbolt by key either side (lever handles are freewheeling in locked position)
  • Should be used only in office or room with multiple entries
  • Keyed alike unless otherwise specified

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

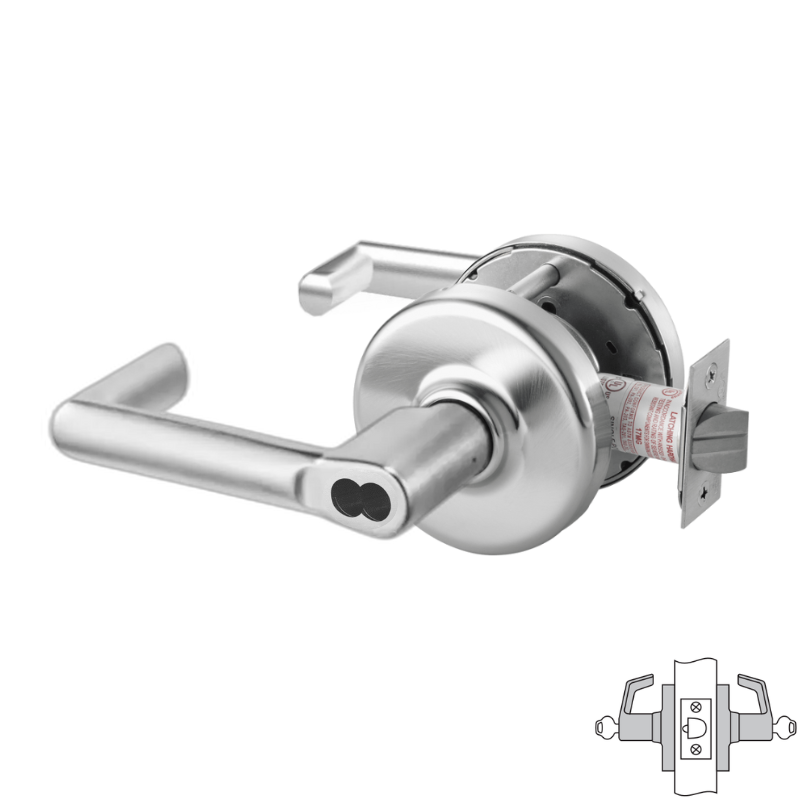

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3332 123D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 32 Institutional or Utility
Lever/Knob Design 123 - Salvador Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
