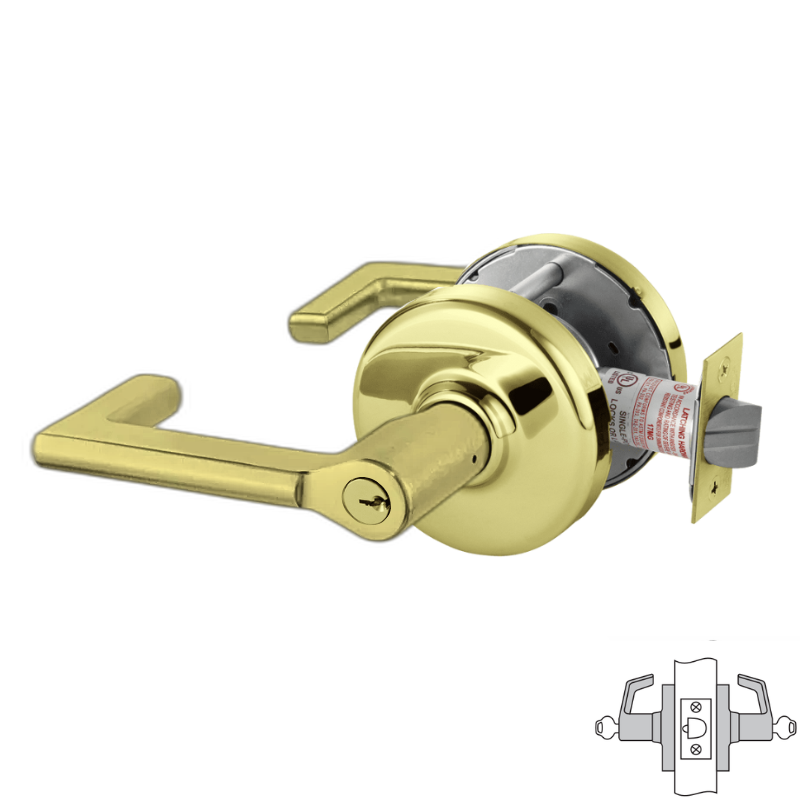

Corbin_Russwin_CLX3332-124D-605

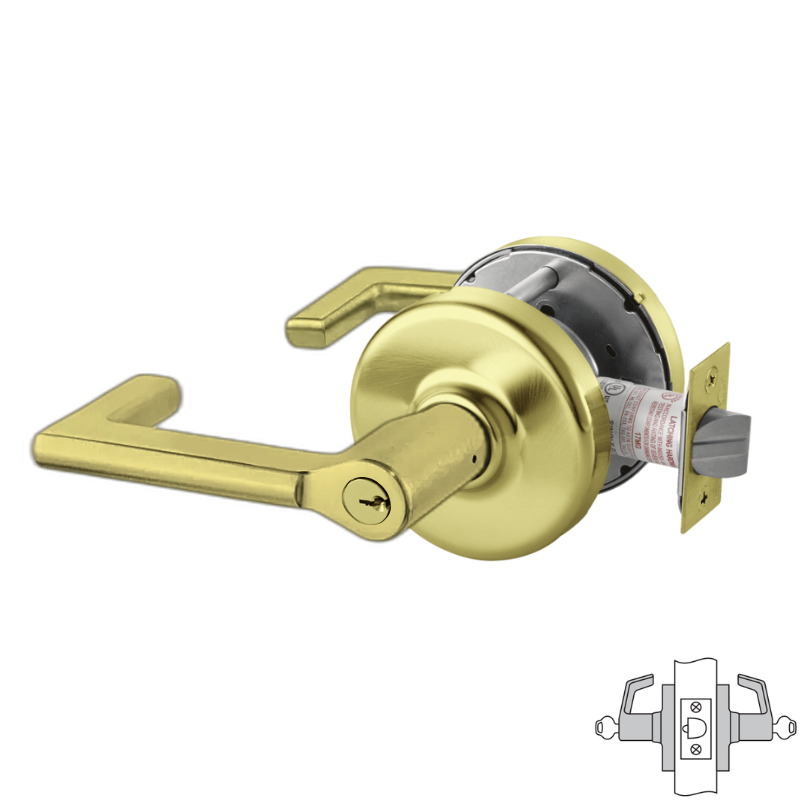

Corbin_Russwin_CLX3332-124D-606

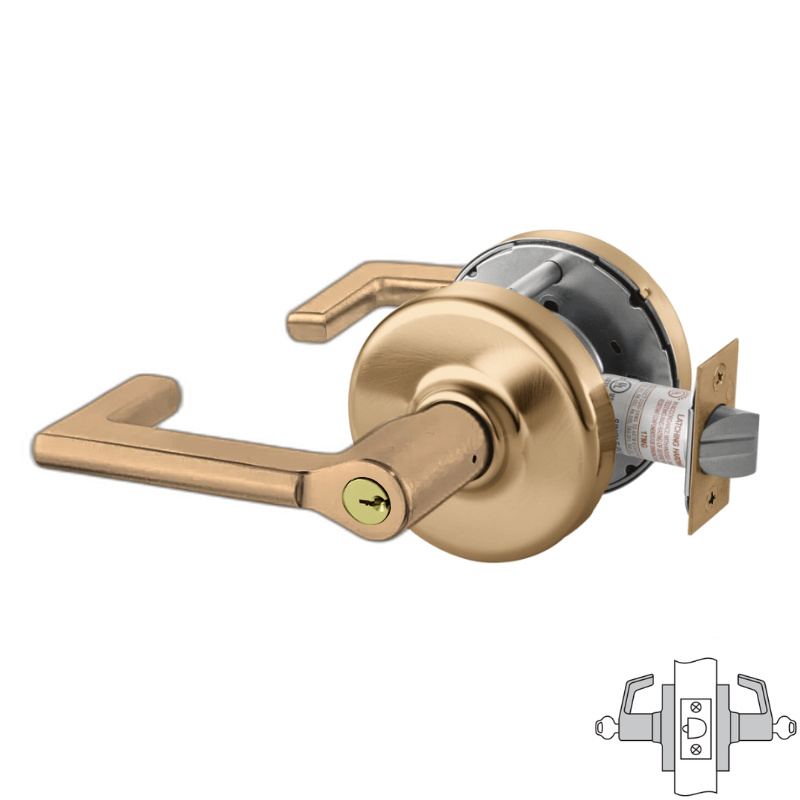

Corbin_Russwin_CLX3332-124D-612

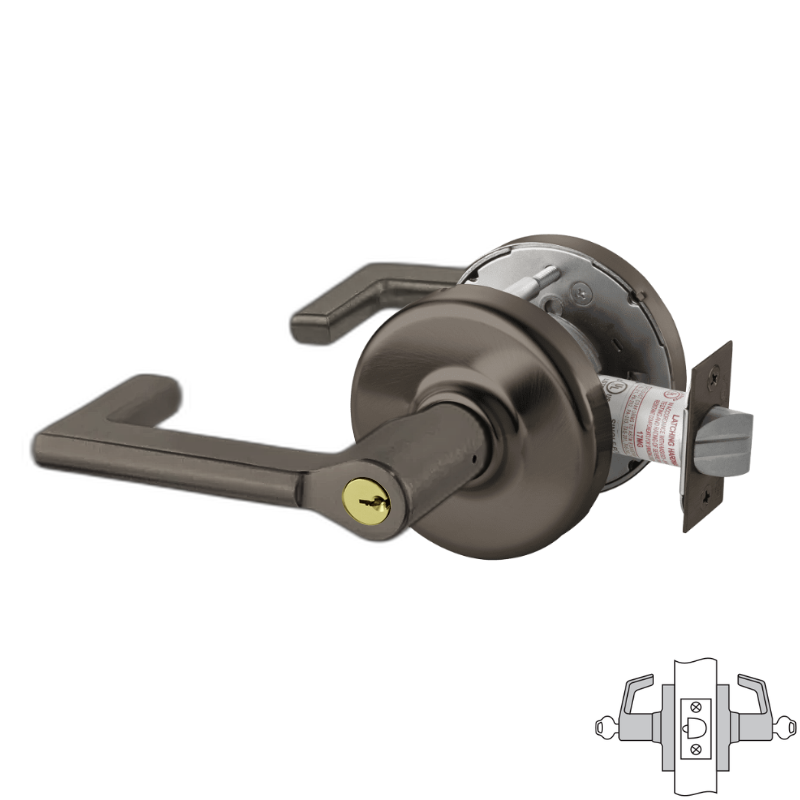

Corbin_Russwin_CLX3332-124D-613
Corbin_Russwin_CLX3332-124D-613E

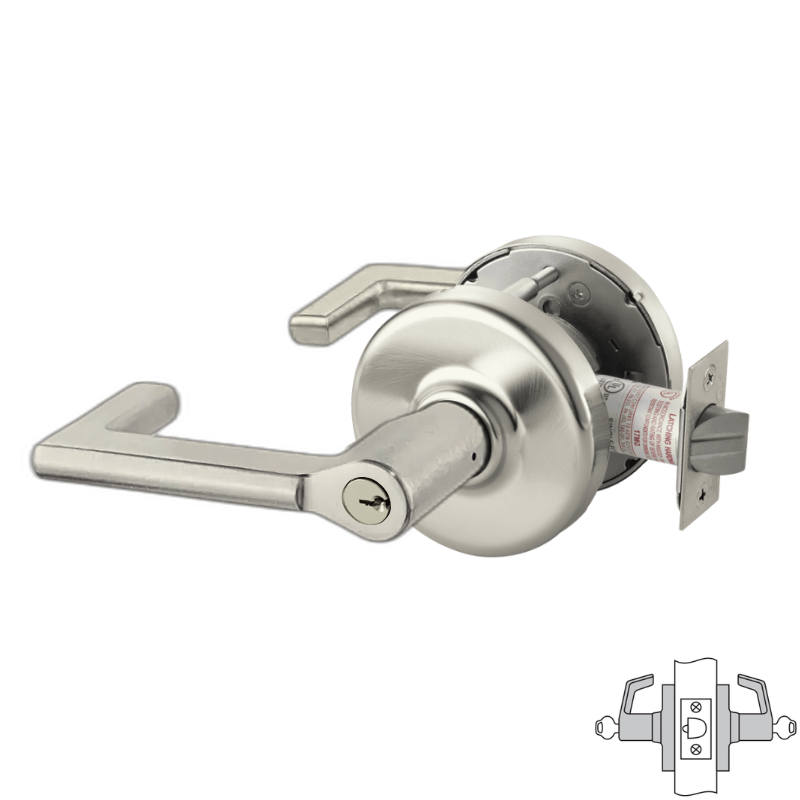

Corbin_Russwin_CLX3332-124D-619

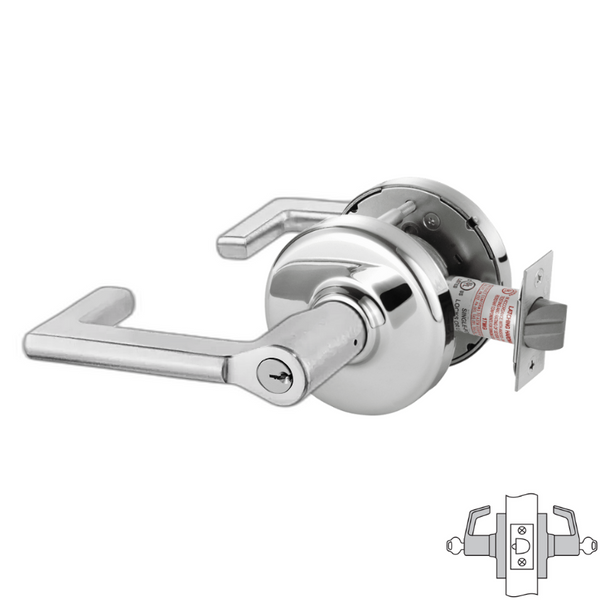

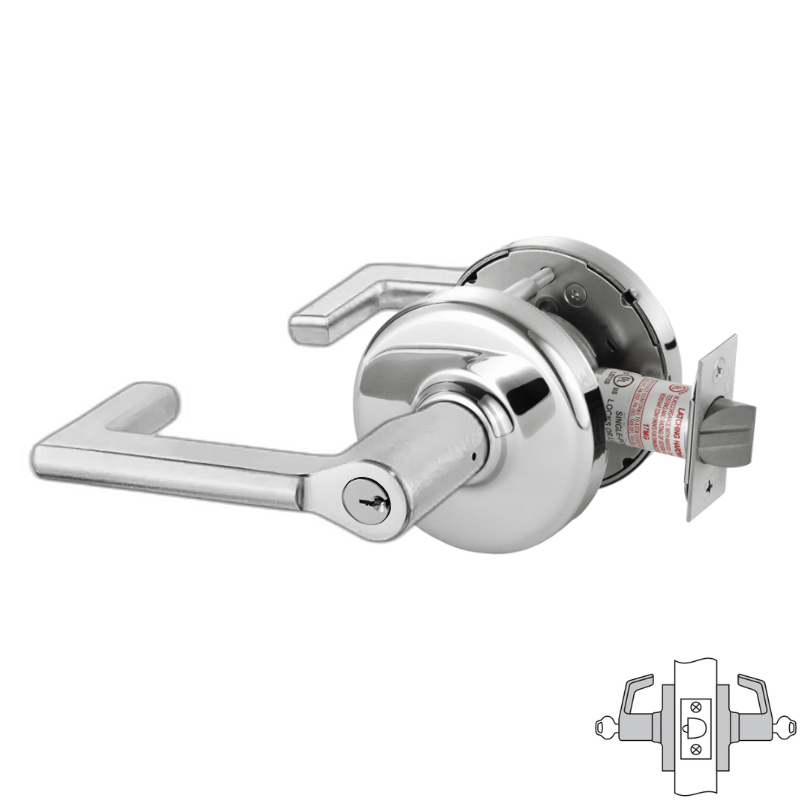

Corbin_Russwin_CLX3332-124D-625

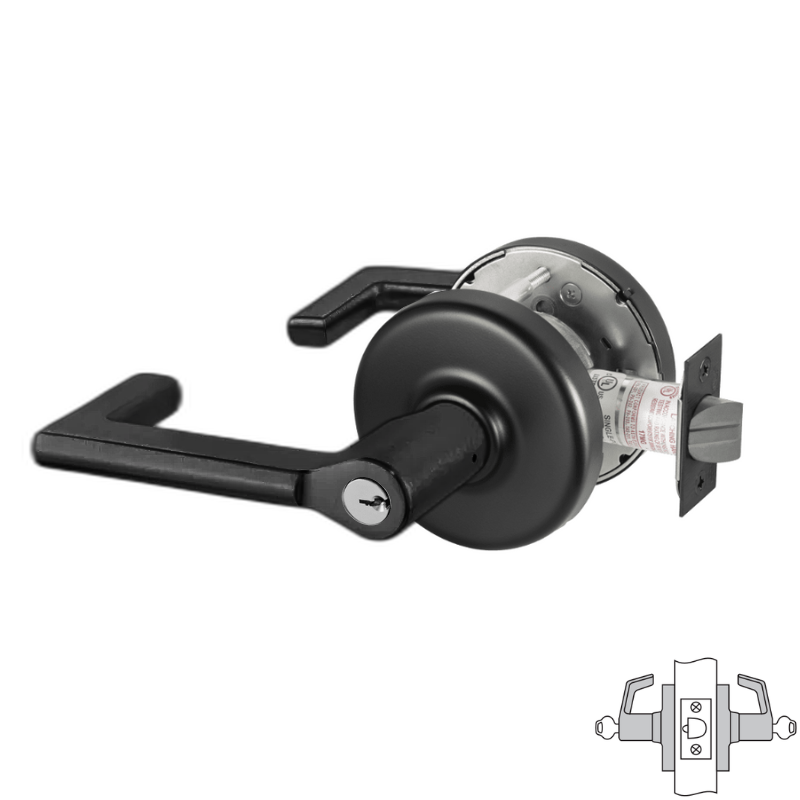

Corbin_Russwin_CLX3332-124D-BSP
Corbin_Russwin_CLX3332-124D-626
CLX3332Series
Corbin_Russwin_CLX3332-124D-626-M08
Corbin_Russwin_CLX3332-124D-626-CL6
Corbin_Russwin_CLX3332-124D-605
Corbin_Russwin_CLX3332-124D-606
Corbin_Russwin_CLX3332-124D-612
Corbin_Russwin_CLX3332-124D-613
Corbin_Russwin_CLX3332-124D-613E
Corbin_Russwin_CLX3332-124D-619
Corbin_Russwin_CLX3332-124D-625
Corbin_Russwin_CLX3332-124D-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3332-124D Cylindrical Lock, Institution Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3332124D626
$572.41/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

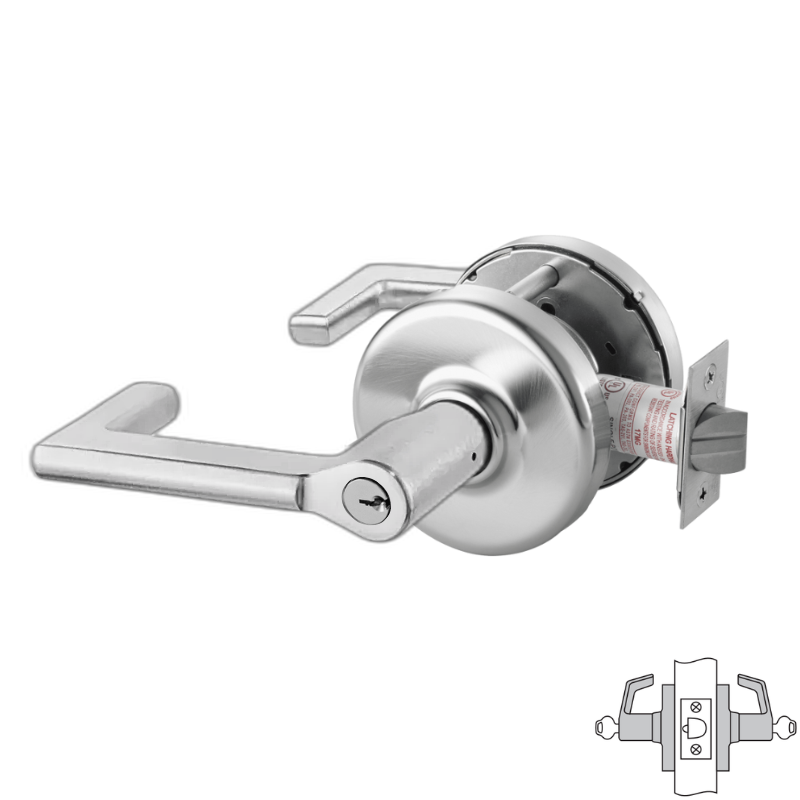

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3332-124D Institution Function Cylindrical Lever Lockset, Georgia 124D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

Corbin Russwin CLX3332-124D Institution Function Cylindrical Lever Lockset featuring the Georgia 124D Lever design. This Grade 1 security solution includes a 2-3/4" backset and 4-7/8" strike plate. The non-handed configuration allows for versatile installation in institutional settings, delivering professional-grade access control.

Function: Institutional or Utility

  • Deadlocking latchbolt by key either side (lever handles are freewheeling in locked position)
  • Should be used only in office or room with multiple entries
  • Keyed alike unless otherwise specified

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

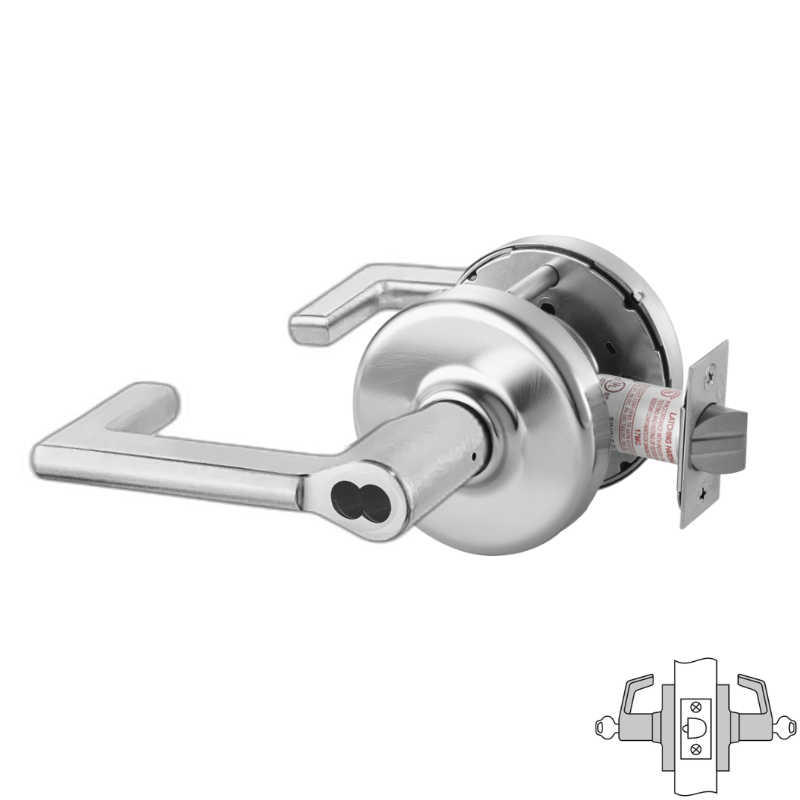

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3332 124D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 32 Institutional or Utility
Lever/Knob Design 124 - Geogia Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
