All CORBIN RUSSWIN Products

Corbin Russwin CLX3350-PZD Cylindrical Lock, Half Dummy Function, Non-Keyed

  • SKU: CLX3350PZD626
Corbin_Russwin_CLX3350-PZD-626
CLX3350Series

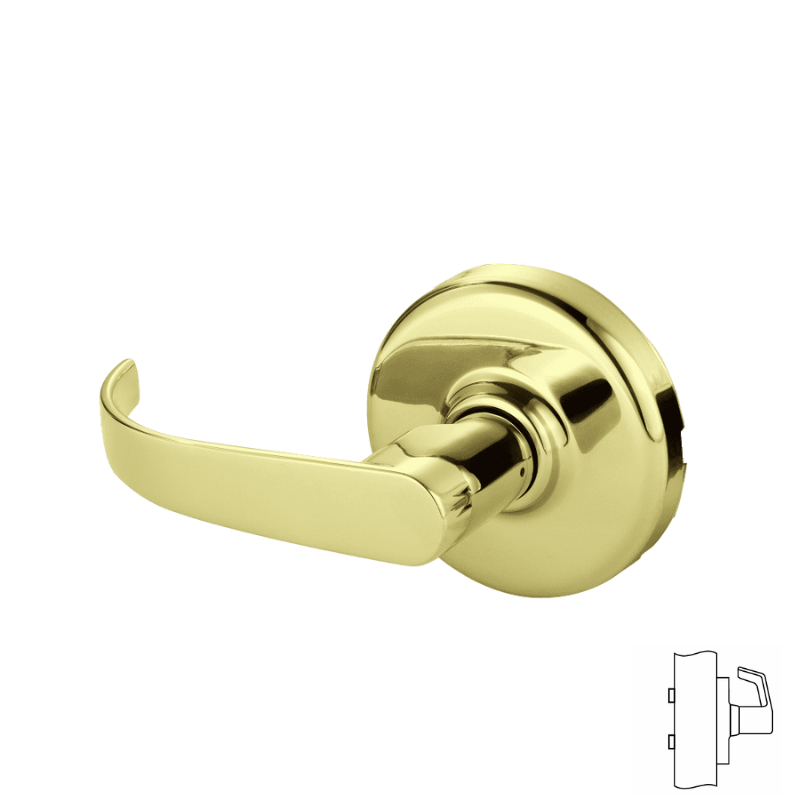

Corbin_Russwin_CLX3350-PZD-605

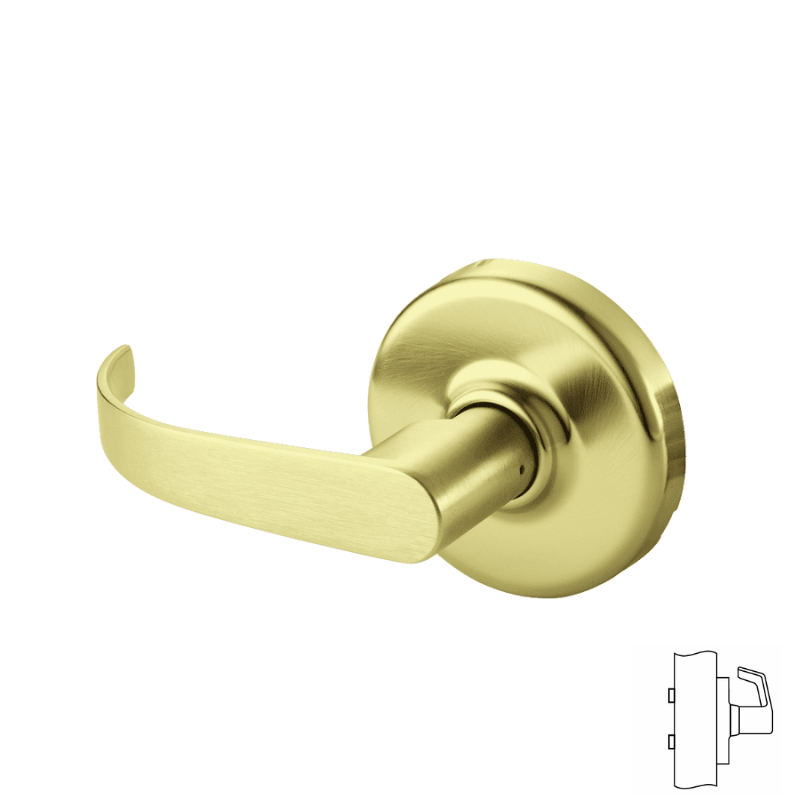

Corbin_Russwin_CLX3350-PZD-606

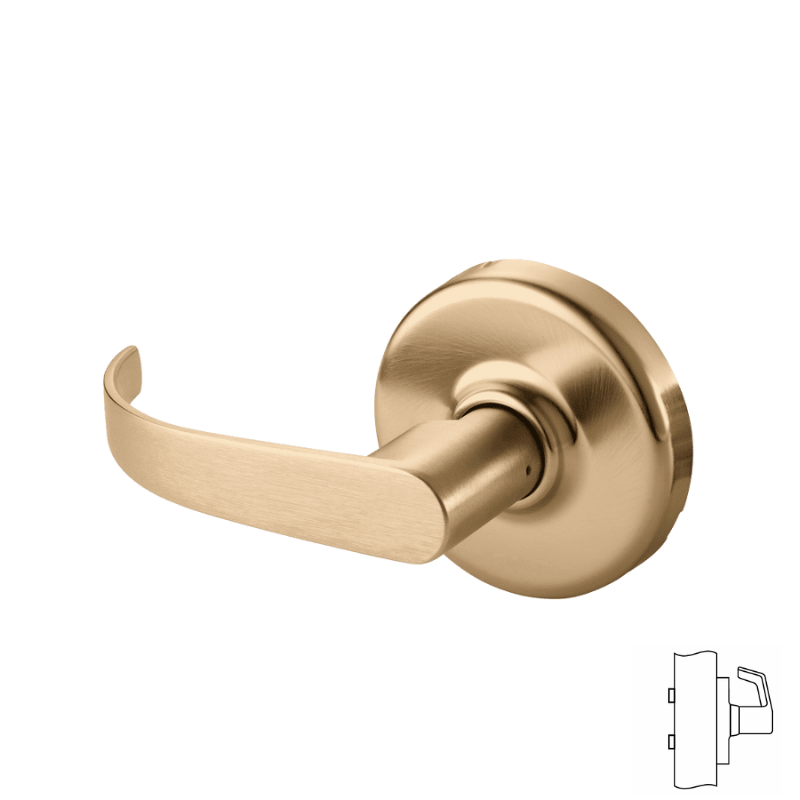

Corbin_Russwin_CLX3350-PZD-612

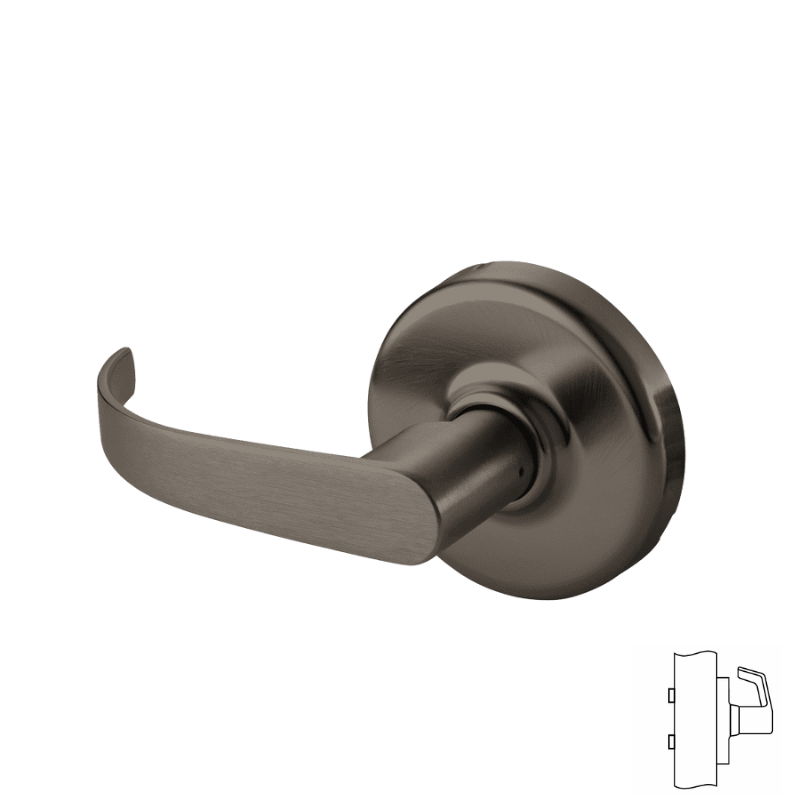

Corbin_Russwin_CLX3350-PZD-613
Corbin_Russwin_CLX3350-PZD-613e

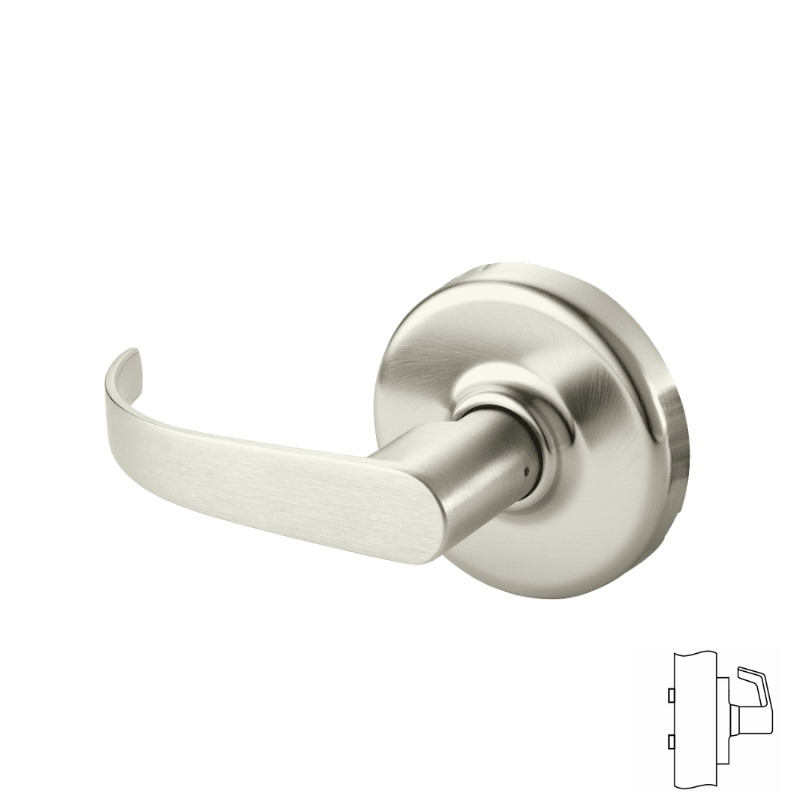

Corbin_Russwin_CLX3350-PZD-619
Corbin_Russwin_CLX3350-PZD-625

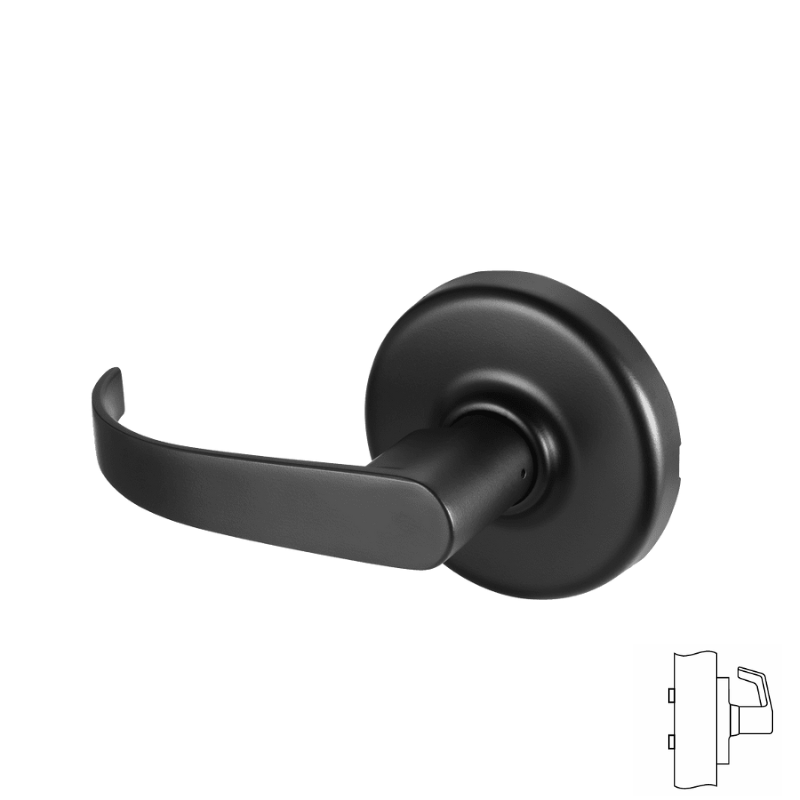

Corbin_Russwin_CLX3350-PZD-BSP
Corbin_Russwin_CLX3350-PZD-626
CLX3350Series
Corbin_Russwin_CLX3350-PZD-605
Corbin_Russwin_CLX3350-PZD-606
Corbin_Russwin_CLX3350-PZD-612
Corbin_Russwin_CLX3350-PZD-613
Corbin_Russwin_CLX3350-PZD-613e
Corbin_Russwin_CLX3350-PZD-619
Corbin_Russwin_CLX3350-PZD-625
Corbin_Russwin_CLX3350-PZD-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3350-PZD Cylindrical Lock, Half Dummy Function, Non-Keyed

  • SKU: CLX3350PZD626
$165.30/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3350-PZD Half Dummy Function Cylindrical Lever Lockset, Princeton Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3350-PZD Cylindrical Lock features a Half Dummy Function with a non-keyed Princeton Lever. It has a 2-3/4" backset and a 4-7/8" strike. This Grade 1 lock is non-handed and designed with industry expertise for a professional and objective solution.

Function: Half Dummy

  • Lever acts as pull only; no operation
  • Lever is rigid
    Manufacturer Corbin Russwin
    SKU CLX3350-PZD
    Grade Grade 1
    Installation Commercial
    Origin United States
    Unit of Measure Each
    Base Material Brass, Bronze
    UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
    Limited Warranty 20 Year Limited Warranty
    Fire Rated 3 Hours {A}
    Burglar Rated No
    Function 50-Half Dummy
    Lever/Knob Design PZ- Princeton Lever
    Lever/Knob Design Family Straight Lever
    Rose/Escutcheon Design D Rose
    Rose/Escutcheon Dimensions 3-1/2"
    Cylinder Type Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/4" to 2"
    Std. Latch Number 867F20
    Std. Latch Type Springlatch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 1"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number SA114
    Std. Strike Type ANSI Curved Lip Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock

      Product Cut Sheet
