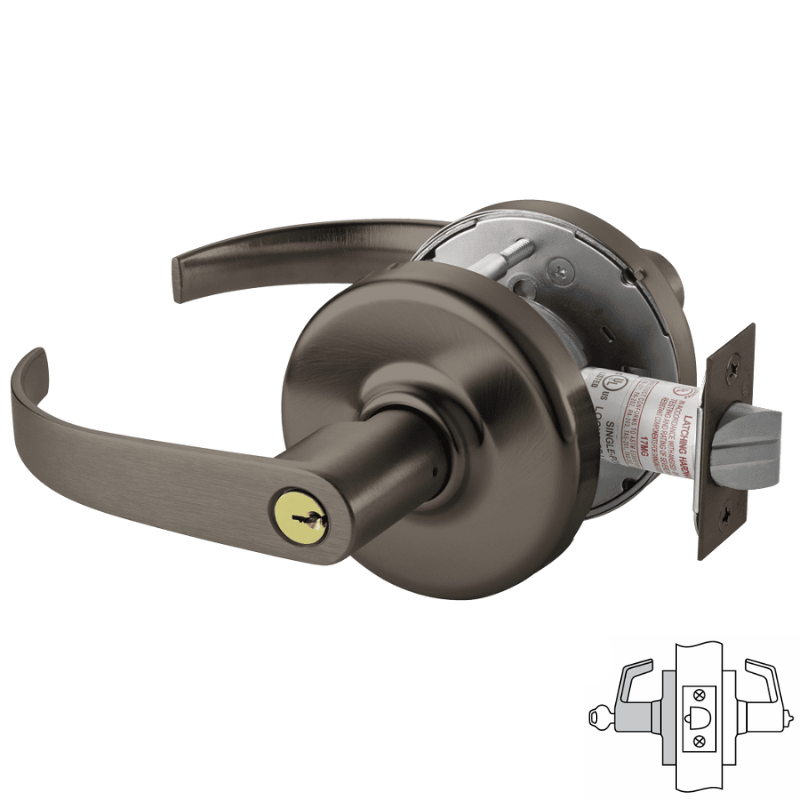

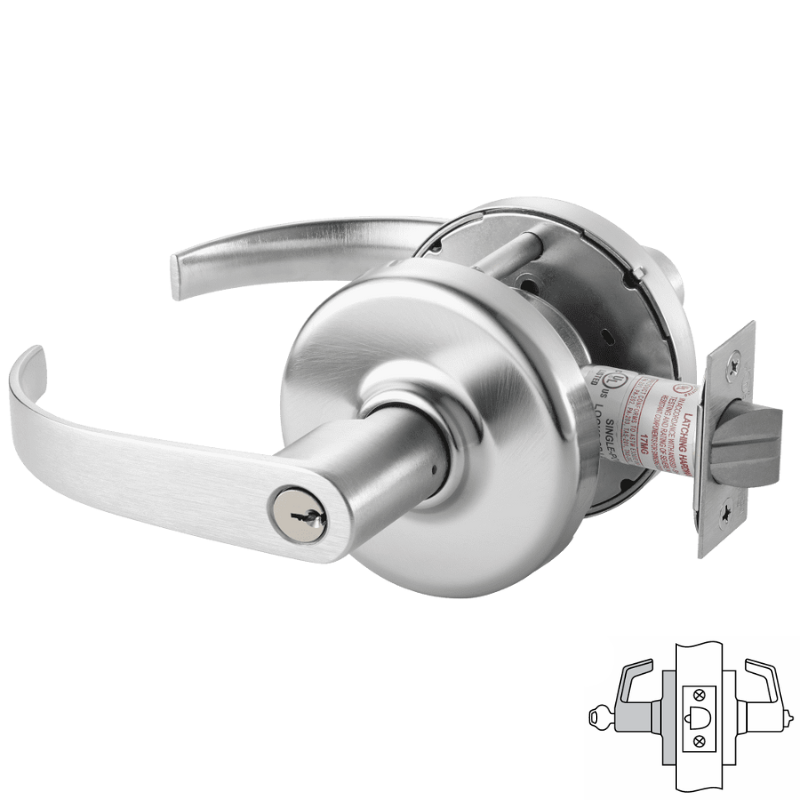

Corbin Russwin CLX3351-PZD Cylindrical Lock, Entrance or Office Function, Multiple Core Options

  • SKU: CLX3351PZD626

Corbin Russwin CLX3351-PZD Cylindrical Lock, Entrance or Office Function, Multiple Core Options

  • SKU: CLX3351PZD626
Sale price$461.73/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3351-PZD Entrance or Office Function Cylindrical Lever Lockset, Princeton Lever, 2-3/4 Backset, 4-7/8 Strike, Multiple Key Options, Non-Handed

The Corbin Russwin CLX3351-PZD Cylindrical Lock offers versatile security options for entrance or office function, including multiple core and key options. With a 2-3/4 backset and 4-7/8 strike, this lockset features the reliable Princeton Lever and is non-handed for ease of installation.

Function: Entrance or Office

  • Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position)
  • Turning inside lever unlocks outside lever
  • Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until the button is manually turned to unlock position
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

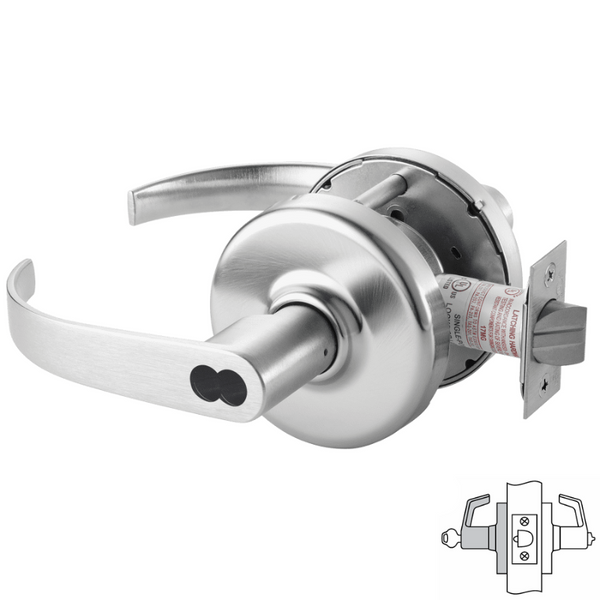

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3351 PZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 51- Entrance or Office
Function Family Entrance/Office
ANSI Function F109 - Entry/Office
Lever/Knob Design PZ - Princeton Lever
Lever/Knob Design Family Curved Return Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
