Corbin Russwin CLX3355-106D Cylindrical Lock, Classroom Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3355106D626
$456.87/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

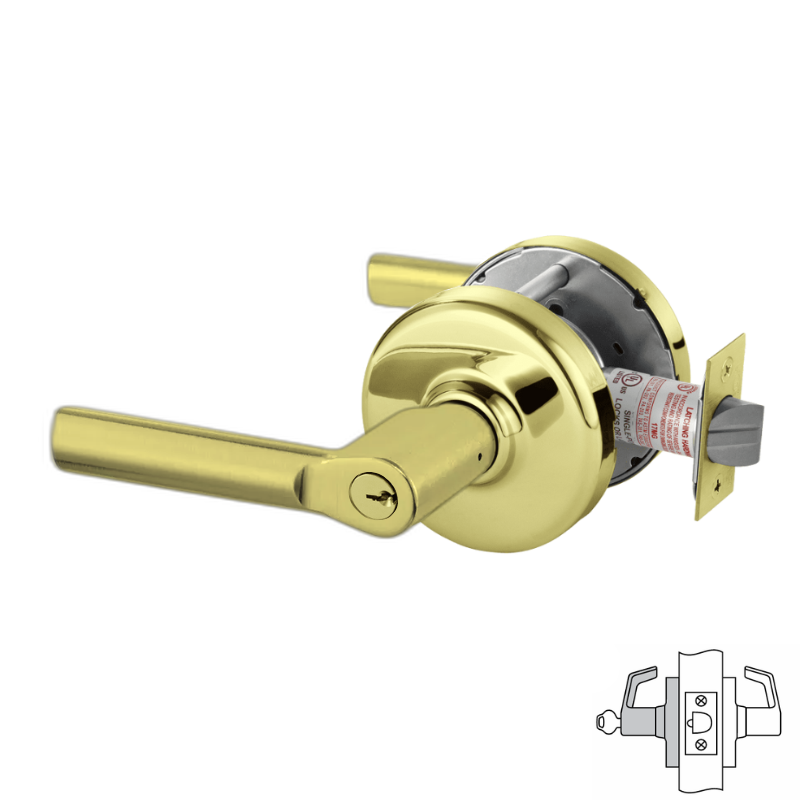

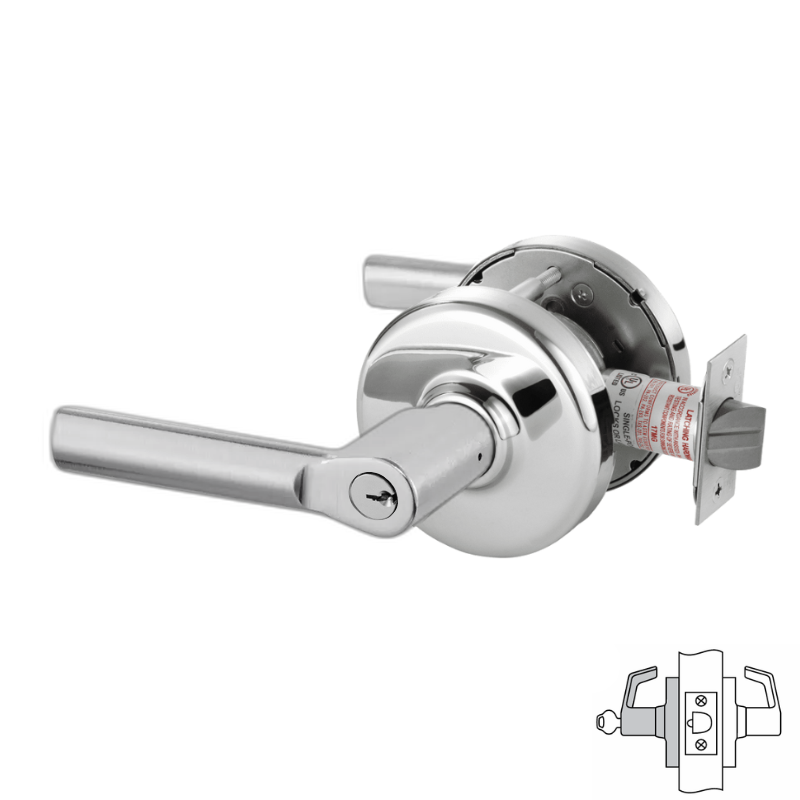

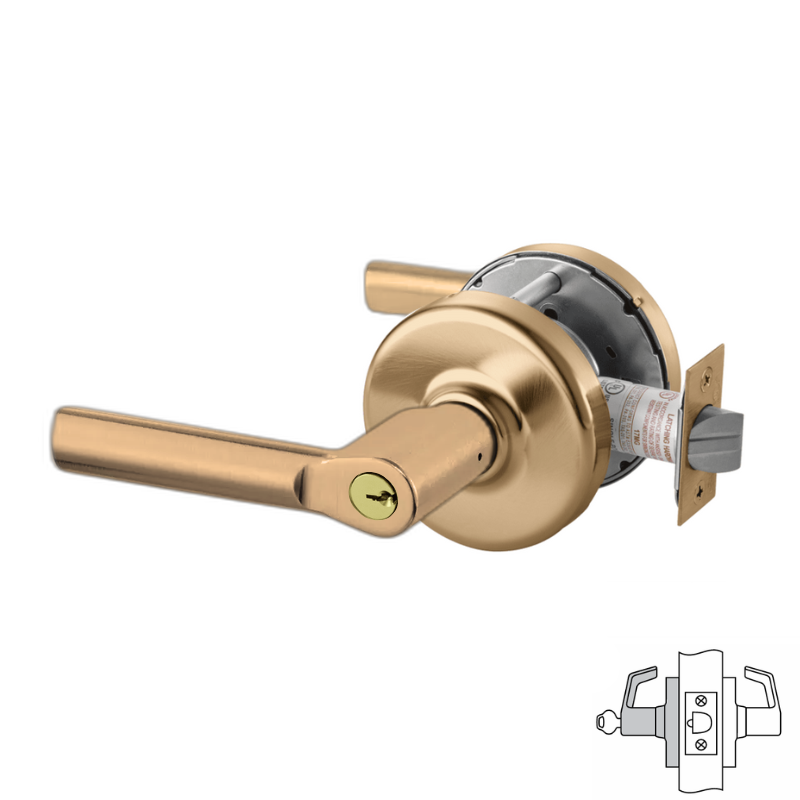

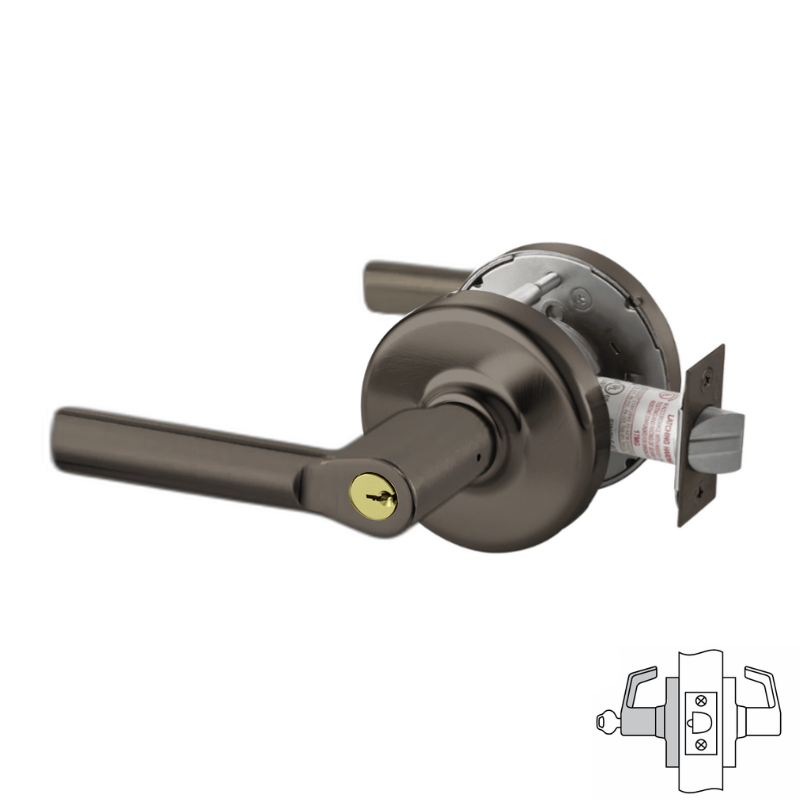

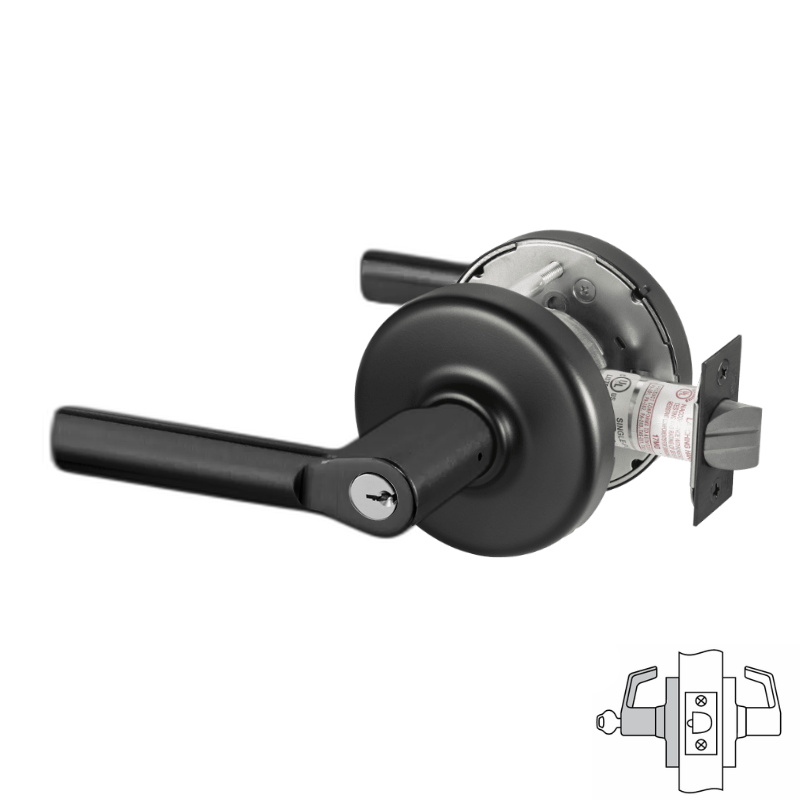

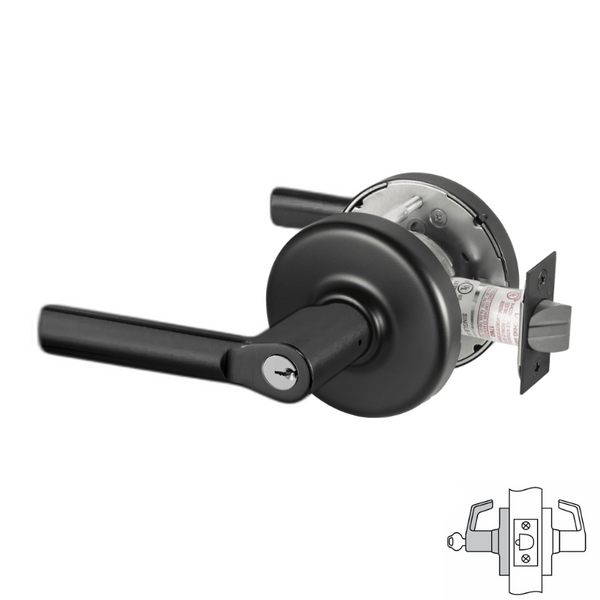

Corbin Russwin CLX3355-106D Classroom Function Cylindrical Lever Lockset, Salvador 106D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3355-106D Cylindrical Lock is equipped with a Salvador 106D lever and features a non-handed design. With a 2-3/4 backset and 4-7/8 strike, this Grade 1 lock provides secure and reliable classroom function. Choose from multiple core options to meet your specific needs.

Function: Classroom

  • Deadlocking latchbolt by lever either side, except when key outside locks outside lever (lever handle is freewheeling in locked position)
  • Outside lever unlocked by key outside
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

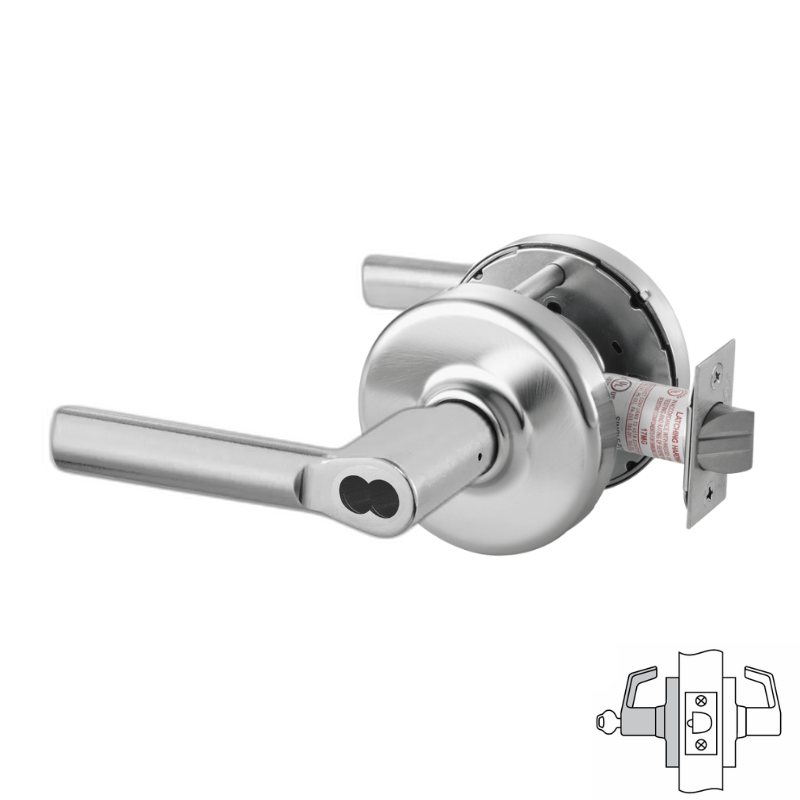

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3355 106D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 55 Classroom
Lever/Knob Design 106 - Salvador Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
