Corbin Russwin CLX3357-PZD Cylindrical Lock, Storeroom or Closet Function, Multiple Core Options

  • SKU: CLX3357PZD626
$449.58/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3357-PZD Storeroom Function Cylindrical Lever Lockset, Princeton Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

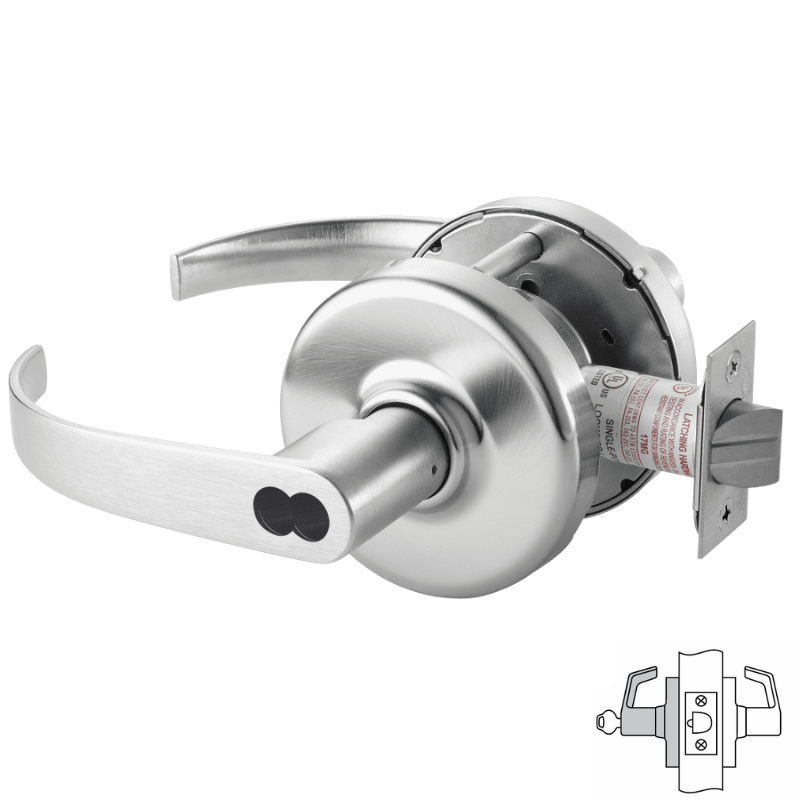

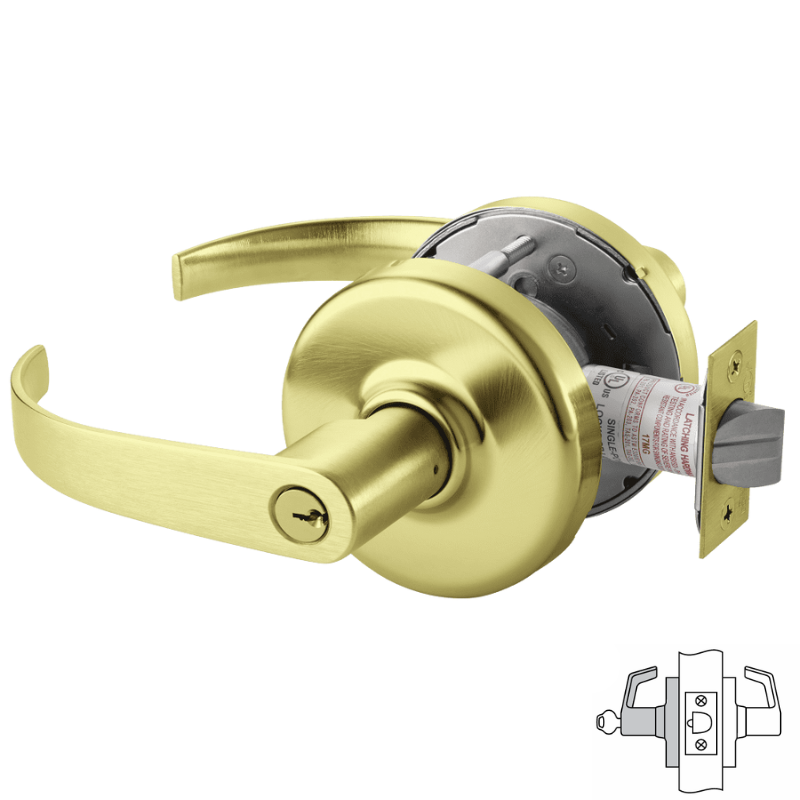

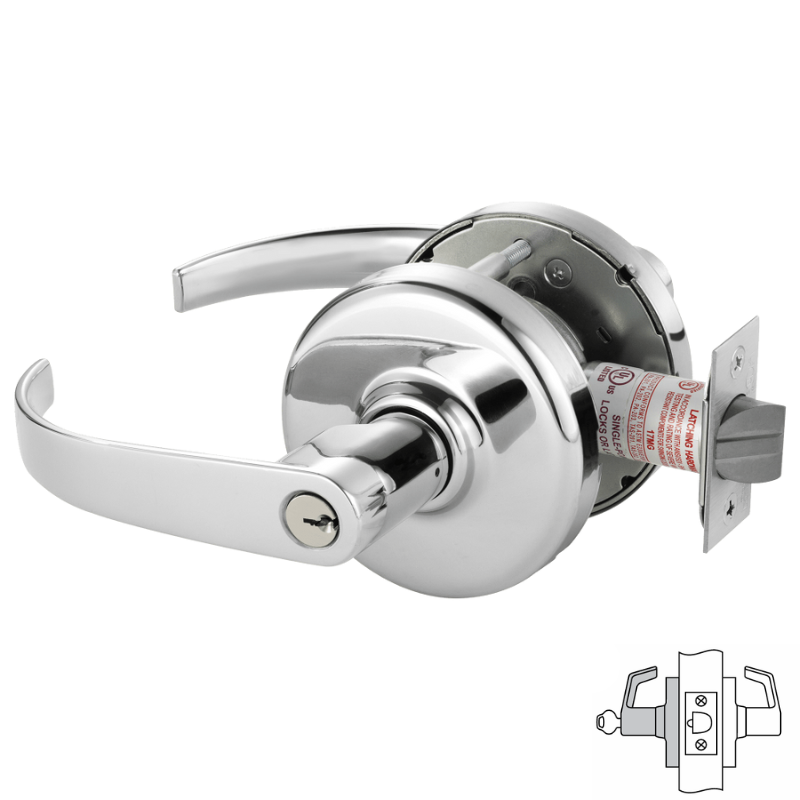

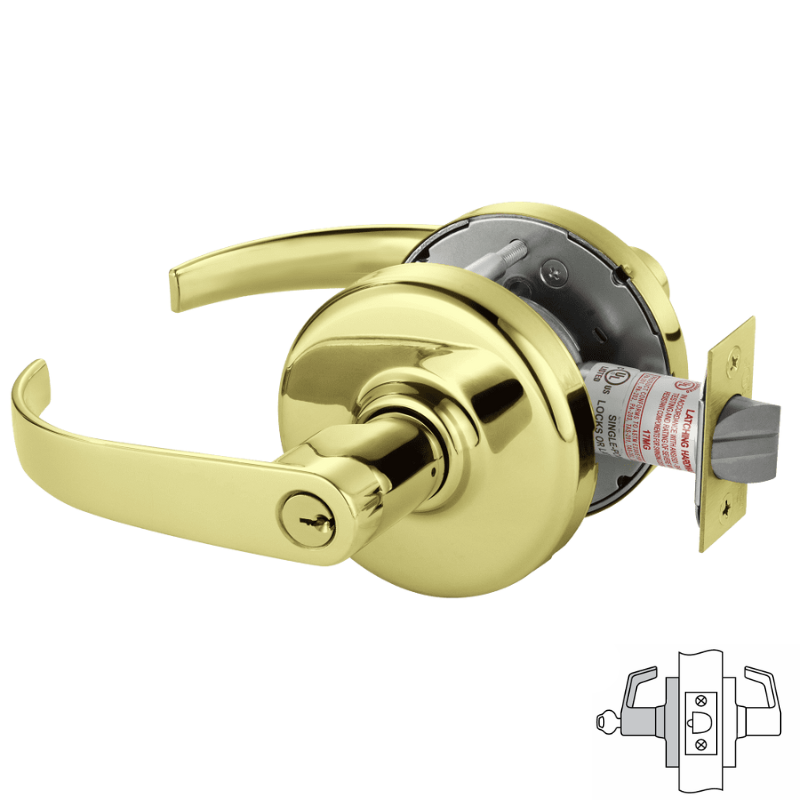

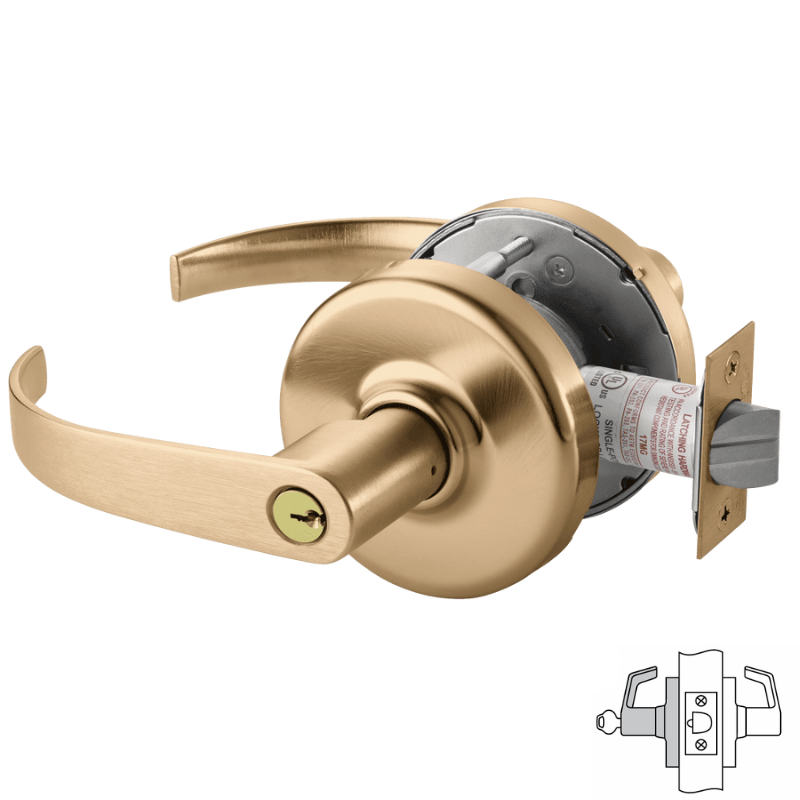

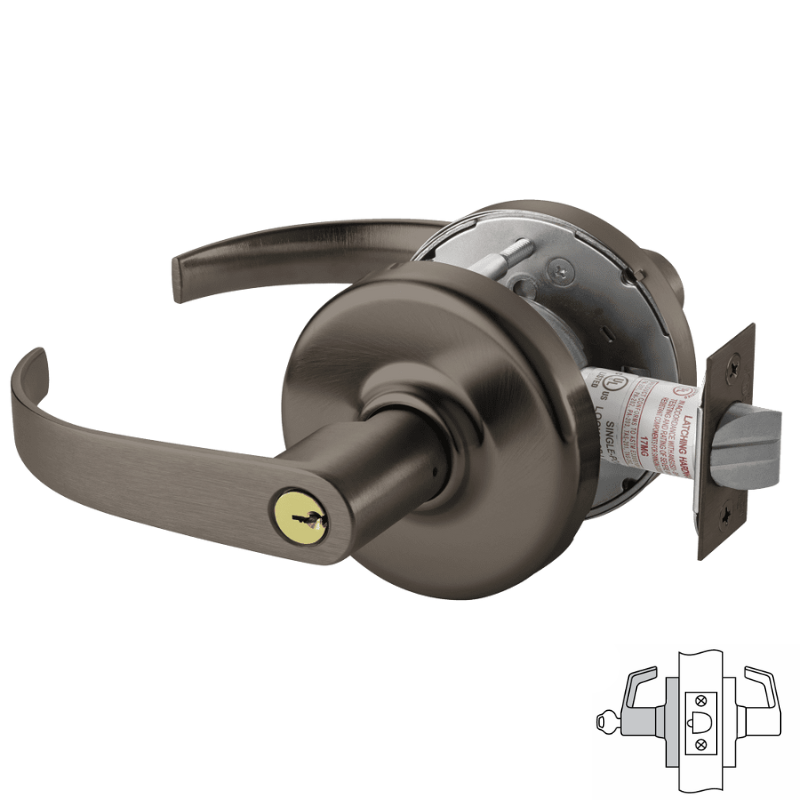

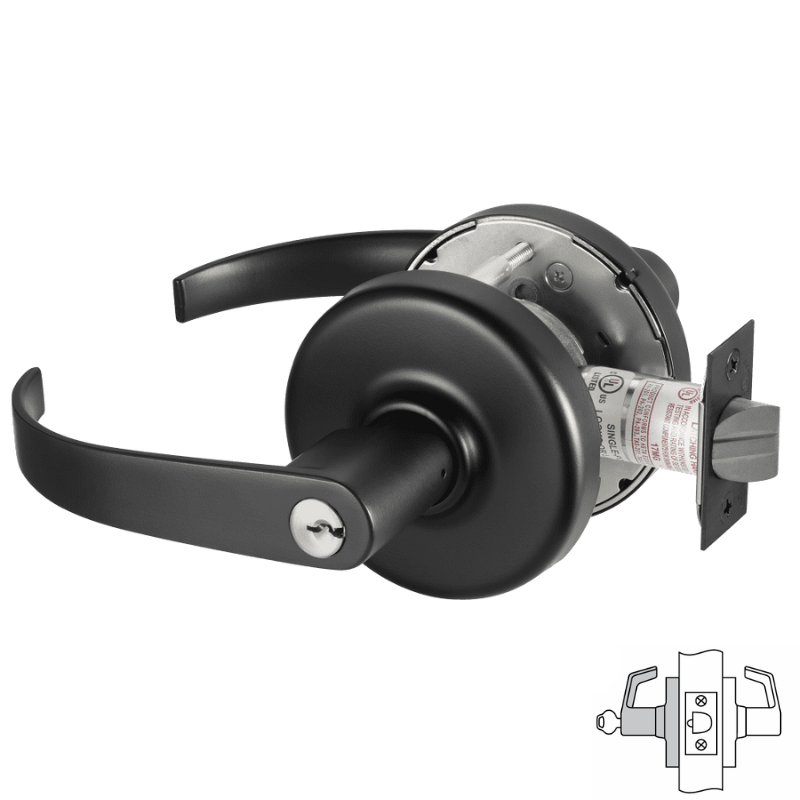

The Corbin Russwin CLX3357-PZD Cylindrical Lock is a Grade 1 lever lockset with a Princeton lever for use in storeroom or closet function. With a backset of 2-3/4 inches and a strike of 4-7/8 inches, this non-handed lock offers reliable security for any commercial or industrial setting.

Function: Storeroom or Closet

  • Deadlocking latchbolt by key in outside lever or by rotating inside lever (lever handle is freewheeling in locked position)
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys
  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3357 PZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 57 Storeroom or Closet
Lever/Knob Design PZ - Princeton Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
