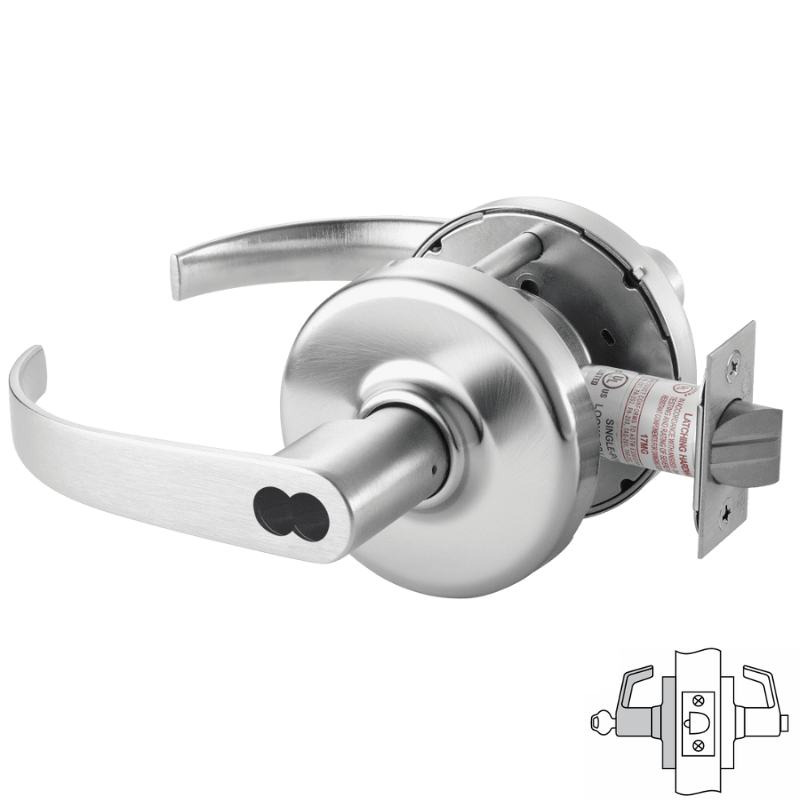

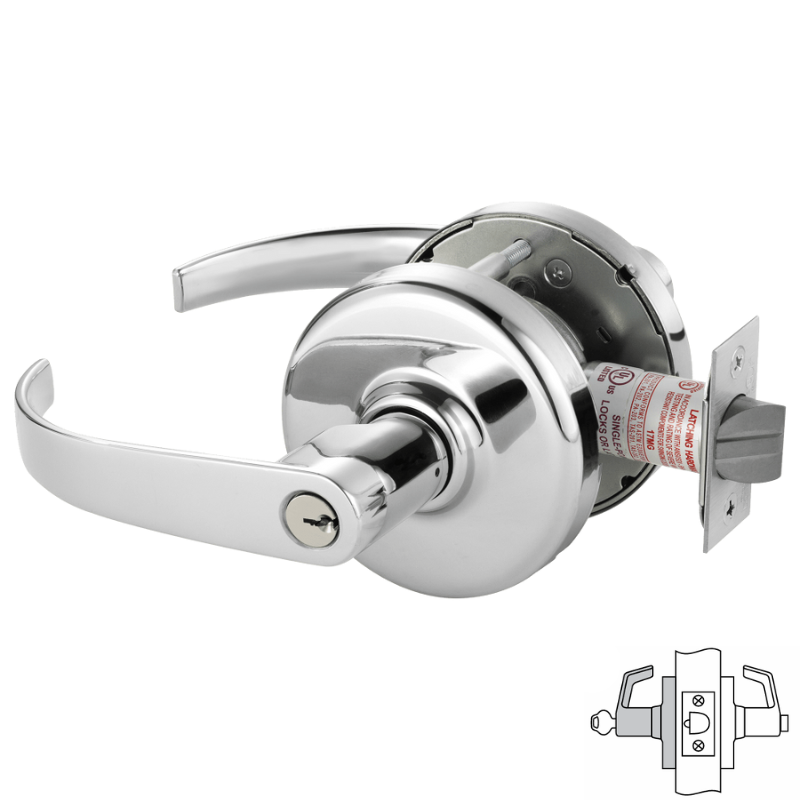

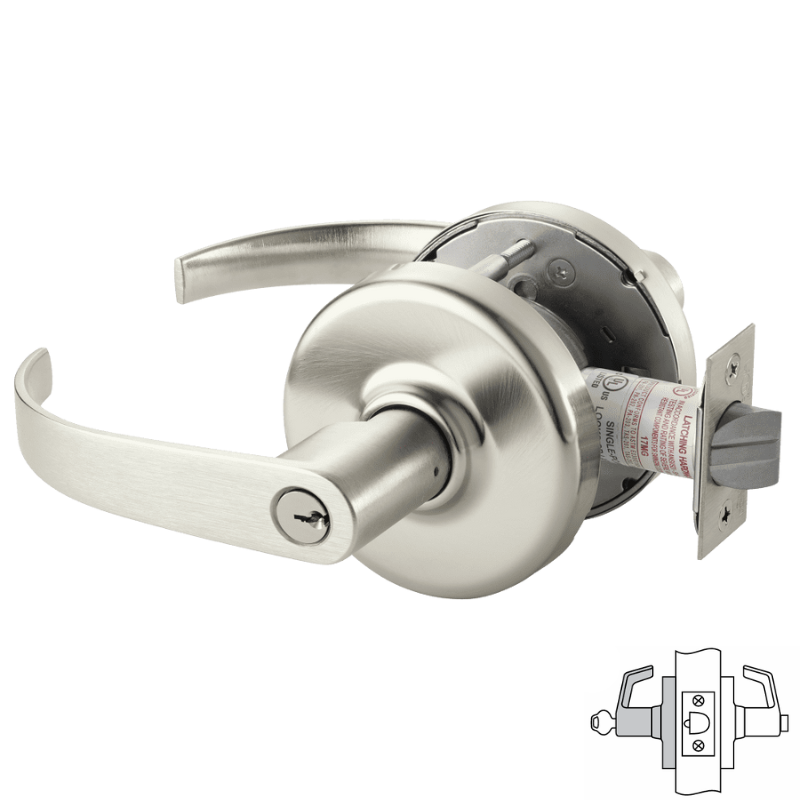

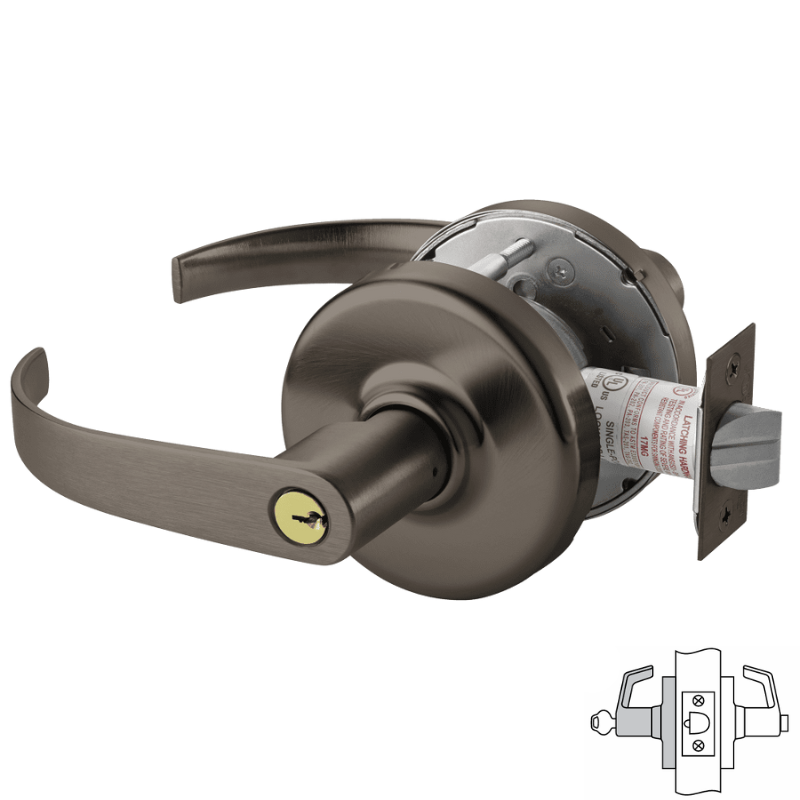

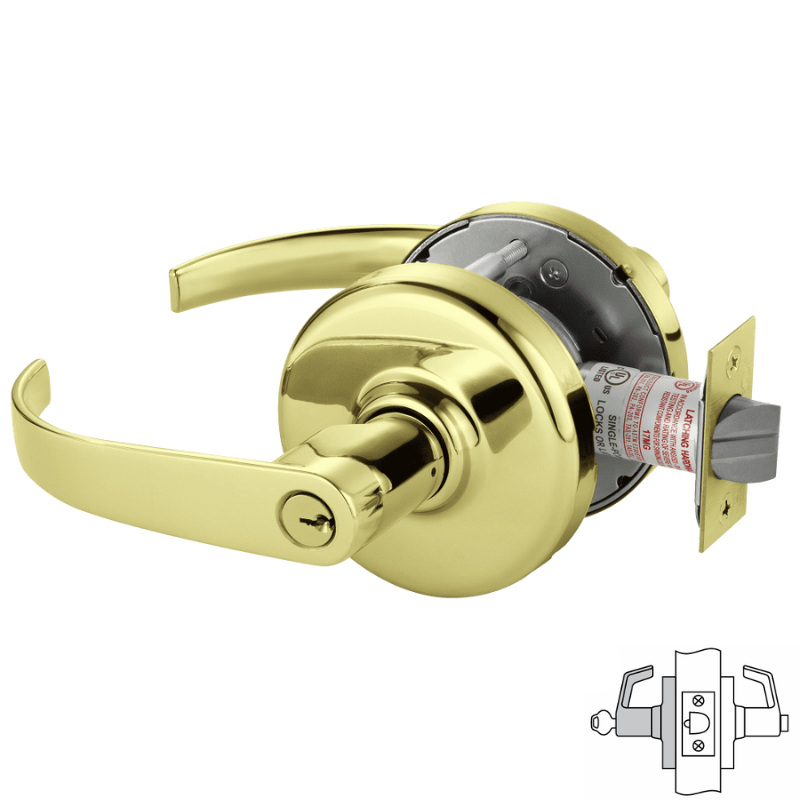

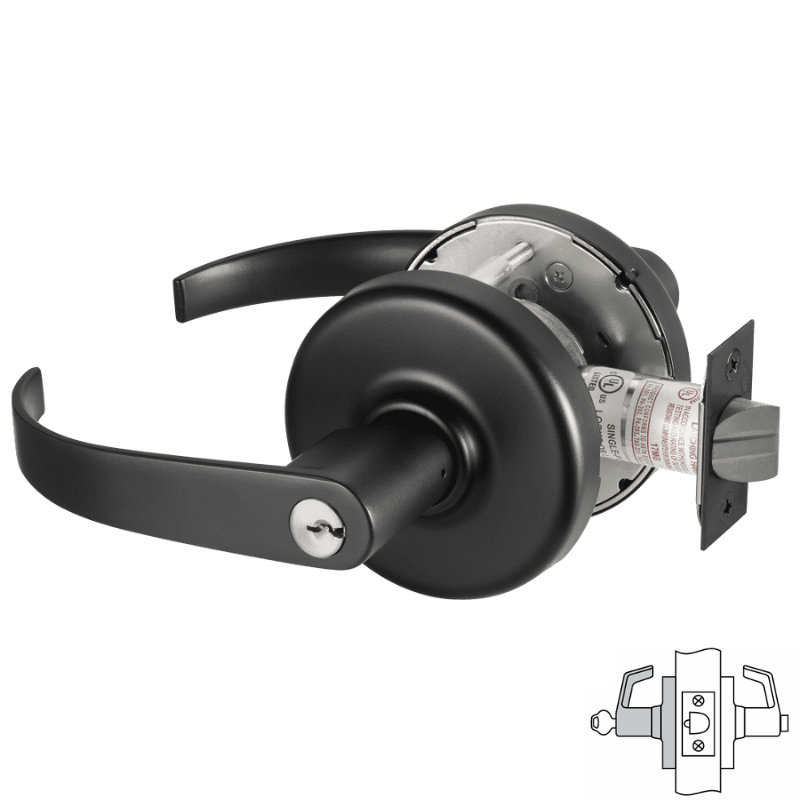

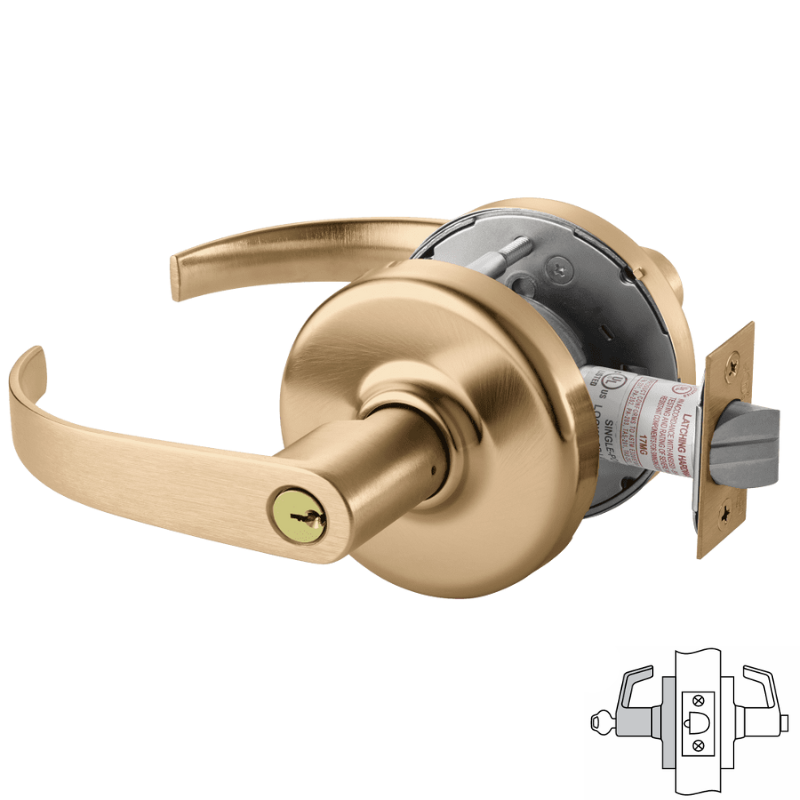

Corbin Russwin CLX3361-PZD Cylindrical Lock, Entry or Office Function, Multiple Core Options

  • SKU: CLX3361PZD626

Corbin Russwin CLX3361-PZD Cylindrical Lock, Entry or Office Function, Multiple Core Options

  • SKU: CLX3361PZD626
Sale price$483.33/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3361-PZD Entry or Office Function Cylindrical Lever Lockset, Princeton Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3361-PZD is a Grade 1 Cylindrical Lever Lockset specifically designed for entry or office use. It features a Princeton Lever and is available with multiple core options, a 2-3/4" backset, and a 4-7/8" strike. This non-handed lockset is expertly crafted with precision and functionality in mind.

Function: Entry or Office

  • Deadlocking latchbolt by lever either side, except when push button locks outside lever
  • Push button released by turning inside lever or by key in outside lever (lever handle is freewheeling in locked position)
  • Closing door does not release push button
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys
  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3361 PZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 61 Entry or Office
Lever/Knob Design PZ - Princeton Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
