Corbin Russwin CLX3370-AZD Cylindrical Lock, Full Dummy Function, Non-Keyed

  • SKU: CLX3370AZD626
$329.09/ea
Available (2 Weeks)
2 Weeks Lead Time

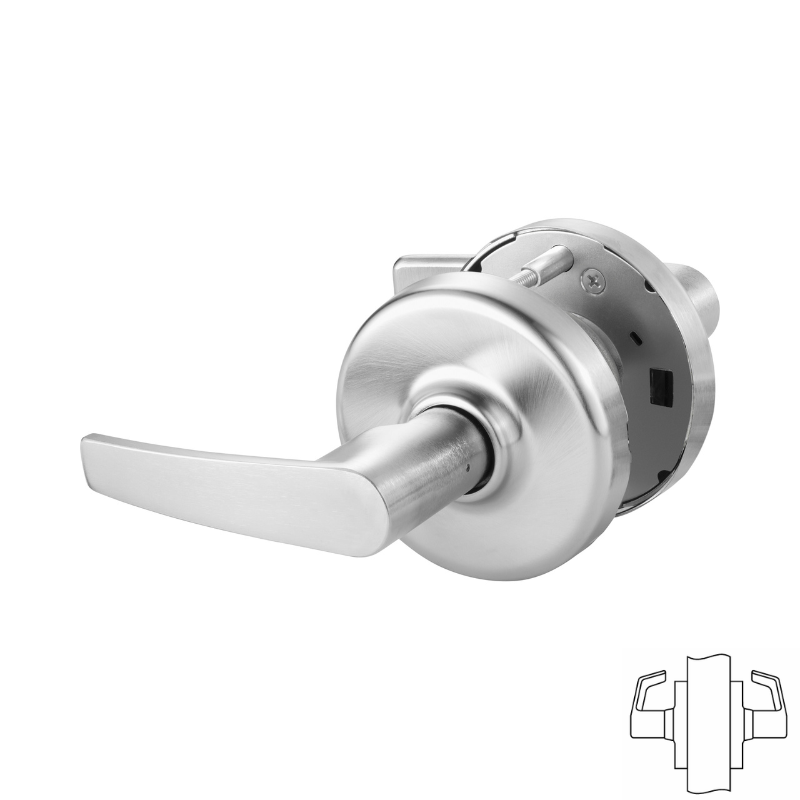

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3370-AZD Full Dummy Function Cylindrical Lever Lockset, Armstrong Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3370-AZD Cylindrical Lock features a full dummy function, Armstrong lever, 2-3/4" backset, and 4-7/8" strike. It is a Grade 1 lock and is non-keyed for added security. This non-handed lockset is suitable for a variety of applications and offers reliable performance.

Function: Full Dummy Trim

  • Levers act as pulls only; no operation
  • Levers are rigid
Manufacturer Corbin Russwin
SKU CLX3370-AZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 70 - Full Dummy
Lever/Knob Design AZ - Armstrong Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock

    Product Cut Sheet
