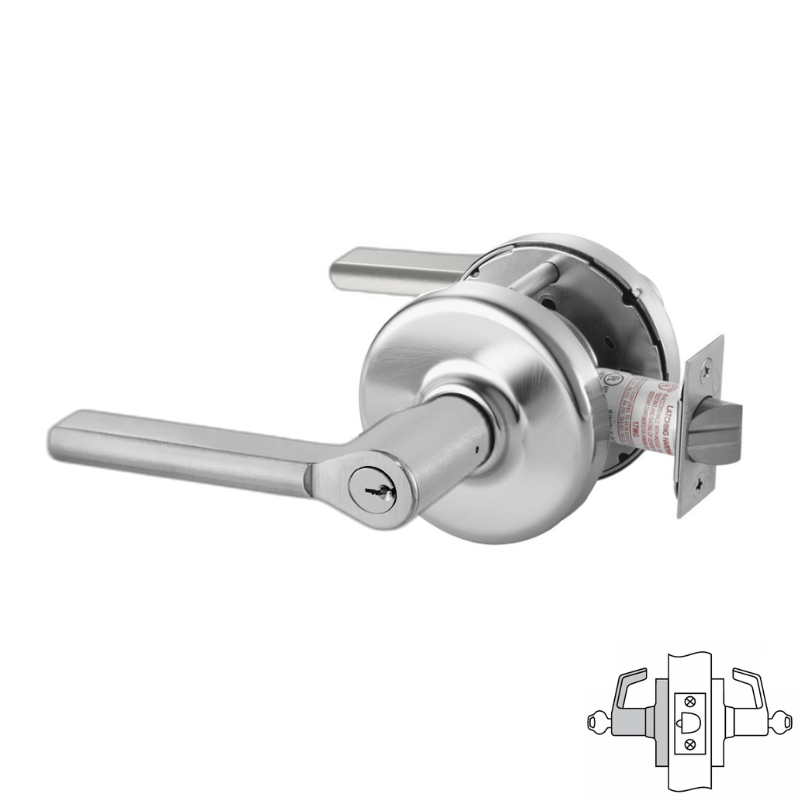

Corbin Russwin CLX3372-102D Cylindrical Lock, Public Restroom Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3372102D626

Corbin Russwin CLX3372-102D Cylindrical Lock, Public Restroom Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3372102D626
Sale price$544.49/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3372-102D Public Restroom Function Cylindrical Lever Lockset, Georgia 102D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3372-102D Cylindrical Lock features a Public Restroom Function and a Decorative Lever, along with multiple core options. This Grade 1 lock is non-handed, with a Georgia 102D Lever and a 2-3/4" backset, with a 4-7/8" strike.

Function: Apartment, Exit or Public Toilet

  • Deadlocking latchbolt by lever either side, except when key inside locks outside lever (lever handle is freewheeling in locked position)
  • Key outside retracts latchbolt
  • Key inside unlocks outside lever
  • Inside lever always free
  • Keyed alike unless otherwise specified

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys
  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3372 102D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 72 Apartment, Exit or Public Toilet
Lever/Knob Design 102 - Georgia Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
