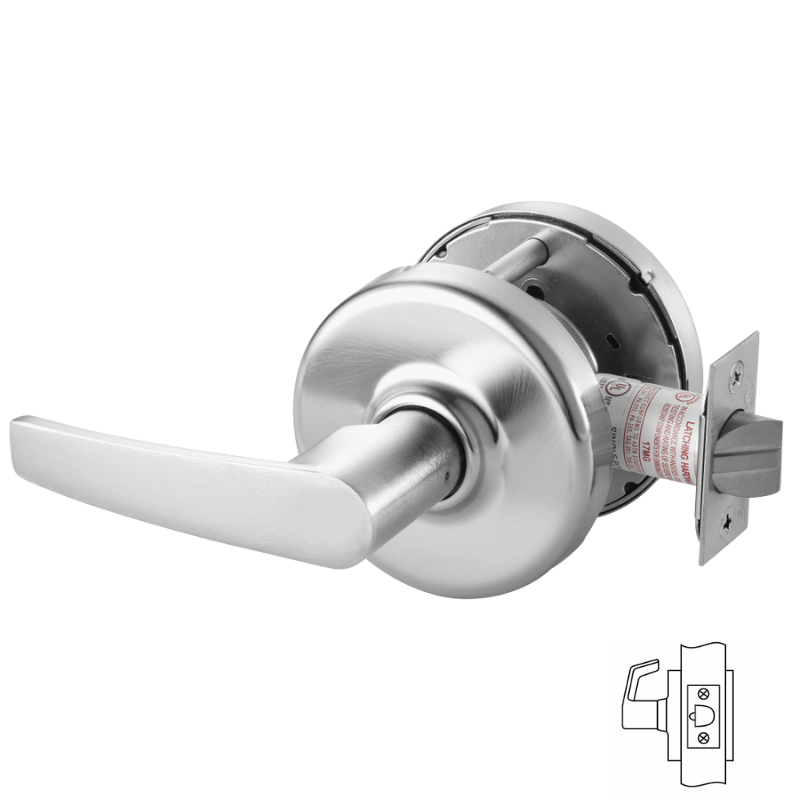

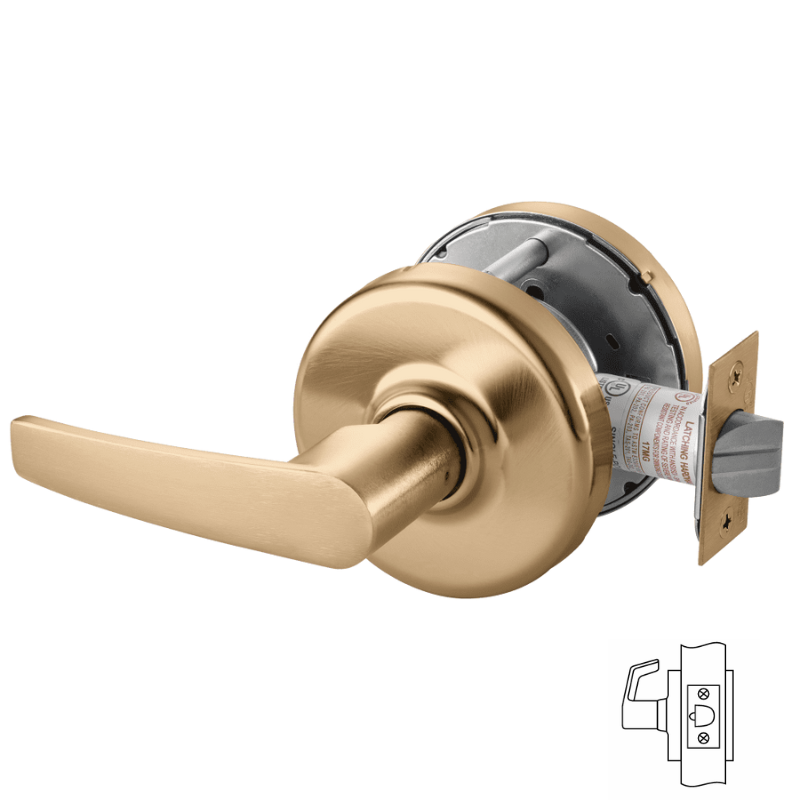

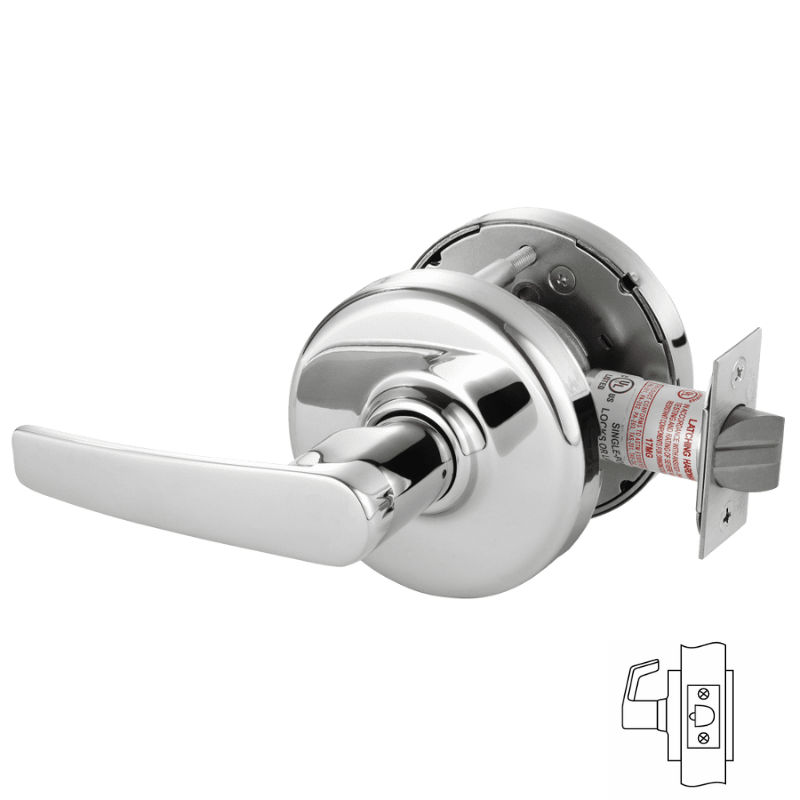

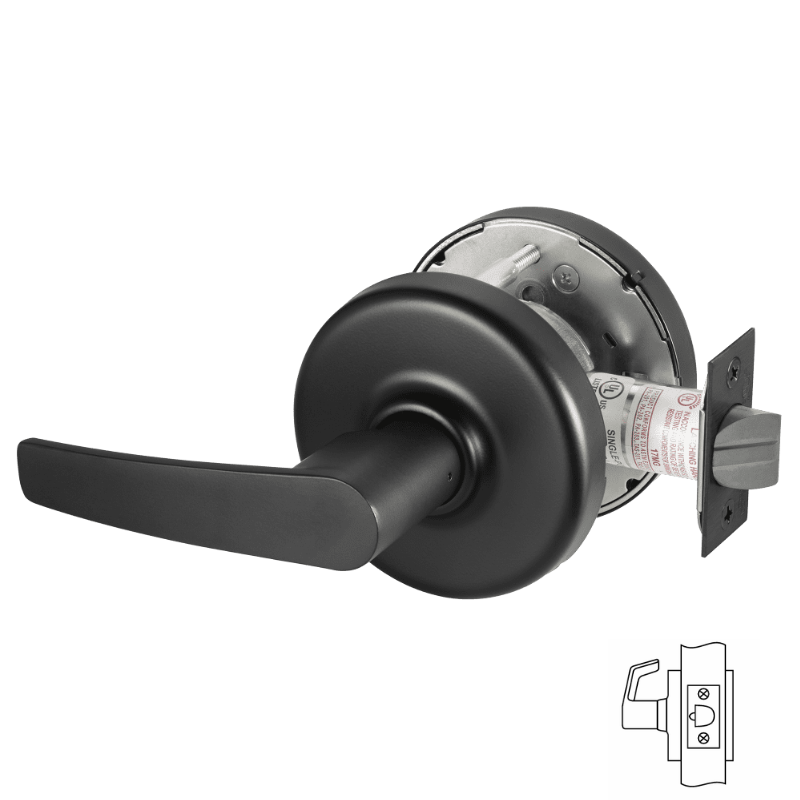

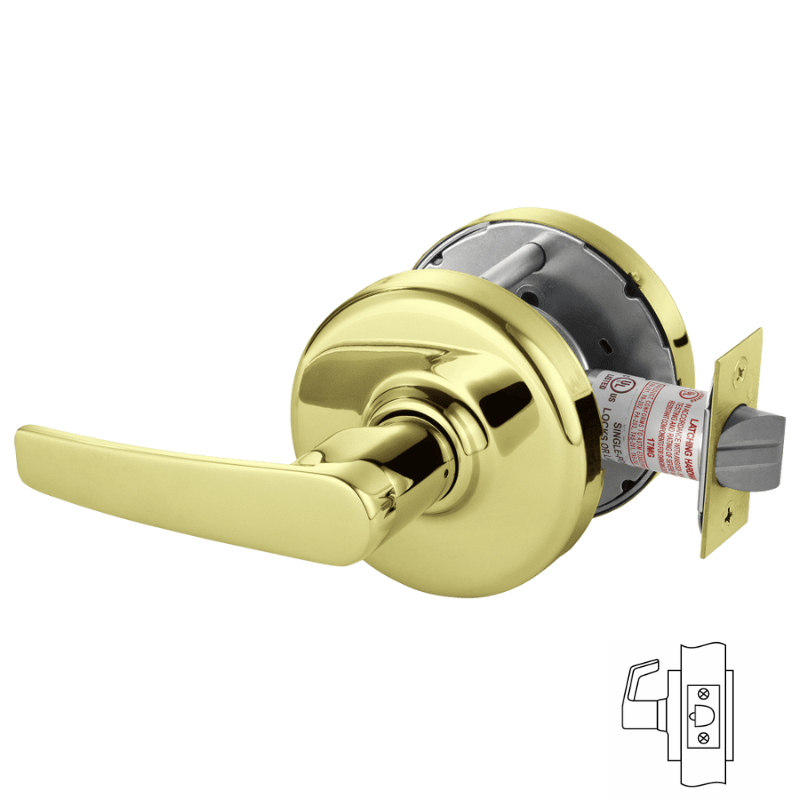

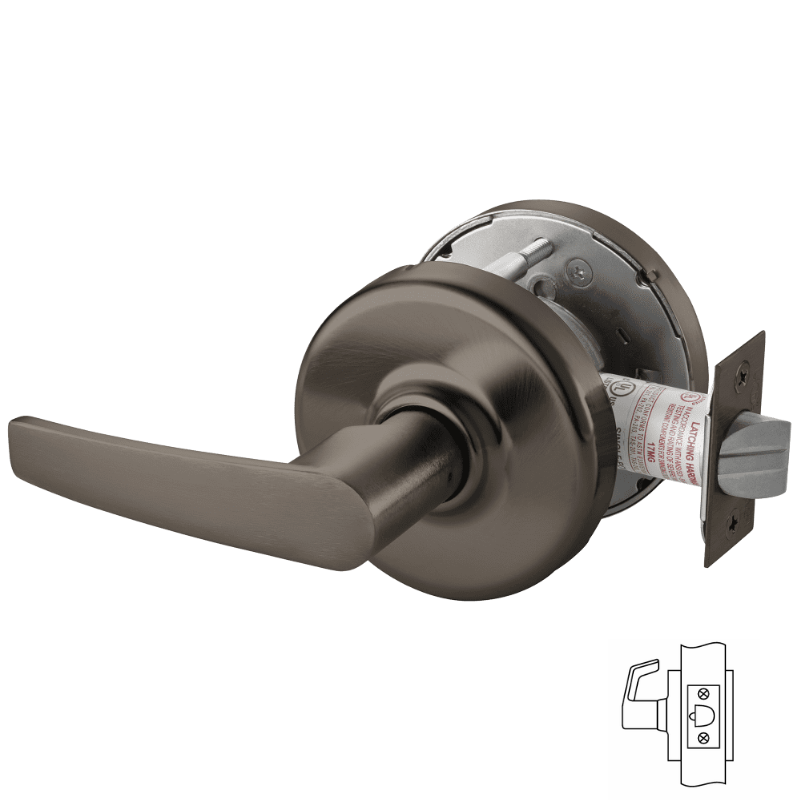

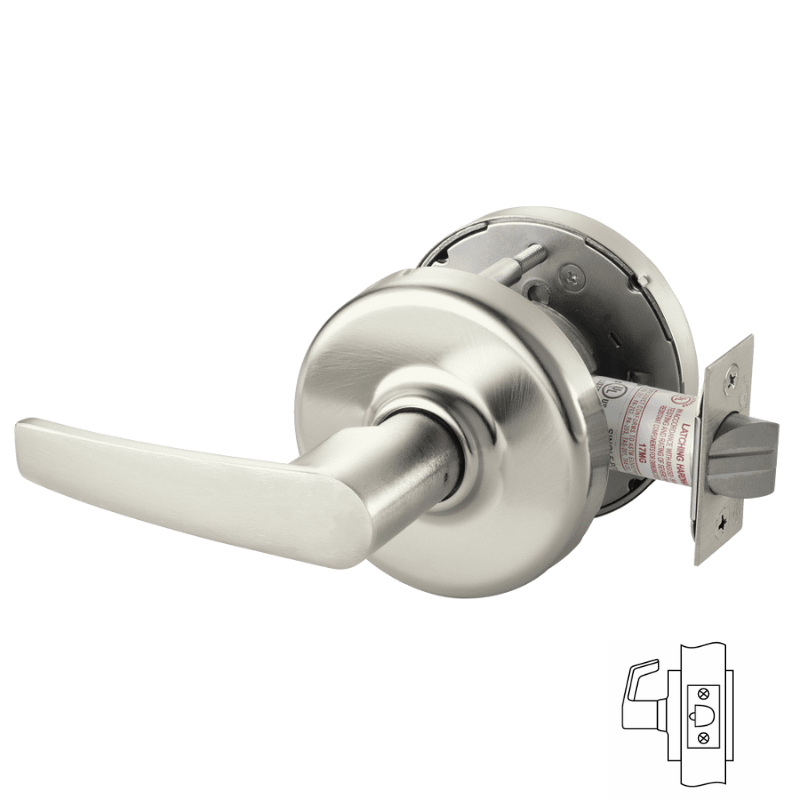

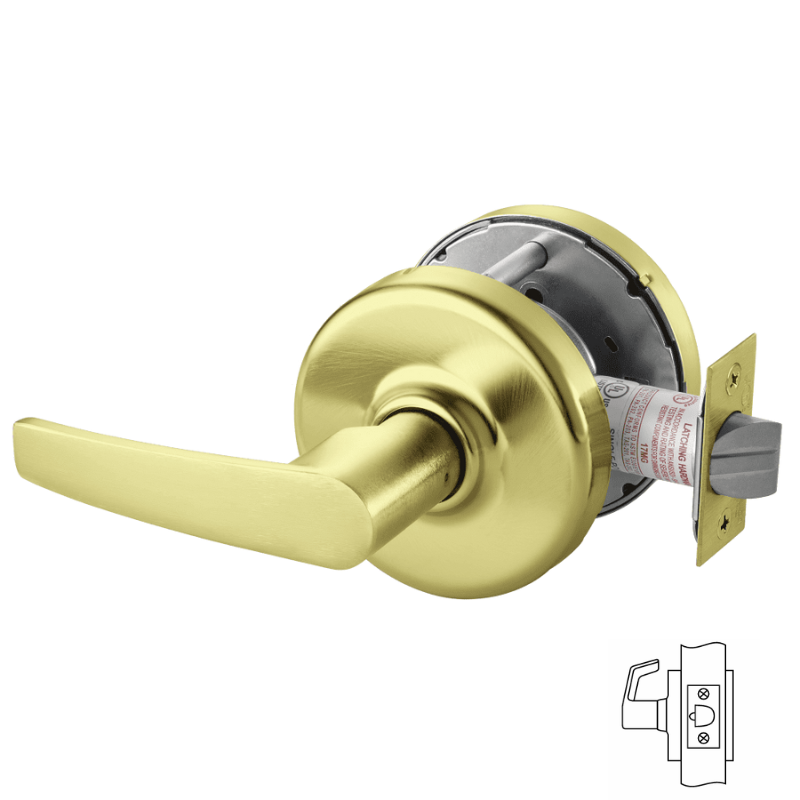

Corbin Russwin CLX3380-AZD Cylindrical Lock, Passage Lever x Blank Plate Function, Non-Keyed

  • SKU: CLX3380AZD626
Corbin_Russwin_CLX3380-AZD-626
CLX3380Series
Corbin_Russwin_CLX3380-AZD-605
Corbin_Russwin_CLX3380-AZD-606
Corbin_Russwin_CLX3380-AZD-612
Corbin_Russwin_CLX3380-AZD-613
Corbin_Russwin_CLX3380-AZD-613E
Corbin_Russwin_CLX3380-AZD-619
Corbin_Russwin_CLX3380-AZD-625
Corbin_Russwin_CLX3380-AZD-BSP
Corbin_Russwin_CLX3380-AZD-626
CLX3380Series
Corbin_Russwin_CLX3380-AZD-605
Corbin_Russwin_CLX3380-AZD-606
Corbin_Russwin_CLX3380-AZD-612
Corbin_Russwin_CLX3380-AZD-613
Corbin_Russwin_CLX3380-AZD-613E
Corbin_Russwin_CLX3380-AZD-619
Corbin_Russwin_CLX3380-AZD-625
Corbin_Russwin_CLX3380-AZD-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3380-AZD Cylindrical Lock, Passage Lever x Blank Plate Function, Non-Keyed

  • SKU: CLX3380AZD626
$435.90/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3380-AZD Passage Lever x Blank Plate Function Cylindrical Lever Lockset, Armstrong Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3380-AZD Cylindrical Lock is equipped with a Passage Lever and a Blank Plate Function, making it perfect for non-keyed environments. It features a durable Armstrong Lever, a 2-3/4" Backset, and a 4-7/8" Strike, making it a Grade 1 lock. This non-handed lock is a reliable choice for any industry in need of a professional and secure solution.

Function: Passage Lever x Blank Plate

  • Deadlocking latchbolt by lever
  • Lever on one side; blank plate on other side
  • Lever always free
  • For single or double communicating doors
Manufacturer Corbin Russwin
SKU CLX3380-AZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 80 - Passage Lever x Blank Plate
Lever/Knob Design AZ - Armstrong Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
