All CORBIN RUSSWIN Products

Corbin Russwin CLX3381-102D Cylindrical Lock, Classroom x Blank Plate Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3381102D626
$483.60/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

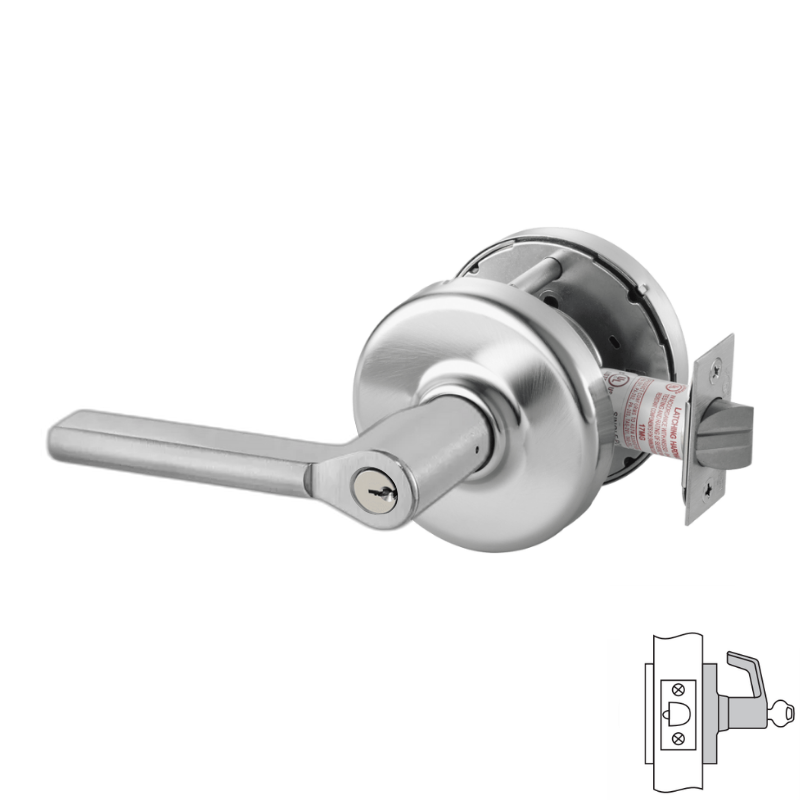

Corbin Russwin CLX3381-102D Classroom x Blank Plate Function Cylindrical Lever Lockset, Georgia 102D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3381-102D Cylindrical Lock offers a Classroom x Blank Plate Function and a Georgia 102D Lever, with a 2-3/4" backset and 4-7/8" strike. This Grade 1 lock is non-handed, providing multiple core options for secure and versatile use.

Function: Classroom x Blank Plate

  • Deadlocking latchbolt by lever, except when lever is locked by
    key (lever handle is freewheeling in locked position)
  • Lever on one side; blank plate on other side
  • Key unlocks lever

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys
  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3381 102D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 81 Classroom x Blank Plate
Lever/Knob Design 102 - Georgia Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
