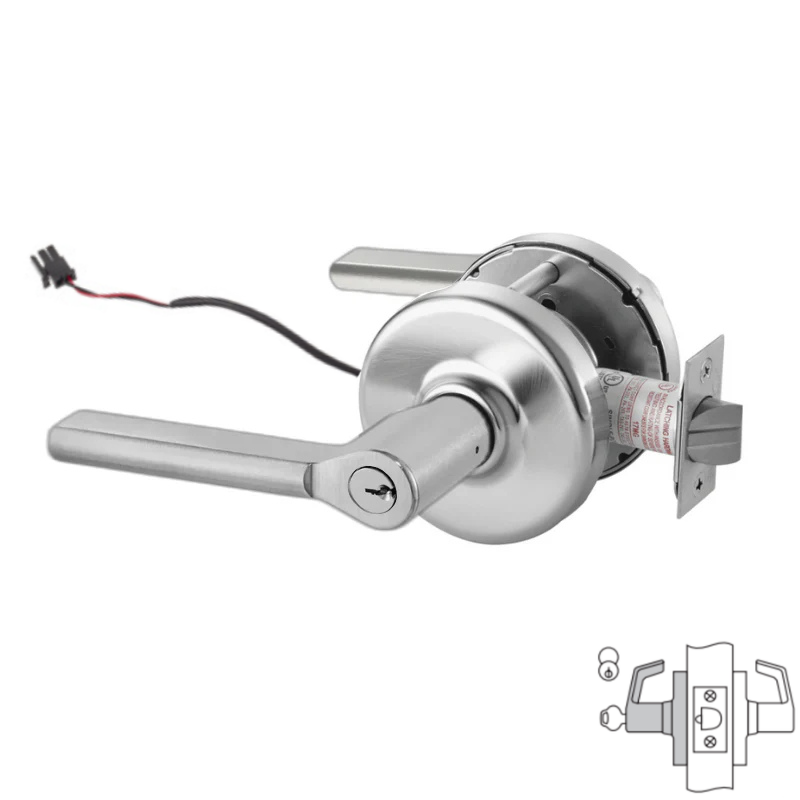

Corbin Russwin CLX33903-102D Fail Safe Function Electrified Cylindrical Lever Lockset, Georgia Lever, 2-3/4 Backset, 4-7/8 Strike, L4 Keyway, Keyed Random, [2] Keys, Grade 1, Non-Handed

The Corbin Russwin CLX33903-102D is an extra-heavy-duty electrified cylindrical lockset that combines the timeless aesthetic of the Georgia (102) lever with advanced Grade 1 security. This Fail Safe (power-to-lock) model is specifically engineered for high-traffic commercial applications where life safety is a priority, ensuring the outside lever unlocks during power loss while the inside lever allows for constant free egress. Powered by innovative EcoFlex® technology, the CLX33903 offers a universal 12/24VDC voltage range and an ultra-low current draw of just 15mA–20mA, significantly reducing energy costs and heat output. With its ElectroLynx® 8-pin connector for plug-and-play installation and a robust L4 keyway, this lockset is a top-tier choice for seamless integration into sophisticated electronic access control systems.

Function: Fail Safe - Outside lever locked when power is applied and unlocked upon power loss. Inside lever remains free at all times. Key retracts latchbolt regardless of electrical state.

Features of ElectroLynx:

• Makes it easy to bring power to the locking hardware
• Wires have connectors that snap together, like plugging a telephone into a jack
