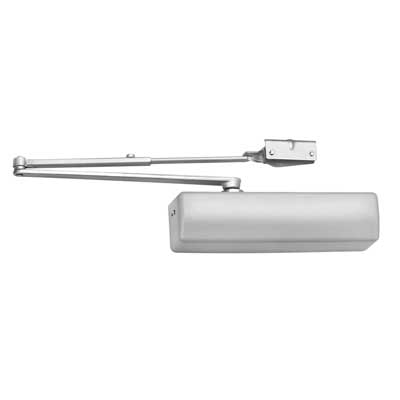

Corbin Russwin DC3210-M54 Door Closer, Double Lever Arm with PA Bracket, Push or Pull Side Mount

  • SKU: DC3210689M54
Corbin Russwin DC3210-M54-689
Corbin Russwin DC3210-M54-689
Corbin Russwin DC3210-M54-696
Corbin Russwin DC3210-M54-691
Corbin Russwin DC3210-M54-690
Corbin Russwin DC3210-M54-BSP
Zoomed view
All CORBIN RUSSWIN Products

Corbin Russwin DC3210-M54 Door Closer, Double Lever Arm with PA Bracket, Push or Pull Side Mount

  • SKU: DC3210689M54
  • ✓
    In Stock
    In Stock
Your Price
$299.70/ea
0% Net 30 Days: Apply Now
Finish: 689 Aluminum

Corbin Russwin DC3210-M54 Door Closer, Double Lever Arm with PA Bracket, Push or Pull Side Mount, Size 1 to 6, Full Cover, Grade 1, Sex Bolts, Non Handed

Corbin Russwin DC3210-M54 Door Closer features a Double Lever Arm with PA Bracket, allowing for a Push or Pull Side Mount configuration. It is available in Size 1 to 6, with a Full Cover design and Grade 1 construction for maximum durability. Sex Bolts are also included for secure installation, and the closer is Non Handed for versatile use on any door.

  • Allows inside application of closer on out-swinging
    doors
  • Closer is mounted on the push side, with the arm
    parallel to the face of the door
  • Arm does not project from the opening

Corbin Russwin DC3000 Series Door Closers

Ideal for high-traffic situations and has reliable latching for access control and fire code compliance.

THE DC3000 Series is a mid-priced, cost-effective choice. Ideal for virtually all door openings and draft conditions in both new construction and renovations, including schools and universities, health care, government, commercial/industrial, office/retail, transportation/utilities, hotels/conference centers, and religious.
  • Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
  • Compliance with building and barrier-free codes
  • Up to full 180° door opening
  • One-piece seamless steel spring tube seals in hydraulic fluid
  • Tapered valves allow precise adjustment
  • Cast iron body
  • Quik-Install™ mounting bracket speeds installation, reducing cost and errors
  • Five-year limited warranty
  • UL10C, UBC
  • Powder painted arms and retrofit plates
Manufacturer Corbin Russwin
SKU DC3210 M45
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material VARIES
Limited Warranty 15 Years
Type Surface
Technology Hydraulic
Mounting Location Push Side
Mounting Style Parallel Arm
Hold Open No
Hand Non-Handed
Degree Swing 180 Deg.
Back Check Adjustable
Cover Full
Cement Case No
Screw Type Self-Tapping
Through Bolts No
Voltage Mechanical
Spacer Available
Bracket Available
Drop Plate Available
Special Rust Inhibitor No
Sealed Closer Yes
Physically Handicapped Yes
Cold Weather Fluid Yes
Product Type Surface Closers
Product Cut Sheet
