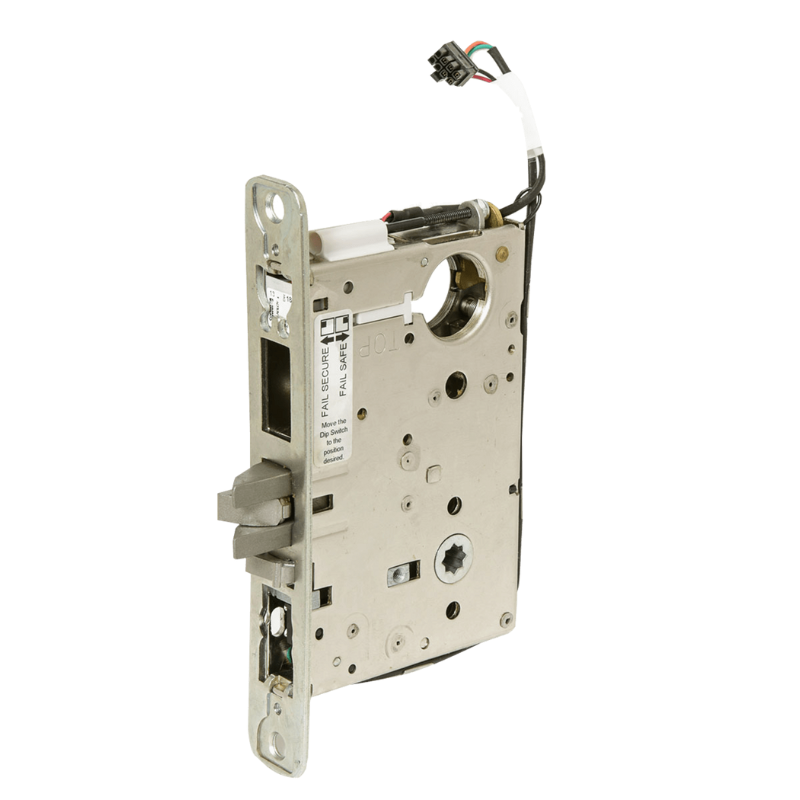

Corbin Russwin ML20906-LL-626-SEC-M92, Fail Secure Electrified Mortise Lock, Outside Grip Locked when Not Energized, Outside Cylinder Override, Request To Exit Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish
The Corbin Russwin ML20906-LL-626-SEC-M92 is a Grade 1 fail-secure electrified mortise lock featuring a locked outside grip when de-energized, an outside cylinder override, and a request-to-exit monitor. This lever-by-lever lock body, finished in US26D satin chrome, is field reversible and supplied without a cylinder.
ML20906 x SEC
- Latchbolt by grip either side only when lock is energized.
- Outside grip locked when lock is not energized.
- Latchbolt by key outside when lock is not energized.
- Inside grip always free.
- Auxiliary latch deadlocks latchbolt
- Locked when power is off and unlocked when the power is on.
M92 - Request to Exit Monitor
Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch)Â
