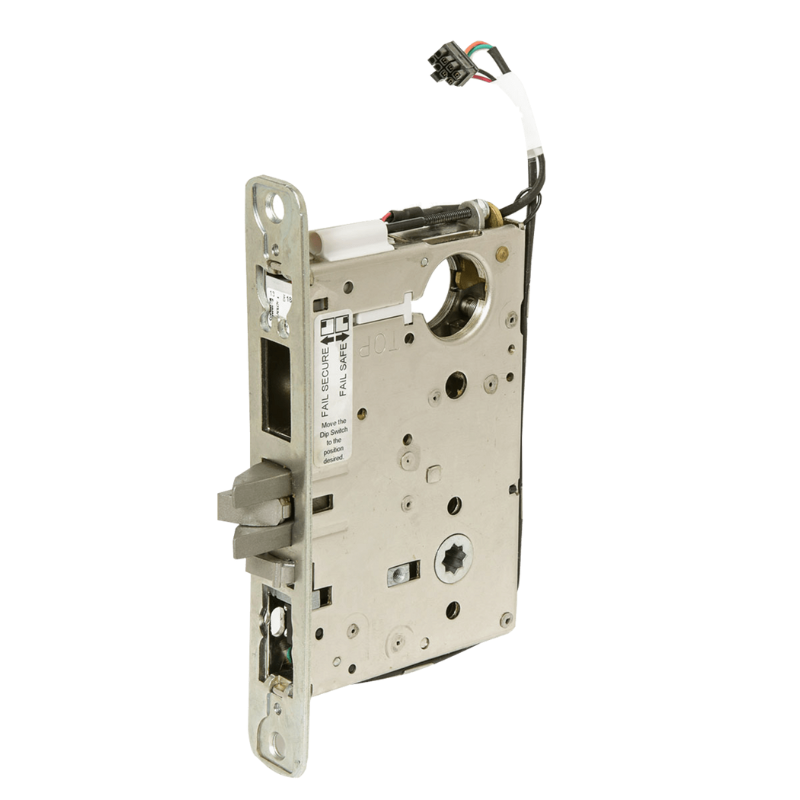

Corbin Russwin ML20907-LL-626-SAF-M105 Fail Safe Electrified Mortise Lock Body Only, Outside Grip Locked when Energized, No Cylinder Override, Satin Chrome Finish

  • SKU: ML20907LL626SAFM105

Corbin Russwin ML20907-LL-626-SAF-M105 Fail Safe Electrified Mortise Lock Body Only, Outside Grip Locked when Energized, No Cylinder Override, Satin Chrome Finish

  • SKU: ML20907LL626SAFM105
Sale price$766.02/ea
Available (2 Weeks)
2 Weeks Lead Time

Corbin Russwin ML20907-LL-626-SAF-M105 Fail Safe Electrified Mortise Lock, Outside Grip Locked when Energized, No Cylinder Override, Security Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

Corbin Russwin ML20907-LL-626-SAF-M105 is a Grade 1 fail-safe electrified mortise lock designed for high-security applications. This lock features an outside grip that remains locked when energized, includes security monitoring, and omits a cylinder override. It comes as a lever x lever body only, with field-reversible functionality and a US26D satin chrome finish, ensuring durability and adaptability for professional installations.

ML20907 x SAF

  • Latchbolt by grip either side, unless outside grip is locked by energizing lock.
  • Inside grip always free.
  • Auxiliary latch deadlocks latchbolt.
  • Unlocked when power is off and locked when the power is on.

M105 - Security Monitor
Security Monitor is two switches in series that monitors lock status (locked or unlocked) and Auxiliary Latch position.
Note: Monitoring options may only be ordered together as follows: M91xM92, M92xM105. Recommended for fail safe applications that require monitoring of the secure side when lock loses power.

Manufacturer Corbin Russwin
SKU ML20907 LL 626 SAF M105
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 07xSAF-Fail Safe


Cylinder Mortise Handing Chart
