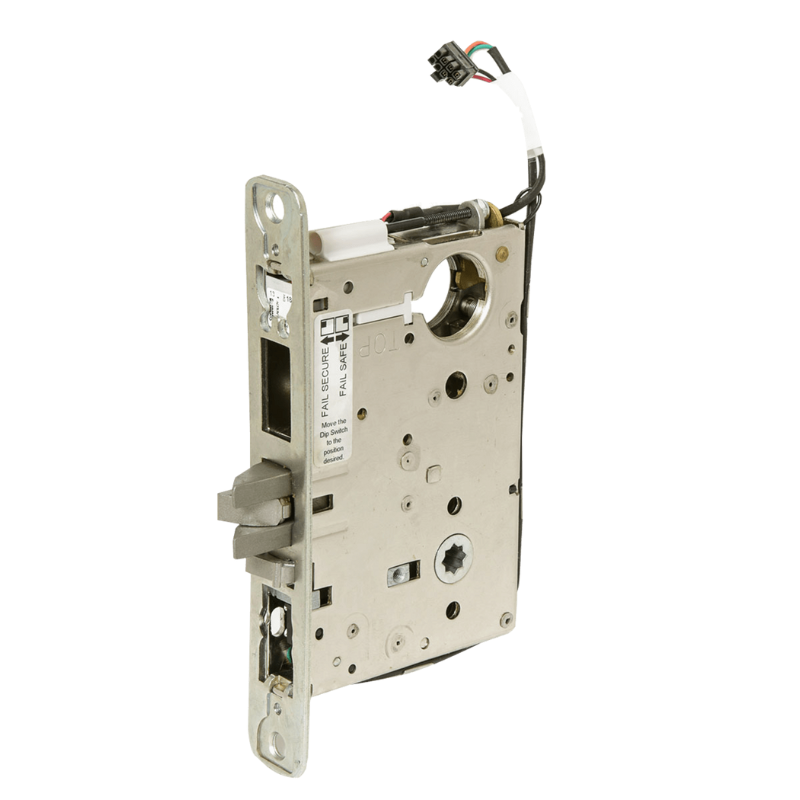

Corbin Russwin ML20907-LL-626-SAF-M92 Fail Safe Electrified Mortise Lock Body Only, Outside Grip Locked when Energized, No Cylinder Override, Satin Chrome Finish

  • SKU: ML20907LL626SAFM92

Corbin Russwin ML20907-LL-626-SAF-M92 Fail Safe Electrified Mortise Lock Body Only, Outside Grip Locked when Energized, No Cylinder Override, Satin Chrome Finish

  • SKU: ML20907LL626SAFM92
Sale price$650.25/ea
Available (2 Weeks)
2 Weeks Lead Time

Corbin Russwin ML20907-LL-626-SAF-M92 Fail Safe Electrified Mortise Lock, Outside Grip Locked when Energized, No Cylinder Override, Request to Exit Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin Russwin ML20907-LL-626-SAF-M92 is a Grade 1, fail-safe electrified mortise lock featuring an outside grip that locks when energized. It includes a request-to-exit monitor, has no cylinder override, and comes as a less cylinder, lever x lever body only. This field-reversible lock is finished in US26D satin chrome, delivering robust security with adaptable installation options.

ML20907 x SAF

  • Latchbolt by grip either side, unless outside grip is locked by energizing lock.
  • Inside grip always free.
  • Auxiliary latch deadlocks latchbolt.
  • Unlocked when power is off and locked when the power is on.

M92 - Request to Exit Monitor
Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch)

Manufacturer Corbin Russwin
SKU ML20907 LL 626 SAF M92
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 07xSAF-Fail Safe
