Corbin Russwin ML20907-LL-626-SEC-M92, Fail Secure Electrified Mortise Lock, Outside Grip Locked when Not Energized, No Cylinder Override, Request to Exit Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

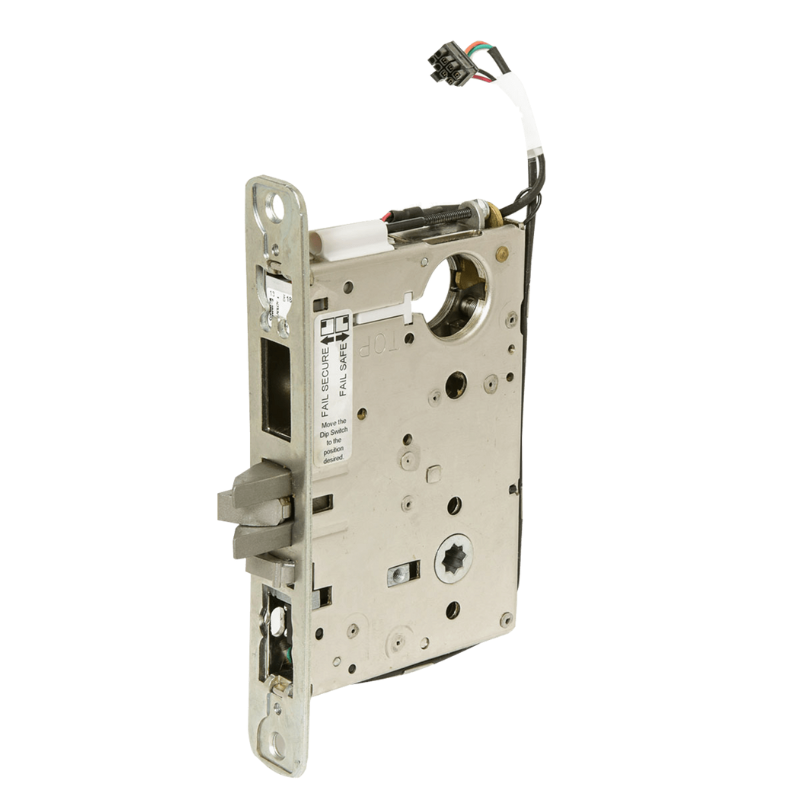

The Corbin Russwin ML20907-LL-626-SEC-M92 is a Grade 1 fail-secure electrified mortise lock featuring an outside grip that remains locked when de-energized. This model includes a request-to-exit monitor, lacks a cylinder override, and comes as a lever x lever body only. It is field reversible and finished in US26D satin chrome, designed for high-security applications.
ML20907 x SEC
- Latchbolt by grip either side only when lock is energized.
- Outside grip locked when lock is not energized.
- Inside grip always free.
- Auxiliary latch deadlocks latchbolt.
- Locked when power is off and unlocked when the power is on.
M92 - Request to Exit Monitor
Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch)
