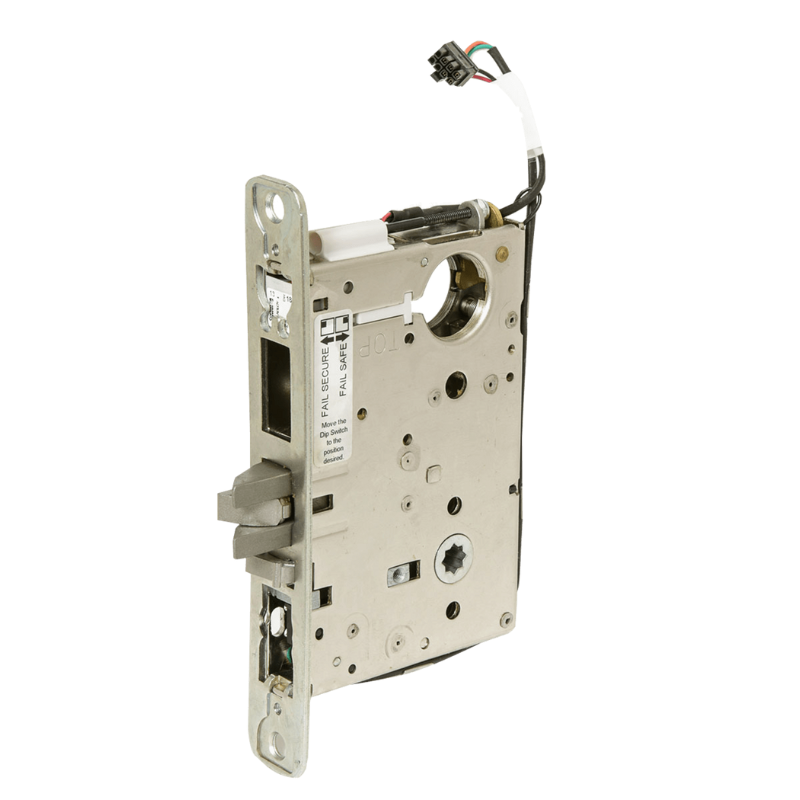

Corbin Russwin ML20914-LL-626-SAF-M105 Fail Safe Electrified Mortise Lock, Both Grip Locked when Energized, Outside Cylinder Override, Security Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish
The Corbin Russwin ML20914-LL-626-SAF-M105 is a Grade 1 fail-safe electrified mortise lock featuring dual grip locking when energized and an outside cylinder override. It comes without a cylinder and includes a security monitor. The lever x lever design is field reversible and finished in US26D satin chrome, offering robust, adaptable security for demanding applications.
ML20914 x SAF
- Latchbolt by grip either side, unless both grips are locked by energizing lock.
- Latchbolt by key outside when lock is energized.
- Auxiliary latch deadlocks latchbolt.
- Unlocked when power is off and locked when the power is on.
M105 - Security Monitor
Security Monitor is two switches in series that monitors lock status (locked or unlocked) and Auxiliary Latch position.
Note: Monitoring options may only be ordered together as follows: M91xM92, M92xM105. Recommended for fail safe applications that require monitoring of the secure side when lock loses power.
