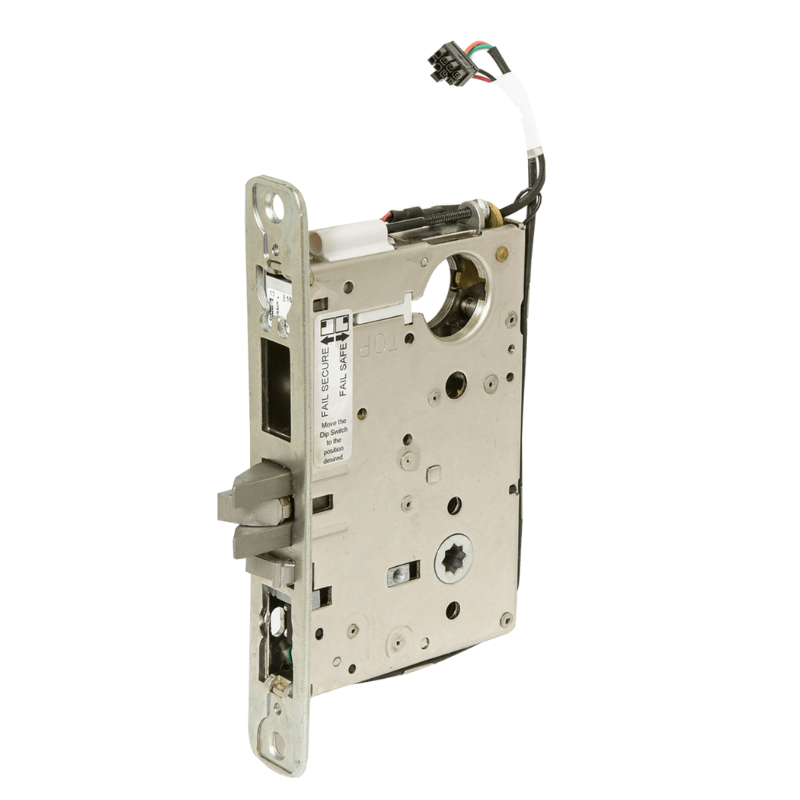

Corbin Russwin ML20914-LL-626-SAF-M91 Fail Safe Electrified Mortise Lock Body Only, Both Grip Locked when Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20914LL626SAFM91
Corbin Russwin ML20914-LL-626-SAF-M91
Corbin Russwin ML20914-LL-626-SAF-M91
All CORBIN RUSSWIN Products

Corbin Russwin ML20914-LL-626-SAF-M91 Fail Safe Electrified Mortise Lock Body Only, Both Grip Locked when Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20914LL626SAFM91
$651.78/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing Guide:
handing chart image

Corbin Russwin ML20914-LL-626-SAF-M91 Fail Safe Electrified Mortise Lock, Both Grip Locked when Energized, Outside Cylinder Override, Latchbolt Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

Corbin Russwin ML20914-LL-626-SAF-M91 Fail Safe Electrified Mortise Lock Body, designed for secure access control with both grips locked when energized. Features outside cylinder override, latchbolt monitoring, and field-reversible lever handles. This Grade 1 lock, finished in US26D satin chrome, comes without a cylinder for flexible installation options.

ML20914 x SAF

  • Latchbolt by grip either side, unless both grips are locked by energizing lock.
  • Latchbolt by key outside when lock is energized.
  • Auxiliary latch deadlocks latchbolt.
  • Unlocked when power is off and locked when the power is on.

M91 - Latchbolt Monitor
Latchbolt monitoring is a SPDT switch which monitors the full extension of the main latch.

Manufacturer Corbin Russwin
SKU ML20914 LL 626 SAF M91
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 14xSAF-Fail Safe


Product Cut Sheet

Cylinder Mortise Handing Chart
