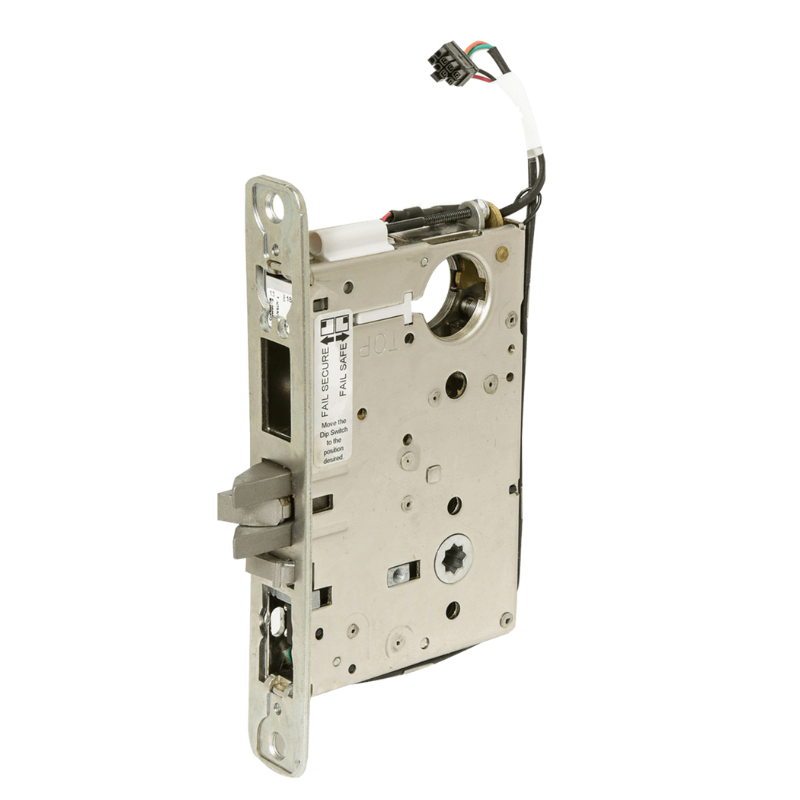

Corbin Russwin ML20914-LL-626-SEC-M105 Fail Secure Electrified Mortise Lock, Both Grip Locked when Not Energized, Outside Cylinder Override, Security Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin Russwin ML20914-LL-626-SEC-M105 is a fail-secure electrified mortise lock featuring locked grips on both sides when de-energized. It includes an outside cylinder override and security monitoring capabilities. This Grade 1, lever-by-lever lock body, finished in US26D satin chrome, is field reversible and sold without the cylinder.

ML20914 x SEC

• Latchbolt by grip either side only when lock is energized.

• Both grips locked when lock is not energized.

• Latchbolt by key outside when lock is not energized.

• Auxiliary latch deadlocks latchbolt.
• Locked when power is off and unlocked when the power is on.

M92 - Request to Exit Monitor
Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch)
