Corbin Russwin ML20914-LL-626-SEC-M92 Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20914LL626SECM92

Corbin Russwin ML20914-LL-626-SEC-M92 Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20914LL626SECM92
Sale price$650.25/ea
Available (2 Weeks)
2 Weeks Lead Time

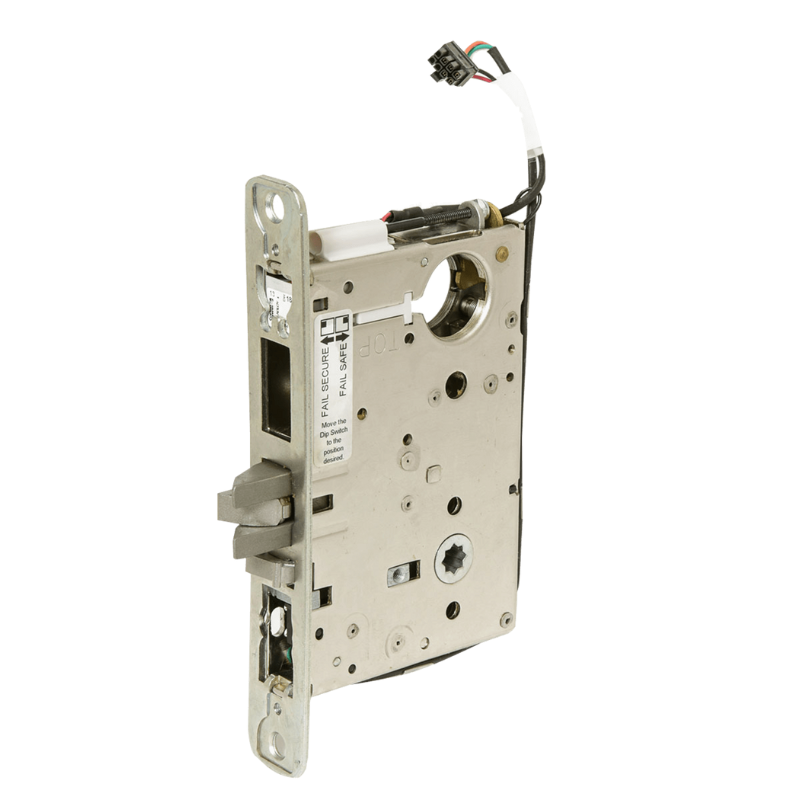

Corbin Russwin ML20914-LL-626-SEC-M92 Fail Secure Electrified Mortise Lock, Both Grip Locked when Not Energized, Outside Cylinder Override, Request To Exit Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin Russwin ML20914-LL-626-SEC-M92 is a fail-secure electrified mortise lock featuring both grips locked when de-energized and an outside cylinder override. It includes a request-to-exit monitor, is supplied less cylinder, and comes as a lever x lever body only. This Grade 1 lock offers field reversibility and is finished in satin chrome (US26D) for a professional, durable appearance.

ML20914 x SEC

  • Latchbolt by grip either side only when lock is energized.
  • Both grips locked when lock is not energized.
  • Latchbolt by key outside when lock is not energized.
  • Auxiliary latch deadlocks latchbolt.
  • Locked when power is off and unlocked when the power is on.

M92 - Request to Exit Monitor
Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch)

Manufacturer Corbin Russwin
SKU ML20914 LL 626 SEC M92
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 14xSEC-Fail Secure
