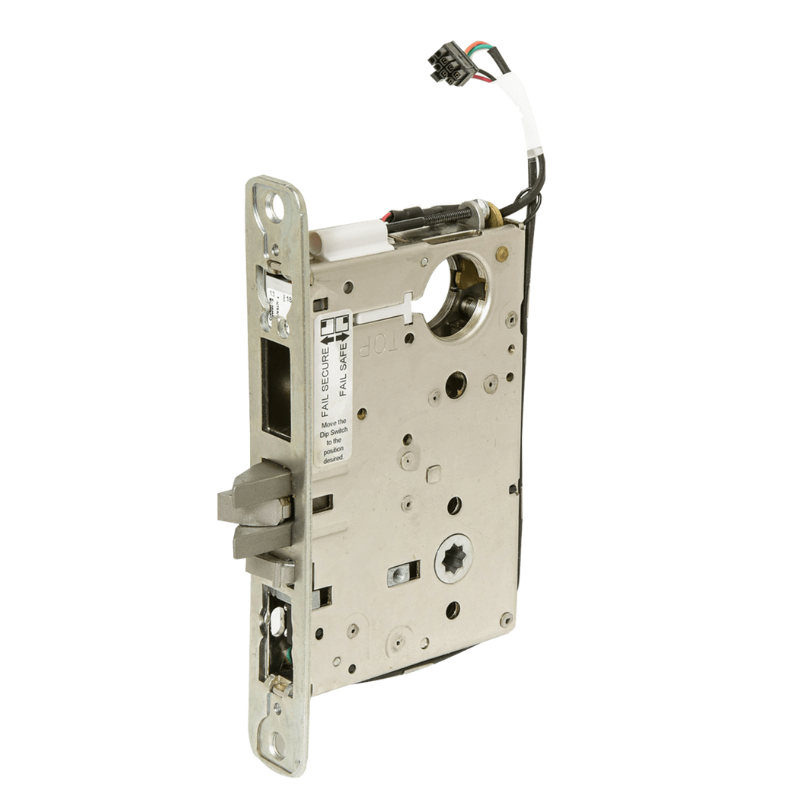

Corbin Russwin ML20915-LL-626-SEC-M91 Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, No Cylinder Override, Satin Chrome Finish

  • SKU: ML20915LL626SECM91
Corbin Russwin ML20915-LL-626-SEC-M91
Corbin Russwin ML20915-LL-626-SEC-M91
All CORBIN RUSSWIN Products

Corbin Russwin ML20915-LL-626-SEC-M91 Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, No Cylinder Override, Satin Chrome Finish

  • SKU: ML20915LL626SECM91
$651.78/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing Guide:
handing chart image

Corbin Russwin ML20915-LL-626-SEC-M91 Fail Secure Electrified Mortise Lock, Both Grip Locked when Not Energized, No Cylinder Override, Latchbolt Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin Russwin ML20915-LL-626-SEC-M91 is a Grade 1, US26D satin chrome finish electrified mortise lock designed for fail-secure functionality. It ensures both grips remain locked when not energized, includes a latchbolt monitor, and is sold without a cylinder or cylinder override. This lever x lever lock body is field reversible for versatile installation.

ML20915 x SEC

  • Latchbolt by grip either side only when lock is energized.
  • Both grips locked when lock is not energized.
  • Auxiliary latch deadlocks latchbolt.
  • Locked when power is off and unlocked when the power is on.

M91 - Latchbolt Monitor
Latchbolt monitoring is a SPDT switch which monitors the full extension of the main latch.

Manufacturer Corbin Russwin
SKU ML20915 LL 626 SEC M91
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 15xSEC-Fail Secure
