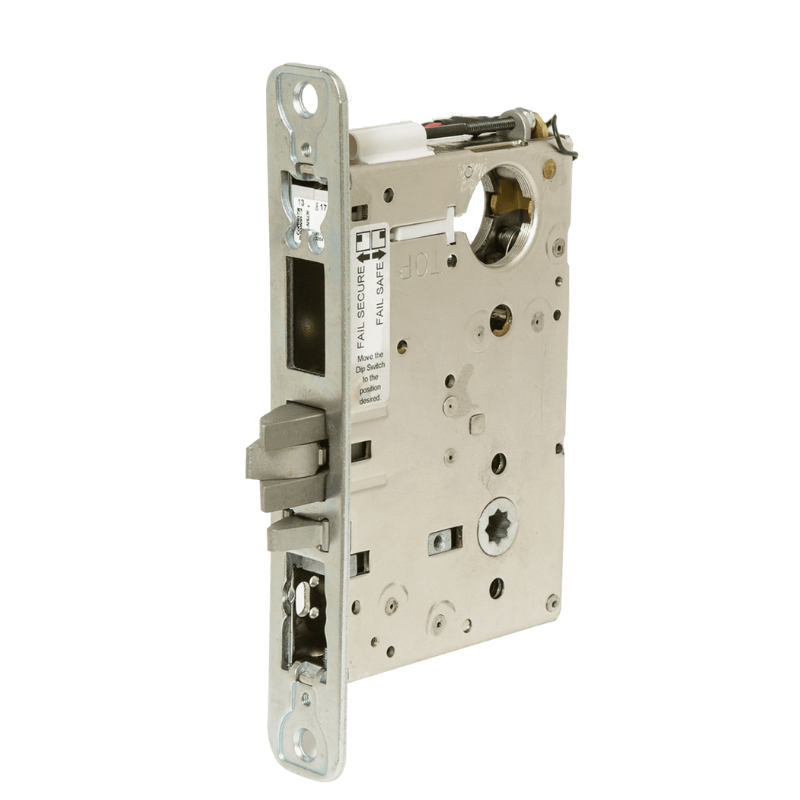

The Corbin Russwin ML20932-LL-626-SAF is a Grade 1 fail-safe electrified mortise lock featuring both grips locked when energized and a double cylinder override. This lever x lever, field-reversible lock is finished in US26D satin chrome, delivering reliable security for professional-grade applications.
ML20932 x SAF
| Manufacturer | Corbin Russwin |
| SKU | ML20932 LL 626 SAF |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Lockbody Only |
| BAA Qualified | Yes |
| ADA Compliance | Yes |
| Limited Warranty | 2 Years |
| Fire Rated | 3 Hours {A} |
| Handing | Field Reversible |
| Std. Strike Type | ASA |
| Door Thickness | 1 3/4" |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Cylinder Type | Conventional Cylinder |
| # Pins | 6 |
| # of Keys | 2 |
| Operating Voltage | 12VDC/24VDC |
| Keying | 0 Bitted |
| Key(s) | Blank |
| Std. Keyway | L4 |
| Lock Face Size | 8" X 1-1/4" |
| Amp Draw | 500mA Peak, 15mA Holding |
| Bolt Projection | 3/4" Latchbolt |
| Std. Strike Number | 236L72018 |
| Function | 32xSEC-Fail Secure |
