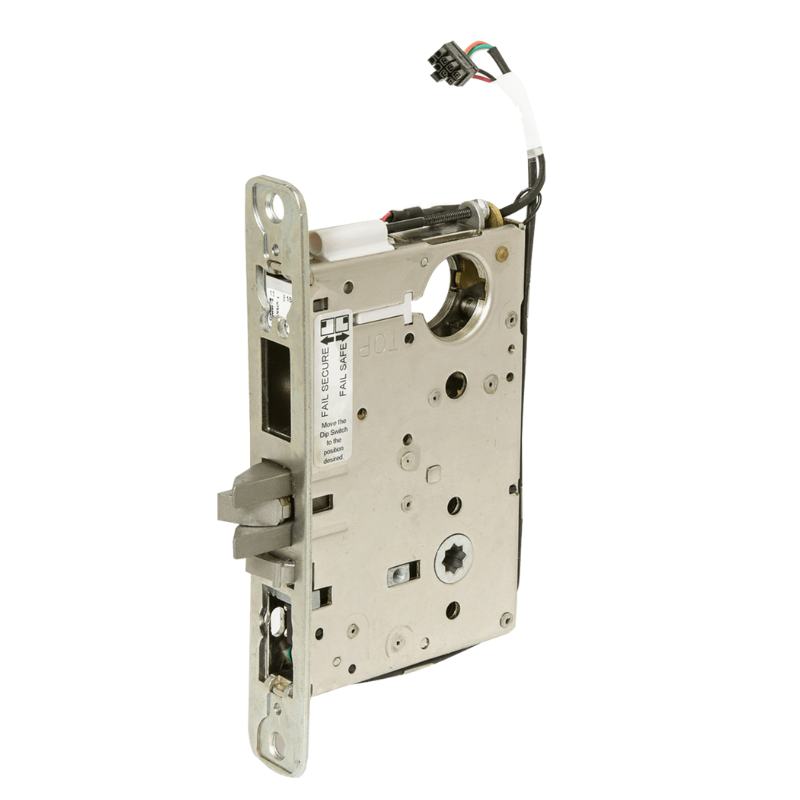

Corbin Russwin ML20932-LL-626-SEC-M105 Fail Secure Electrified Mortise Lock, Both Grip Locked when Not Energized, Double Cylinder Override, Security Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish
The Corbin Russwin ML20932-LL-626-SEC-M105 is a Grade 1 electrified mortise lock designed for fail-secure operation, ensuring both grips remain locked when power is off. It features a double cylinder override and security monitoring capabilities. This lever x lever lock body is field reversible and comes without a cylinder, finished in US26D satin chrome for durability and aesthetic appeal.
ML20932 x SAF
- Latchbolt by grip either side only when lock is energized.
- Both grips locked when lock is not energized.
- Latchbolt by key inside or outside when lock is not energized.
- Auxiliary latch deadlocks latchbolt
- Locked when power is off and unlocked when the power is on.
M105 - Security Monitor
Security Monitor is two switches in series that monitors lock status (locked or unlocked) and Auxiliary Latch position.
Note: Monitoring options may only be ordered together as follows: M91xM92, M92xM105. Recommended for fail safe applications that require monitoring of the secure side when lock loses power.
