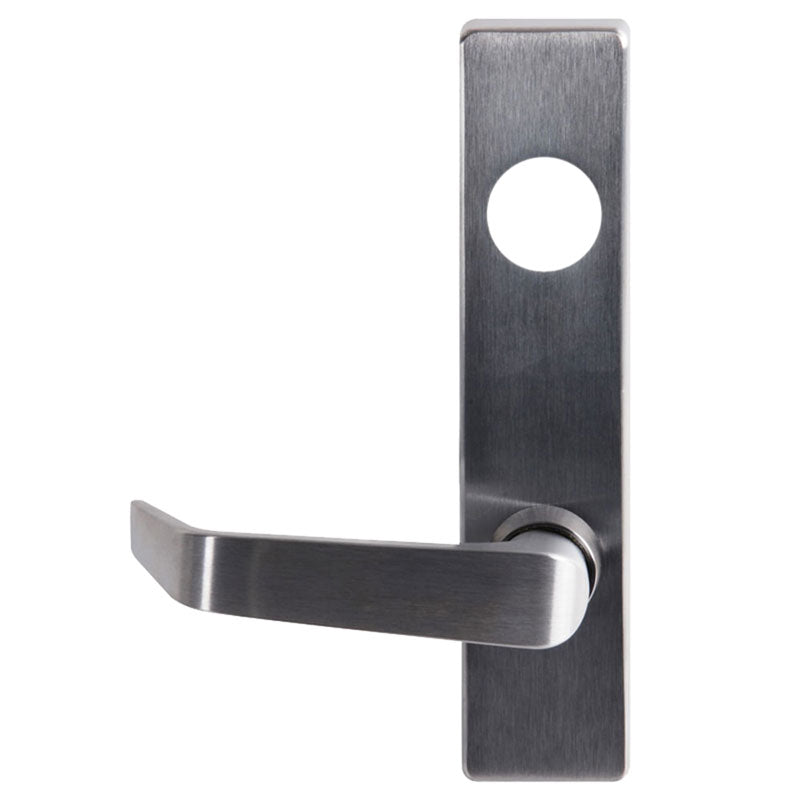

The Detex 08DNS LHR 626 Exit Device Trim, comes with DN Lever Trim with Cylinder Hole, is Classroom Function (Entrance by lever. Key locks or unlocks lever.), has an S Lever Style, is Right Hand Reverse, for use with 40/50/51 Series Devices, and comes in Satin Chrome Finish. Sold Less Cylinder.

Narrow Stile Lever Trim Designs
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Narrow stile trims can be used on 40 Series Rim, 50 / 51 Series Surface Vertical Rods and 60 / 61 / 62 / 63 Concealed Vertical Rods. Detex uses the BHMA functions/descriptions for all trims. Anti-Microbial Coating (AM) is available on all levers.

Features

• DN Trims are Forged Brass
• Door Thickness - Fits standard 1-3/4” - 2-1/4” doors
• Mortise Cylinder with Standard Yale Cam Required
• Advantex narrow stile trim also available for use with all Value Series Devices
• A short cylinder collar is supplied for mortise cylinders 1” to 1-1/8” long. For cylinders greater than 1-1/8”, order tall cylinder collar part #100752-X
