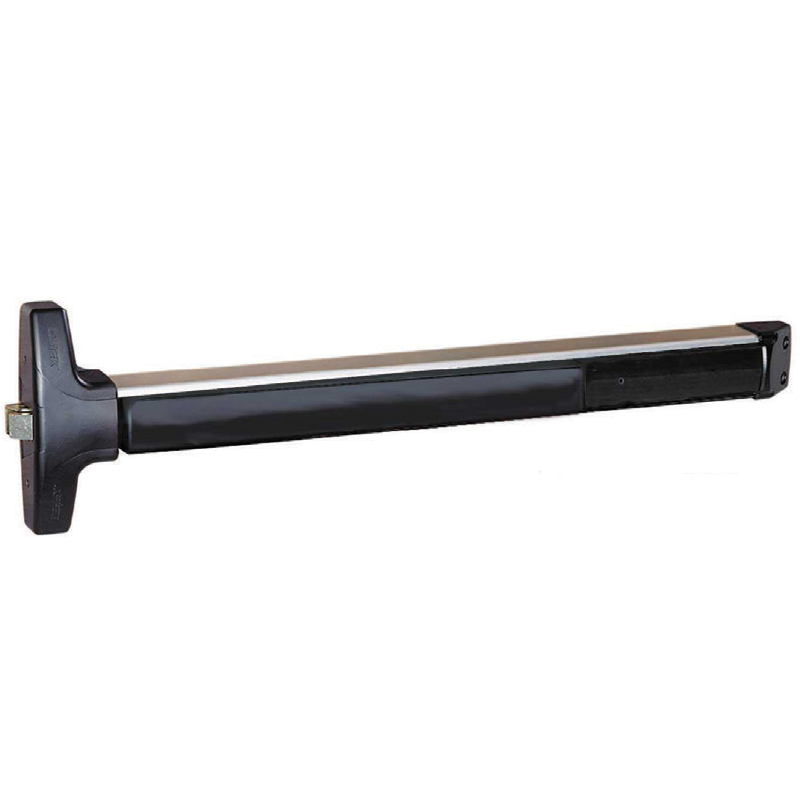

The Detex V40W HD 628 99 36 is a Weatherized Wide Stile Rim Exit Device that is 36" long, includes a 99 Surface Strike, has Hex Dogging, is Non-Handed, and comes in Satin Aluminum Clear Anodized finish.
V40xW Weatherized Rim Exit Device
The V40xW Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors and gates with mullions that are or may be exposed to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. In addition to listing as a UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).
Benefits
- Priced to be the best value for durable and attractive loss-prevention panic hardware
- Angled end cap deflects damage away from the device
- Minimal door prep saves time and money
- Patented mounting plate and strike locator replaces paper templates
- Fits almost any door in any décor
- Outside trims are easily changed or rekeyed without removing the device from the door
- Fast and easy installation saves time and money
Features
- Covers a 161-door prep
- Stainless steel, 3/4" deadlocking Pullman-type latch bolt
- Non-handed
- Field sizeable
- 1/8 turn hex key dogging
- Ribbed aluminum rail extrusion
- High-impact ABS and anodized surfaces
- Withstands over 1400 pounds of static pull force for greater security
- The modular design accepts a variety of outside trims and functions
- Standard and narrow stile pull trims are available
