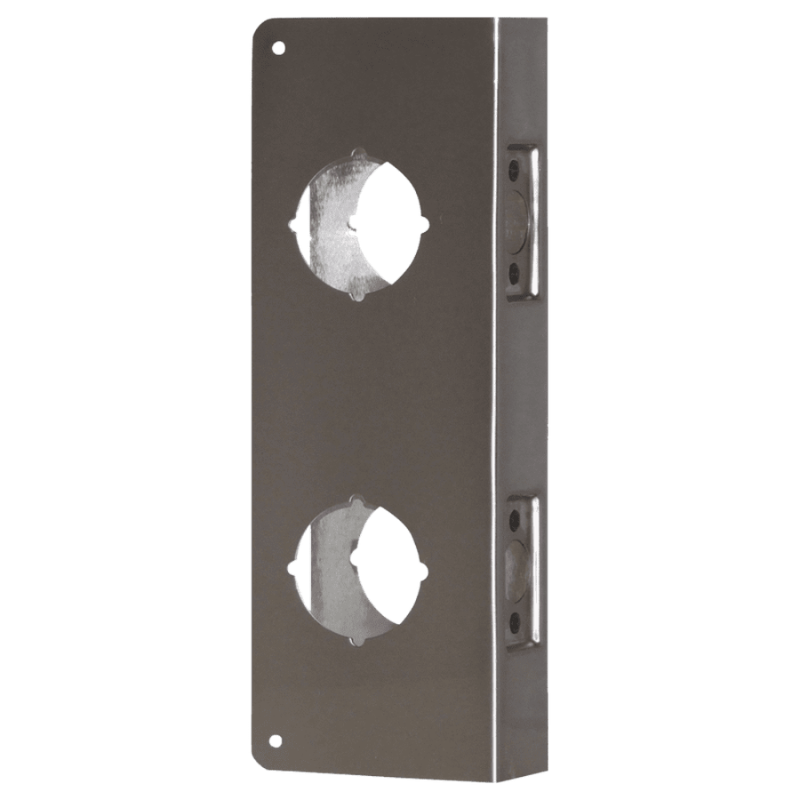

The Don Jo 258-S-CW Wrap Around Plate is built to reinforce and protect doors fitted with double lock configurations, combining a deadbolt and cylindrical lock in one clean cover. Measuring 4-1/4" x 12" and formed from durable 22-gauge stainless steel, this plate wraps around the door edge to shield against wear, prying, and daily abuse. It features two 2-1/8" holes with a 5-1/2" center spacing, sized for standard deadbolt and cylindrical lock hardware. Designed for 1-3/4" doors with a 2-3/4" backset, the satin stainless steel finish delivers a professional appearance while resisting corrosion in commercial settings.
Features
| Manufacturer | Don Jo |
|---|---|
| SKU | 258-S-CW |
| Product Type | Wrap Around Plate |
| Application | For Double Locks, Deadbolt and Cylindrical Lock |
| Finish | Satin Stainless Steel |
| Material | Stainless Steel |
| Origin | USA |
| Unit of Measure | Each |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4" |
| Gauge | 22 Gauge |
|---|---|
| Plate Height | 12" |
| Plate Width | 4-1/4" |
| Number of Holes | 2 |
| Hole Diameter | 2-1/8" |
| Center Spacing | 5-1/2" |
| Deadbolt Hole | 2-1/8" |
| Cylindrical Lock Hole | 2-1/8" |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4" |
