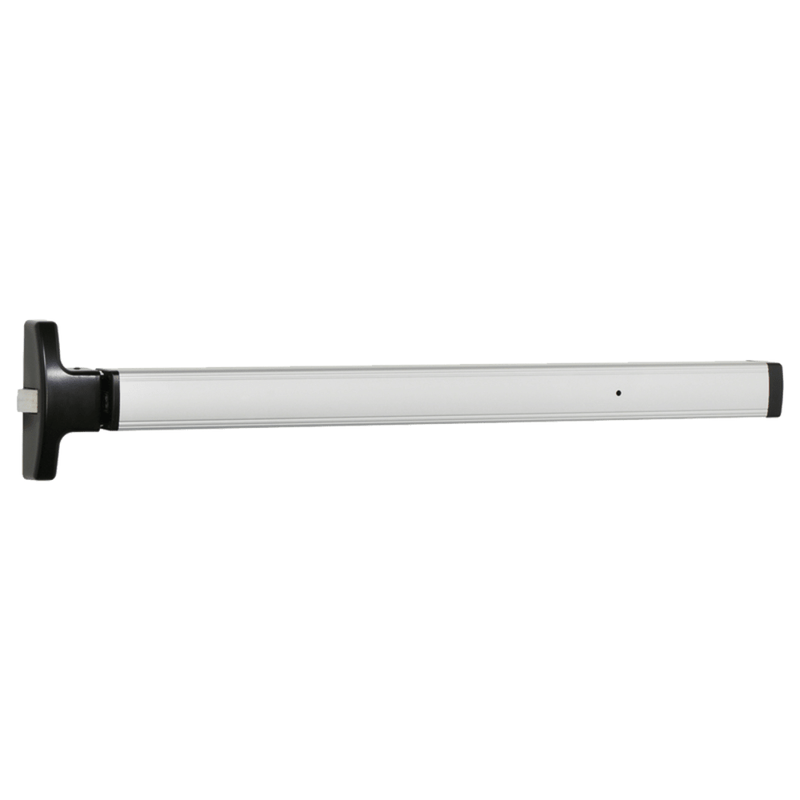

Falcon 1790-EO-3-628 Rim Exit Device, Exit Only, Less Trim, 36" Device, For 3'x7' Door, Includes PB48 Strike, Hex Key Dogging, Reversible, US28 Clear Anodized Aluminum Finish

The Falcon 1790-EO-3-628 is a Grade 1 rim exit device built for dependable performance on high-traffic commercial openings. Configured as exit only with no outside trim, this 36" device fits standard 3'x7' doors and ships with the PB48 strike for straightforward installation. Its push-rail design offers smooth, low-effort egress, while hex key dogging lets you hold the latch retracted for push/pull operation during peak hours. The reversible chassis adapts to both left- and right-hand doors, and the US28 clear anodized aluminum finish provides a clean, durable look that blends into most environments. It's a reliable choice for schools, offices, and retail spaces.

Features

• Exit-only function with no outside trim for secure, one-way egress.
• 36" device sized for standard 3' wide by 7' tall doors.
• Hex key dogging holds the latch retracted for push/pull traffic flow.
• Reversible design fits both left- and right-hand door applications.
• Includes the PB48 strike for complete installation out of the box.
• Clear anodized aluminum (US28) finish resists wear and corrosion.

Functional Details

As an exit-only rim device, the 1790-EO operates by depressing the push rail to retract the latchbolt and release the door. With no outside trim, the door remains secured from the exterior while allowing free egress from the inside. Hex key dogging mechanically holds the latch retracted to permit unlocked push/pull operation when needed.

• Exit only, no outside trim.
• Hex key dogging.
• Reversible, non-handed.
• For 3' x 7' doors.

Included Components

This device includes the PB48 strike required for proper latch engagement on the frame.
