Falcon SC81A-RW/PA Door Closer, Regular Arm with PA Bracket, Full Plastic Cover, Non-Handed

  • SKU: SC81ARWPA689FPC

Falcon SC81A-RW/PA Door Closer, Regular Arm with PA Bracket, Full Plastic Cover, Non-Handed

  • SKU: SC81ARWPA689FPC
  • ✓
    Ships in (5‑7 Days)
    5-7 Days Lead Time
Your Price
$225.54/ea
0% Net 30 Days: Apply Now
Finish: 689 Silver Aluminum Painted

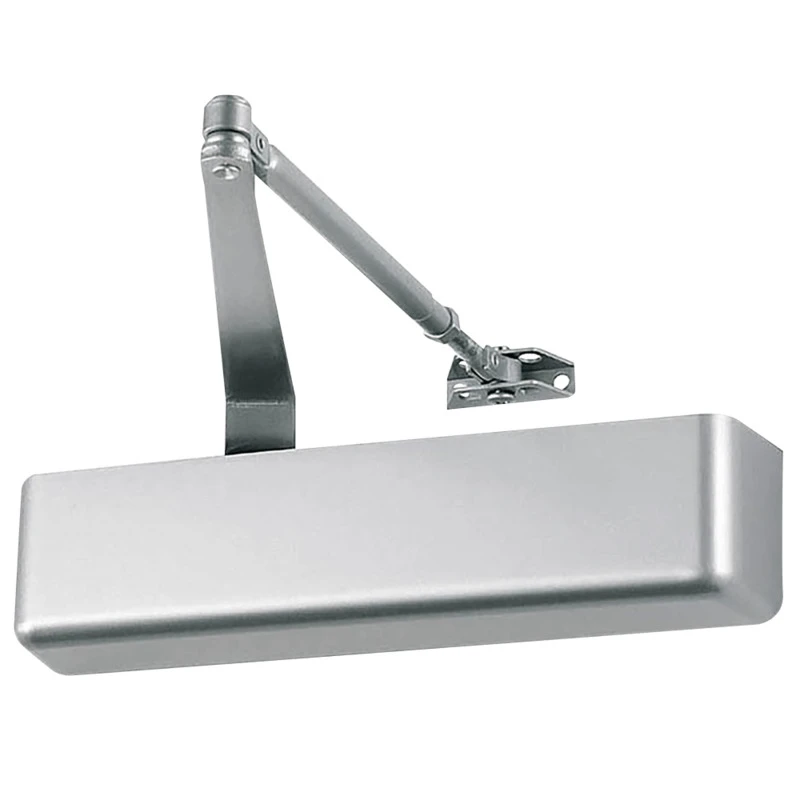

Falcon SC81A-RW/PA, Regular Arm with PA Bracket, Full Plastic Cover, Non-Handed

The Falcon SC81A-RW/PA is a dependable, surface-mounted door closer built for the demands of commercial and institutional openings. This non-handed unit ships with a regular arm and PA (parallel arm) bracket, giving installers the flexibility to mount on either the pull or push side of the door. A full plastic cover keeps the closer body protected while delivering a clean, finished appearance. Rated ANSI/BHMA Grade 1 and UL listed, the SC81A offers adjustable spring sizing and reliable hydraulic control for consistent performance across high-traffic environments. It's a practical choice when you need a versatile, code-compliant closer that handles everyday use without complication.

Features

  • Non-handed design simplifies ordering and fits both left- and right-hand doors.
  • Includes a regular arm with PA bracket for flexible push- or pull-side mounting.
  • Full plastic cover provides a smooth, protective finish over the closer body.
  • ANSI/BHMA Grade 1 rated for heavy commercial and institutional applications.
  • Adjustable spring power allows field tuning to door size and conditions.
  • UL listed for use on fire-rated door assemblies.

Arm Type Details

The regular arm with PA bracket is the most common closer arm configuration. The PA (parallel arm) bracket lets the arm mount parallel to the door face on the push side for a lower-profile, more vandal-resistant installation, while the regular arm can also be used in a standard pull-side arrangement. This dual capability makes the SC81A-RW/PA adaptable to a wide range of door and frame setups.

Manufacturer Falcon
SKU SC81A-RW-PA
Grade ANSI/BHMA Grade 1
Arm Type Regular Arm with PA Bracket
Cover Full Plastic Cover
Handing Non-Handed
Mounting Surface Mounted
UL Listing Type UL/cUL Listed
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty Limited Warranty
Spring Size Range Adjustable Sizes 1-6
ANSI/BHMA Standard A156.4
Closer Type Hydraulic
Mounting Side Push or Pull Side
Maximum Door Opening 180°
Sweep Adjustment Hydraulic Valve Controlled
Latch Adjustment Hydraulic Valve Controlled
Backcheck Adjustable
Fluid Type Temperature-Stable Hydraulic Fluid
Cylinder Material Cast Iron
