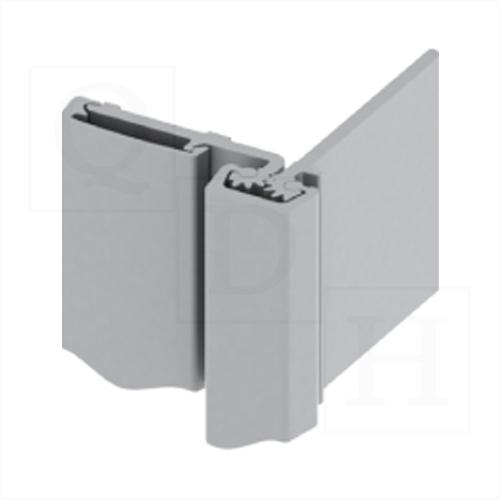

Hager Roton 780-054HD 79" Half Surface Heavy Duty Continuous Geared Hinge
Hager Roton 780-054HD 79" Half Surface Heavy Duty Continuous Geared Hinge, The 780-054HD Features Frame leaf alignment rib for proper hinge location, And Security molding And Has a 1/8" (3 mm) inset
Specifications
Materials:
Aluminum 6063-T6
Clearance:
5/32" (4 mm) minimum recommended hinge side Plus standard lockside clearance
Fasteners:
Drill-Kwik ® screws and sex bolts
Length:
79" (2007 mm)
Door Reinforcement:
None required
Frame Reinforcement:
None required
Fire Rating:
Up to 3 hr. metal and 90 min. wood composite(with screws) When ordering, must specify if UL stamp is required
Warranty:
All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty
