Description

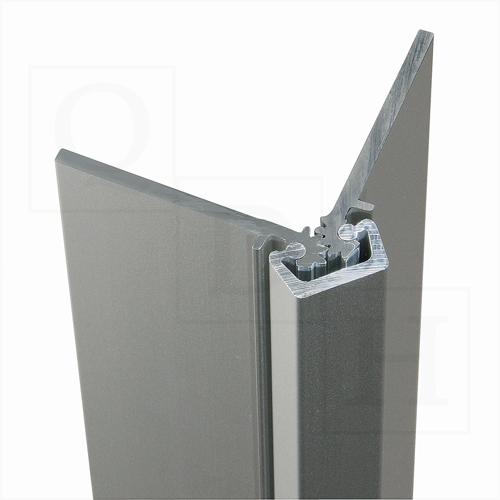

Hager Roton 780-112-79 Concealed Leaf Standard Duty Tamper Resistant Continuous Geared Hinge
Hager Roton 780-112-79 Concealed Leaf Standard Duty Tamper Resistant Continuous Geared Hinge Features
| : | - Lead lined model for hospital x-ray room doors with a double row of screws to straddle lead (specify "LL") - Frame and door leaf alignment ribs for proper hinge and door location |
- This application is intended for use in hospital psychiatric areas and places of high security. The hinge is prepared with a hospital tip and every other bearing is supplied with a set screw to lock against the inside of the cover channel for additional security
- Tamper Resistant Hinge with Security Torx Fasteners
- Frame and door leaf alignment ribs for proper hinge and door location
Specifications
| Materials: | Aluminum 6063-T6 |
| Clearance: | 5/16" (8 mm) hinge side Plus standard lockside clearance |
| Fasteners: | Drill-Kwik ® screws and sex bolts |
| Length Options: | 79" (2007 mm) |
| Door Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
| Frame Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
| Fire Rating: | Up to 3 hr. metal and 90 min. wood composite(with screws) When ordering, must specify if UL stamp is required |
| Warranty: | All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty |
| Manufacturer: | Hager |
