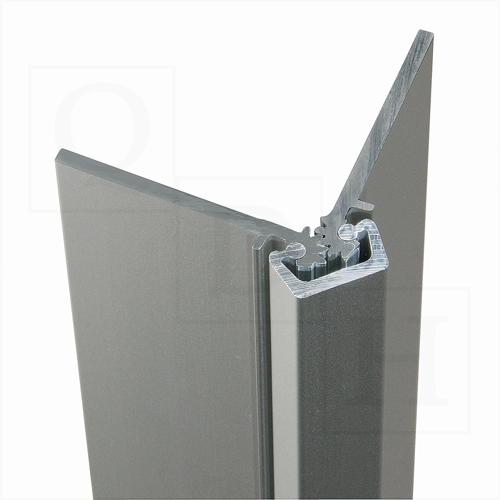

Hager Roton 780-112 Concealed Leaf Standard Duty Tamper Resistant Continuous Geared Hinge - 83"
Standard Duty Concealed Leaf Hinge
The Hager Roton 780-112 is an 83-inch continuous geared hinge featuring a concealed leaf design. It offers standard duty performance with tamper-resistant construction, ensuring reliable security and durability for commercial door applications.
Features
- This application is intended for use in hospital psychiatric areas and places of high security. The hinge is prepared with a hospital tip and every other bearing is supplied with a set screw to lock against the inside of the cover channel for additional security
- Tamper Resistant Hinge with Security Torx Fasteners
- Frame and door leaf alignment ribs for proper hinge and door location
Specifications
| Materials: |
Aluminum 6063-T6 |
| Clearance: |
5/16" (8 mm) hinge side
Plus standard lockside clearance |
| Fasteners: |
Dril-Kwik ® screws and sex bolts |
| Length Options: |
83" (2108 mm) |
| Door Reinforcement: |
None required to 200 lbs. Heavier weight use 16-gauge channel |
| Frame Reinforcement: |
None required to 200 lbs. Heavier weight use 16-gauge channel |
| Fire Rating: |
Up to 3 hr. metal and 90 min. wood composite(with screws)
When ordering, must specify if UL stamp is required |
| Warranty: |
All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty |
| Manufacturer: |
Hager |
