Hager Roton 780-112HD Concealed Leaf Heavy Duty Tamper Resistant Continuous Geared Hinge - 79"

  • SKU: 780112HD79CLRULFF

Hager Roton 780-112HD Concealed Leaf Heavy Duty Tamper Resistant Continuous Geared Hinge - 79"

  • SKU: 780112HD79CLRULFF
Sale price$225.59/ea
In Stock
In Stock
Hager Finish: -CLR, Clear Anodized Satin Aluminum
Hager Hinge Tip: Standard
Hager Fire Rating: -UL-FF, Fire Rated (UL Stamp)
Visa Mastercard American Express Discover Shop Pay Apple Pay

Hager Roton 780-112HD Concealed Leaf Heavy Duty Tamper Resistant Continuous Geared Hinge - 79"

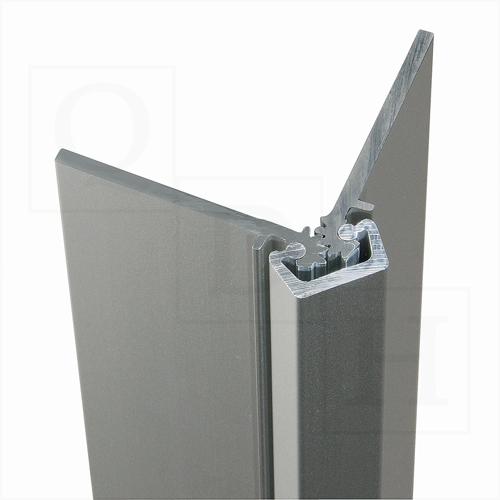

Heavy Duty Concealed Leaf Hinge


Features

  • This application is intended for use in hospital psychiatric areas and places of high security. The hinge is prepared with a hospital tip and every other bearing is supplied with a set screw to lock against the inside of the cover channel for additional security
  • Tamper Resistant Hinge with Security Torx Fasteners
  • Frame and door leaf alignment ribs for proper hinge and door locator

Specifications

Materials: Aluminum 6063-T6
Clearance: 5/16" (8 mm) hinge sid
Plus standard lockside clearance
Fasteners: Drill-Kwik ® screws
Length Options: 79" (2007 mm)
Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Fire Rating: Up to 3 hr. metal and 90 min. wood composite(with screws)
When ordering, must specify if UL stamp is required
Warranty: All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager

Continuous Hinge Handing Chart
