Hager Roton 780-112HD Concealed Leaf Heavy Duty Tamper Resistant Continuous Geared Hinge - 83"

  • SKU: 780112HD83CLRULFF
Hager 780-112HD-83
Hager 780-112HD-83
All HAGER Products

Hager Roton 780-112HD Concealed Leaf Heavy Duty Tamper Resistant Continuous Geared Hinge - 83"

  • SKU: 780112HD83CLRULFF
$225.59/ea
In Stock
In Stock
Hager Finish: CLR Clear Anodized Satin Aluminum
Hager Hinge Tip: Standard
Hager Fire Rating: UL-FF Fire Rated (UL Stamp)

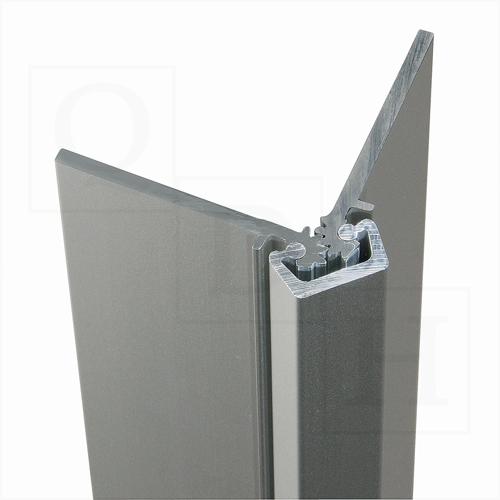

Hager Roton 780-112HD Concealed Leaf Heavy Duty Tamper Resistant Continuous Geared Hinge - 83"

Heavy Duty Concealed Leaf Hinge

Features

  • This application is intended for use in hospital psychiatric areas and places of high security. The hinge is prepared with a hospital tip and every other bearing is supplied with a set screw to lock against the inside of the cover channel for additional security
  • Tamper Resistant Hinge with Security Torx Fasteners
  • Frame and door leaf alignment ribs for proper hinge and door locator

Specifications

Materials: Aluminum 6063-T6
Clearance: 5/16" (8 mm) hinge sid
Plus standard lockside clearance
Fasteners: Drill-Kwik ® screws
Length Options: 83" (2108 mm)
Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Fire Rating: Up to 3 hr. metal and 90 min. wood composite(with screws)
When ordering, must specify if UL stamp is required
Warranty: All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager
Product Cut Sheet

Continuous Hinge Handing Chart
