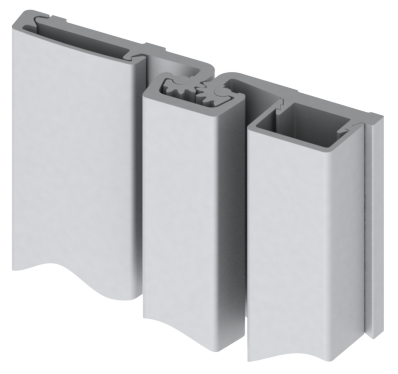

Hager Roton 780-157 Full Surface Standard Duty Continuous Geared Hinge - 79"

  • SKU: 78015779CLRULFF
Hager 780-157-79
Hager 780-157-79
780-157-79
780-157-79 Hinge
All HAGER Products

Hager Roton 780-157 Full Surface Standard Duty Continuous Geared Hinge - 79"

  • SKU: 78015779CLRULFF
  • ✓
    In Stock
    In Stock
Your Price
$231.48/ea
Hager Finish: CLR Clear Anodized Satin Aluminum
Hager Fire Rating: UL-FF Fire Rated (UL Stamp)

Hager Roton 780-157 Full Surface Standard Duty Continuous Geared Hinge - 79"Standard Duty Full Surface Hinge



Features

  • For surface applications where frame face dimension is limited
  • Security moldings
  • 1/16" (1.5 mm) inset

Specifications

Materials: Aluminum 6063-T6
Clearance: 1/32" (1 mm) minimum recommended for hinge side
Plus standard lockside clearance
Fasteners: Dril-Kwik ® screws and sex bolts
Length: 79" (2007 mm)
Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs)
When ordering, must specify if UL stamp is require
Door Reinforcement: None required to 200 lbs
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Warranty: All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager

Certifications

cULus: cULs Listed
Product Cut Sheet

Continuous Hinge Handing Chart
