Description

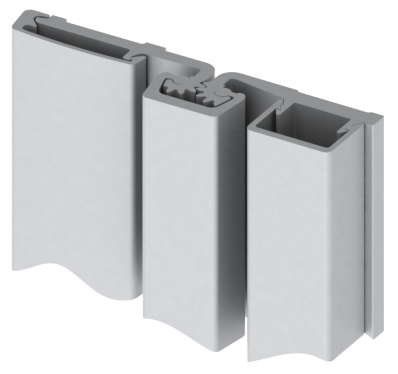

Hager Roton 780-157HD Full Surface Heavy Duty Continuous Geared Hinge - 83"Heavy Duty Full Surface Hinge
Features
- For surface applications where frame face dimension is limited
- Security moldings
- 1/16" (1.5 mm) inset
Specifications
| Materials: | Aluminum 6063-T6 |
| Clearance: | 1/32" (1 mm) minimum recommended for the hinge side Plus standard lockside clearance |
| Fasteners: | Standard: #12 - 24 x 11/16" self drilling pan head machine screw 1/4" - 20 thru bolts for 1-3/8" - 1-3/4" doors |
| Length: | 83" (2108 mm) |
| Fire Rating: | Up to 3 hr. metal and 90 min. wood composite (with studs) When ordering, must specify if UL stamp is required |
| Door Reinforcement: | None required to 200 lbs |
| Frame Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
| Warranty: | All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty |
| Manufacturer: | Hager |
