Hager Roton 780-210-79 Full Surface Standard Duty Continuous Geared Hinges - 79"

  • SKU: 78021079CLRULFF
Hager 780-210-79
Hager 780-210-79
780-210-79
780-210-79 Hinge
Zoomed view
All HAGER Products

Hager Roton 780-210-79 Full Surface Standard Duty Continuous Geared Hinges - 79"

  • SKU: 78021079CLRULFF
  • ✓
    In Stock
    In Stock
Your Price
$265.34/ea
Hager Finish: CLR Clear Anodized Satin Aluminum
Hager Fire Rating: UL-FF Fire Rated (UL Stamp)

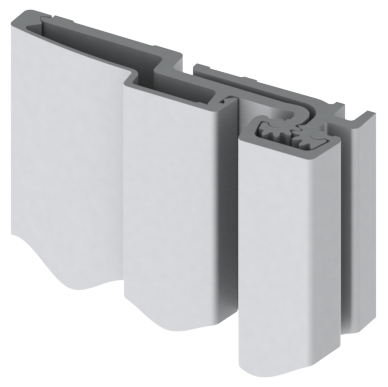

Hager Roton 780-210 Full Surface Standard Duty Continuous Geared Hinges - 79"

Standard Duty Full Surface Hinge

Features

  • Can be used with any door and frame material
  • Security molding
  • 1/32" (1 mm) inset

Specifications

Materials: Aluminum 6063-T6
Clearance: 1/32" (1 mm) minimum recommended for the hinge side
Plus standard lockside clearance
1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance
Fasteners: Drill-Kwik ® screws and sex bolts
Length: 79" (2007 mm)
Door Reinforcement: None required to 200 lbs
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Fire Rating: Up to 3 hr. metal and 90 min. wood composite(with screws)
When ordering, must specify if UL stamp is required
Warranty: All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager
Product Cut Sheet

Continuous Hinge Handing Chart
