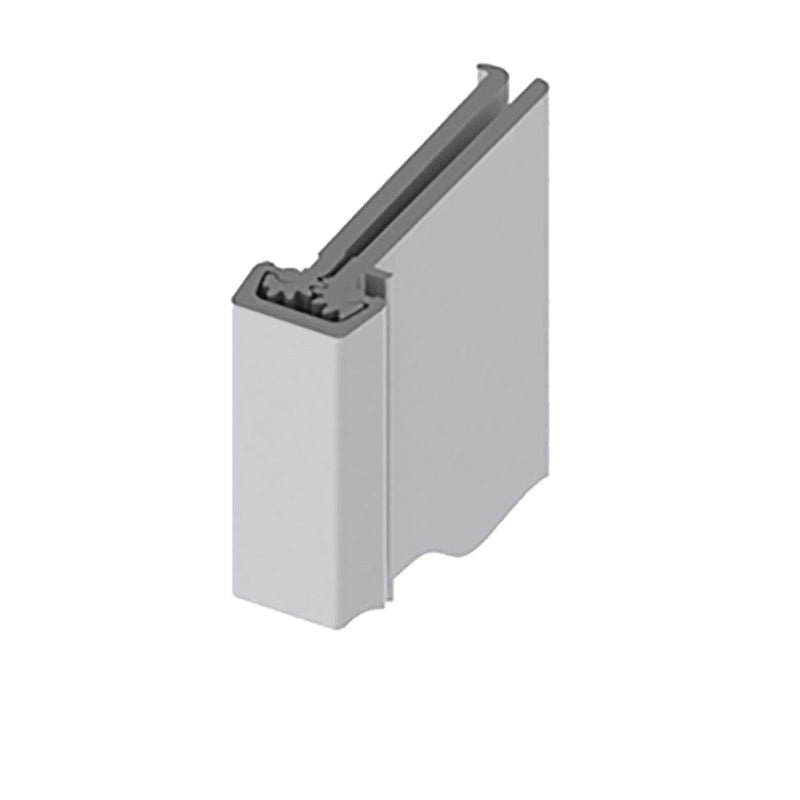

Hager Roton 780-224HD-83-CRL
Hager Roton 780-224HD-83-DBA
Hager Roton 780-224HD-83-CRL
Hager Roton 780-224HD-83-DBA
All HAGER Products

Hager Roton 780-224HD Concealed Leaf Heavy Duty Continuous Geared Hinge - 83"

  • SKU: 780224HD83CLRULFF
$229.42/ea
In Stock
In Stock
Hager Finish: CLR Clear Anodized Satin Aluminum
Hager Hinge Tip: Standard
Hager Fire Rating: UL-FF Fire Rated (UL Stamp)

Hager Roton 780-224HD Concealed Leaf Heavy Duty Continuous Geared Hinge - 83"

Heavy Duty Concealed Leaf Hinge

Features

  • Door edge protection lip
  • Frame leaf alignment ribs for proper hinge and door location
  • 3/32" (2 mm) inset

Specifications

Materials: Aluminum 6063-T6
Clearance: 5/16" (8 mm) hinge side
Plus standard lockside clearance
Fasteners: Drill-Kwik ® screw
Length: 83" (2108 mm)
Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs)
When ordering, must specify if UL stamp is required
Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Warranty: All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager

Certifications

cULus: cULs Listed
ANSI: ANSI 156.26 for A31031G
