HES 4500 Series Electric Strike

  • SKU: 4500C1224VDC630
Sale price$528.00/ea
In Stock
In Stock
Function: '-Standard
Visa Mastercard American Express Discover Shop Pay Apple Pay

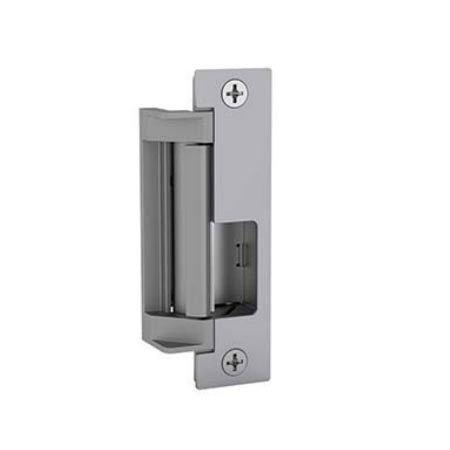

HES 4500 Series - HES Electric Strike
The 4500 Series is the first electric strike designed for installation in 2" UL 10C fire-rated frames with ½" drywall penetration. The 4500 electric strike features a low profile 1-3/8" depth, heavy-duty cast stainless steel construction and two interchangeable faceplates designed to accommodate a variety of locksets for simple installation. Its strength is derived from a unique keeper pin locking design, enabling the 4500 to exceed the ratings of the frame, door and locking hardware. Designed for use with cylindrical and mortise locksets up to a 3/4" throw.

HES 4500 Series Functions
Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.

Features and Benefits
:
- Stainless steel construction.
- Tamper resistant.
- Static strength 3000 lbs.
- Dynamic strength 100 ft.-lbs.
- Endurance 1,000,000 cycles.
- Field selectable fail safe/fail secure.
- Dual voltage 12 or 24 VAC/VDC.
- Two faceplates provided to accommodate a variety of locksets.
- Non-handed.
- Internally mounted solenoid.
- Accommodates up to a 3/4" latch bolt.
- Strike body depth 1-3/8".
- Plug-in connector.
- Trim enhancer.
- Full keeper shims for horizontal adjustment.
- Frame application: Metal & Wood.
- Available in Satin Stainless Steel (630), Brass (605), Satin Brass (606), Satin Bronze (612), Bronze Toned (613) & Bright Stainless Steel (629) finish.

Specification Data:

- UL 10C fire-rated, 3 hour (fail secure only).
- UL 1034, burglary-resistant listed.
- ANSI/BHMA A156.31, Grade 1.

Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only
