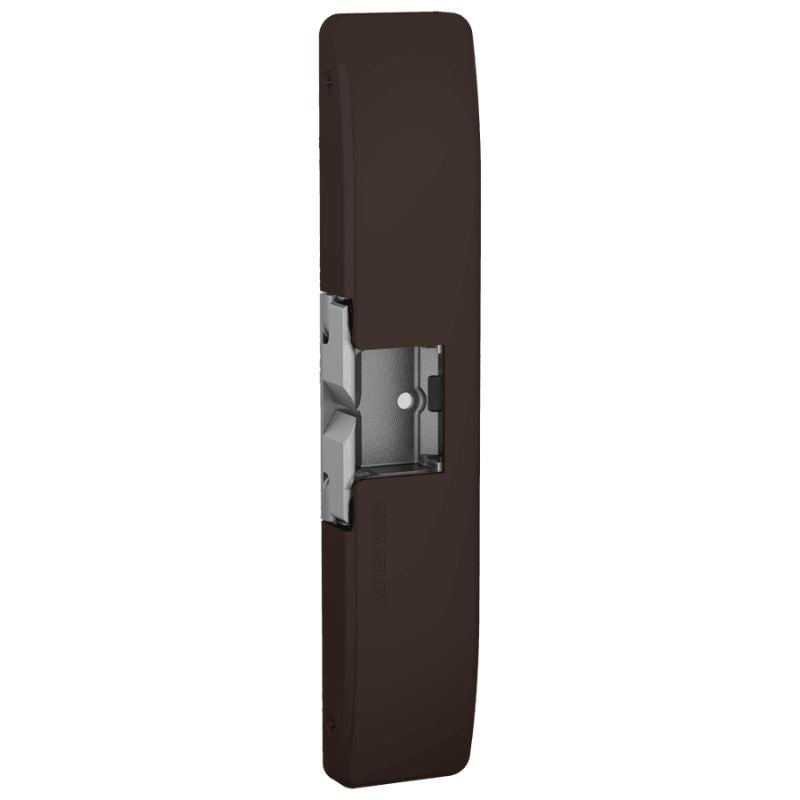

HES 9600-613 Rim Panic Device Electric Strike, Surface Mounted, 3/4" Thickness, Fail Safe/Fail Secure 12/24VDC Bronze Toned Finish

The HES 9600-613 Rim Panic Device Electric Strike features a bronze toned finish and can be mounted on surfaces with a thickness of 3/4". It can function as both fail safe and fail secure and operates on 12/24VDC.

The HES 9600 Series Electric Strike is designed to be both windstorm resistant and easily mountable on the surface of the door frame. This series is specifically engineered to work with rim exit devices that have a 3/4" throw Pullman latchbolt. One of the key features is that all its components are fully enclosed within a 3/4" thick stainless steel housing, eliminating the need for any frame cutting during installation. Simply position the electric strike on the frame's surface, align it with the exit latchbolt, and secure it in place.

Additionally, the design has been optimized for easier adjustments, with the base now separate from the cover. This strike is also versatile, being field selectable for either fail-secure or fail-safe operation and can be adjusted for 12 or 24 VDC power inputs. This makes it a highly adaptable solution suitable for a variety of security needs.

Frame Application

• Metal
• Wood

Electrical Features

• .45 Amps at 12VDC* continuous duty
• .25 Amps at 24VDC* continuous duty

Standard Features

• Installs in metal or wood frames
• Separate base and cover for easy adjustments
• Stainless steel construction
• Tamper resistant
• Static strength 2,000 lbs.
• Dynamic strength 120 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Dual voltage 12 or 24 VDC
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 3/4" Pullman latch
• Five-year limited warranty
